Daily Shut Down Procedure

How to perform a Daily Shut Down Procedure

Learn how to perform properly the shut down procedure of the PreTreater Pro machine by involving the auto cleaning feature.

YouTube Play Icon with no background

Daily Shut Down Procedure

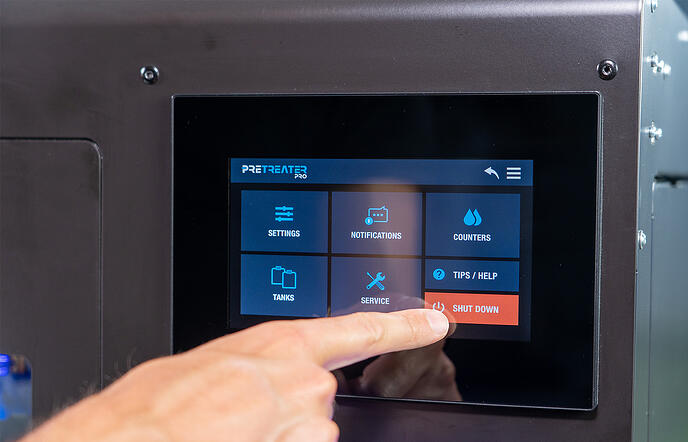

  • Step 1: To shut down the machine, tap on the Menu button and next, tap Shut Down.
Polyprint Pretreater Pro Screen
  • Step 2: In the prompt message, saying “Proceed with cleaning before Shut Down?” you can either choose Yes or No.
Polyprint Pretreater Pro Screen

Note: If you choose “No” the machine will shut down without emptying the tubes from the pretreatment liquid that you have been using. We strongly recommend proceeding with an automatic cleaning prior shutting down the machine, as this way the tubes will be filled with cleaning solution, preventing any kind of unwanted clogging or sedimentation.

  • Step 3: After you perform the cleaning, open the Nozzle Access Cover and pull out the Nozzle Carriage. Remove and disassemble each of the 4 nozzles, following the steps below:

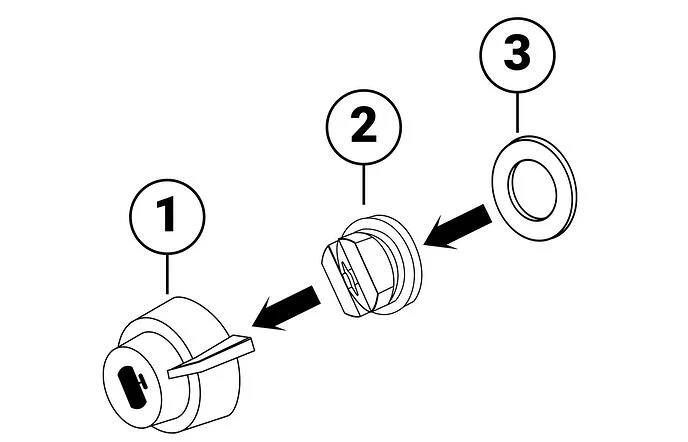

    – Turn the nozzle assembly 90 degrees anti-counterclockwise and remove it from the carriage.

    -Push the nozzle through the blue nozzle holder. Remove the nozzle and the O ring.

Polyprint Pretreater Pro Daily Shut Down Procedure Diagram

Caution: Remember to leave the Nozzle Access Cover open. If its closed and the screen is on (activated), by default the Nozzle Refresh is activated, meaning that the nozzles will spray every 30 minutes (or the according time you have set).

  • Step 4: Fill the ultrasonic device with distilled water and place only the nozzles into the device. Start the cleaning process for about a minute.

Note: If you want to perform manually the Shut Down maintenance you can do it by tapping on the CL tank.
