Daily Liquid Check

• Step 1: Open the Tank Compartment Cover.
• Step 2: Check the pretreatment liquid level in the L1, L2, CL tanks. If needed, refill them or replace them with new ones.

• Step 3: Empty the Maintenance Tank from the waste.

Daily Wake Up

• Step 1: Assemble correctly the nozzles following the steps below:

  -Take the 4 nozzles out of the ultrasonic device.

  -Insert the nozzles inside the blue nozzle holder.

  -Position the black gasket inside the blue nozzle holder and push it in place to tighten.

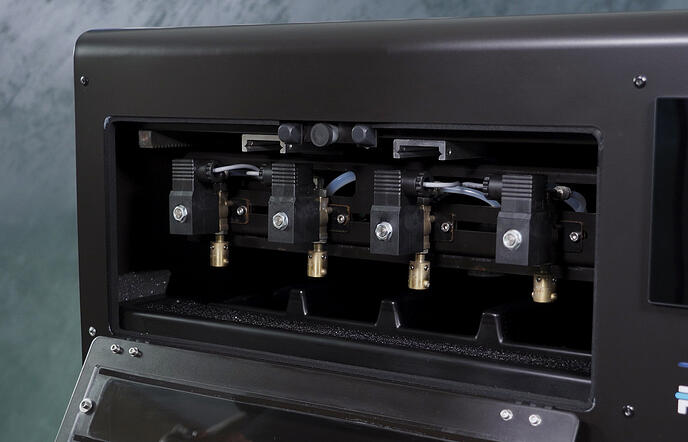

• Step 2: Open the Nozzle Access Cover and pull out the Nozzle Carriage for better access.

• Step 3: Attach the nozzle assembly to the Nozzle Carriage and turn it 90 degrees counterclockwise, to lock it in position.

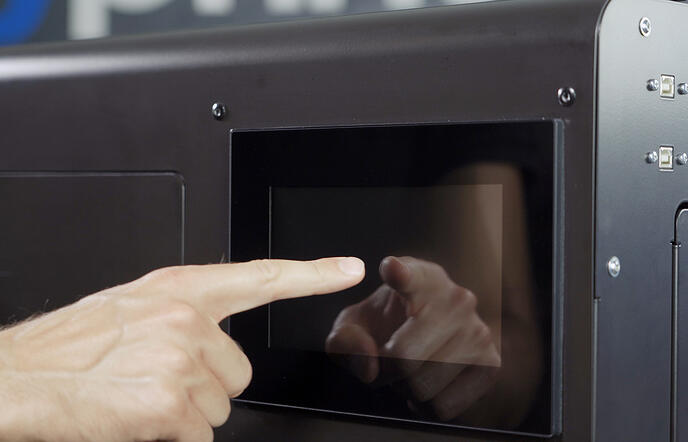

• Step 4: Initiate the machine by taping on the touchscreen.

• Step 5: Select the tank you want to use and carry on with your production.
