Top DTF Printer Maintenance Tips for Blocked Nozzles
Discover the essential tips to keep your DTF printer running smoothly and efficiently, even when faced with blocked nozzles.
Understanding Film Printer Mechanics and The Need for Regular Maintenance
A DTF printer is a powerful addition to your garment decoration business, giving you complete control over your digital transfer production. The ability to print transfers on demand—whenever and in whatever quantity your customers need—can give you a significant edge over your competitors. But it’s no good if your printer is subject to downtime and maintenance issues.
To achieve success in DTF printing, regular maintenance is crucial. Printers that are well-maintained consistently produce higher quality prints, which enhances customer satisfaction and encourages repeat business and faster more efficient production.
Maintenance is required to ensure the printheads function at their best. These printheads are intricate pieces of engineering, equipped with hundreds of nozzles that release ink droplets at an astonishing rate of tens of thousands per second. It is vital that all components involved in ink flow operate seamlessly together.
By ensuring your printer remains in optimal condition, you can significantly decrease the likelihood of expensive repairs and replacements. This not only saves you money but also reduces downtime, allowing you to stick to your production schedules.
Blocked Nozzles: Causes and Prevention
When maintenance is overlooked, small problems can quickly escalate. Failing to properly maintain your printer can result in various quality issues, such as banding, uneven, dull or muted colours, and streaks within your prints.
Blocked nozzles can cause ink to accumulate and dry out, leading to more severe complications that are difficult to resolve. By identifying the underlying causes of blocked nozzles, you can take proactive steps to prevent and manage them effectively.
To avoid nozzles clogging in the first place, it is important to recognise the factors that can cause nozzles to block:
- Expired inks – Once inks surpass their expiration date, their chemical makeup can alter, affecting their fluidity and potentially causing blocked nozzles.
- Improper maintenance – Failure to maintain the printer according to the manufacturer’s guidelines can lead to a build-up of dried ink. This can prevent the printhead from sealing properly, allowing air into the system resulting in blocked nozzles. A build-up of ink on the wiper can push dried ink particles into the nozzles.
- Environmental conditions – Operating the printer outside of recommended specification can change the viscosity of the ink, which may cause nozzles to clog. Low humidity can contribute to the drying out of the printhead.
- Infrequent use – If a printer is left unused or idle for extended periods you run the risk of the print head nozzles drying out, even with white ink recirculation.
Regular Cleaning: The Key to Longevity
Neglecting regular maintenance on DTF printers can lead to increased ink and material consumption due to inefficiencies, ultimately driving up operational costs. Using and maintaining your printer regularly ensures that ink does not have the chance to dry and clog the nozzles.

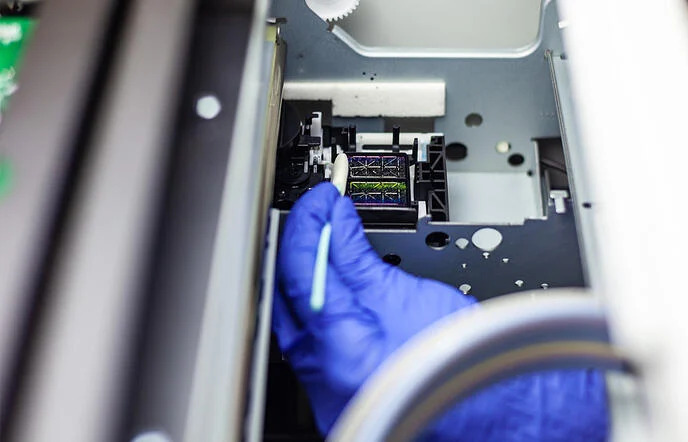

During the printing process, it’s common for ink residue and fibres to build up around the wet parts, especially after multiple prints. It is essential to manually clean and maintain key components, including the capping station, wiper, and printhead.
Accumulated dried ink can prevent the print head from capping correctly, causing clogged nozzles and air in the system. Similarly, a dirty wiper blade can hinder the effective cleaning of the Printhead and may also push dried particles into the nozzles.
To maintain optimal performance and keep your printer’s nozzles clear, it’s important to implement a consistent cleaning routine that includes both daily and weekly tasks. Regular maintenance not only extends the lifespan of your printer but also minimises the chances of unexpected breakdowns.
Print a nozzle test page daily to ensure smooth ink flow. This will confirm that ink is flowing properly through all nozzles. Once a week, take the time to clean the exterior of your printer for any loose debris that may have accumulated. Use the built-in cleaning function frequently to prevent blockages, and perform routine inspections of all components, especially wet parts, for wear. Establish a daily routine with a morning wake-up procedure and an evening maintenance session to keep your printer running smoothly.
For detailed maintenance instructions, please refer to your printer’s manual provided by the manufacturer.
Troubleshooting Blocked Nozzles
If you experience missing nozzles, it is important to recognise the different types, as each may have distinct causes.
Deflecting nozzles – This is when the nozzle check pattern appears complete, but the individual lines are not parallel. This misalignment can lead to banding in prints.
Deflecting nozzles are usually an indication that there is dried ink somewhere around the capping station, wiper blade or on the surface of the printhead. It is crucial to remove any build up and perform regular cleaning cycles on your printer. Running a head soak is an effective way to loosen up any dried ink on the printhead surface.

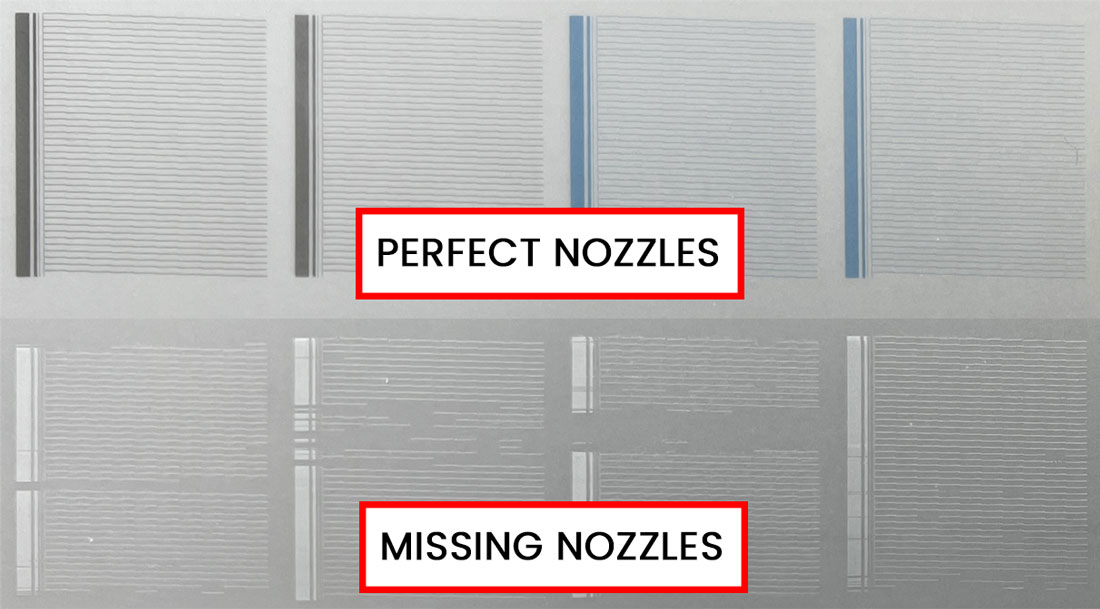

Missing nozzles – This is when there are gaps in the nozzle check pattern. If there are only a few missing nozzles, there’s a good chance that this will not affect print quality, and they will recover during regular printing.
As a general guideline, here are some basic steps to follow if you experience missing nozzles. However, additional checks may be necessary depending on the type of nozzle issues you have:
- Review the environmental conditions
- Check the ink expiry dates
- Inspect the manual maintenance, capping station, wiper blade and surrounding areas of the printhead
- Run a series of head cleans, each followed by a nozzle check to monitor progress. The number or type of missing nozzles will influence the head cleaning method you choose.
If you notice a considerable number of missing nozzles, follow the steps mentioned above. If you’re unable to achieve a perfect nozzle check, compare the different patterns you’ve printed.
If the same nozzles are consistently missing, this likely indicates a blocked nozzle, which might be recoverable with a head soak using a cleaning solution.
If the missing nozzles vary with each test print, it may be time to replace the damper, a filter located above the printhead.
Advanced Cleaning Techniques for Stubborn Blockages
When faced with persistent nozzle issues, it’s important to troubleshoot systematically. Start by consulting your printer’s manual for any specific troubleshooting recommendations provided by the manufacturer. If you find that stubborn blockages remain after regular cleaning, more advanced techniques may be necessary.
For completely missing channels, you need to determine whether the issue originates from below or above the print head.

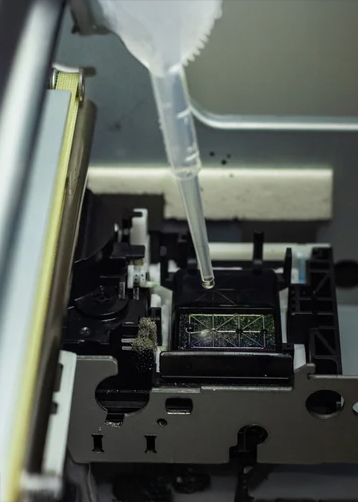

First, ensure that the capping station is effectively pumping cleaning solution away. If it isn’t functioning properly, a replacement pump may be necessary, as these components can wear out over time. This is positioned below the printhead.
On the other hand, if the capping station appears to be working correctly, check that your ink tanks are adequately filled and inspect for any ink sediment buildup in the tanks that could obstruct ink flow; this situation would be considered an issue above the print head.
In cases where a more thorough cleaning is required, performing an ink charge can be a powerful solution, but at Amaya, we recommend using this method sparingly. This is because the process can exert considerable strain on the printhead, which may lead to premature failure. It’s also wise to consult your supplier for the best procedures tailored to your specific machine model, as recommendations can differ
Despite your best efforts, there may be times when nozzle blockages persist. Ongoing issues could indicate a more serious problem with the printer’s hardware. If you have tried multiple cleaning methods without success, it may be time to consult a professional technician. A professional can diagnose and fix the issue, saving you time and preventing further damage.
Don’t hesitate to seek expert assistance when needed to protect your investment.
Tips for Long-Term Care and Nozzle Preservation
The success of DTF printing is also influenced by the environmental conditions in your printing area. Factors like temperature and humidity can affect the drying time of the ink and the adhesion of the print to the fabric. To achieve consistent and high-quality results, it is important to maintain a controlled environment.
It is recommended to adjust the temperature according to the manufacturer’s guidelines for the ink and fabric you are using. Likewise, keep the humidity within an optimal range to avoid problems such as ink bleeding or inadequate adhesion. To help monitor these conditions, consider investing in a temperature and humidity monitor to ensure that the environment remains ideal for DTF printing.
Other preventative measures to consider for long-term care of your printer include:
- Regularly using your printer to prevent ink from drying and clogging the nozzles.
- Adhering to the manufacturer’s maintenance guidelines.
- Establishing and following a consistent maintenance routine to keep your printer in good condition.
- Taking advantage of the built-in cleaning cycles that modern printers offer and make it a habit to run these cycles periodically.
- Conducting regular inspections to identify any potential issues early, which can help avoid more significant and costly problems down the line.
- Utilising manufacturer-recommended inks and materials is crucial. Always opt for high-quality ink and compatible cartridges, as low-quality ink may contain impurities that contribute to clogging.
- Only use cleaning products recommended by the manufacturer to avoid damaging sensitive components.
- Store your printer in a clean, dust-free environment to minimise debris accumulation.
- When not in use, store your printer properly, ensuring that nozzles are capped to prevent the Printhead from drying out.
- Keep detailed records of maintenance activities to track performance and predict when parts may need attention.
- Train all your operators on proper printer operation and maintenance techniques to reduce the likelihood of user-related errors.
- Familiarise yourself and the operators with your DTF printer’s warranty cover. The terms can vary based on the retailer from whom you purchased it, and certain actions or non-compliance may void the warranty. Being unaware of these details could lead to unexpected costs in the future.
- Consider scheduling professional servicing at regular intervals to ensure all aspects of the printer are thoroughly checked and maintained.
- Building a relationship with a reliable service provider for your printer can provide you with timely support and advice when needed.
By following these tips, you can ensure the longevity and optimal performance of your DTF film printer.
