TexJet Shortee2: Unboxing & Installation

A detailed process of how to unbox properly and install accurately the TexJet Shortee2 printer.

When in operation, the printer builds up ink residue and even fibres are gathered after multiple prints. The parts that are more often subjected to this are the printhead, the wiper and the capping station, therefore they should be inspected frequently.

Daily maintenance should be performed at the end of each production day, after the printing is finished, in order to clean those specific compartments and ensure that they operate properly for future use. If you plan to leave the printer idle for a few days or up to a full month, then Weekend Maintenance should be performed.

Unboxing the Printer


  • Step 1: Remove the top carton cover of the carton box that contains the printer.
  • Step 2: Firstly, remove what is included inside the box, secondly the cardboard honeycomb sheets and at the end the side carton cover.

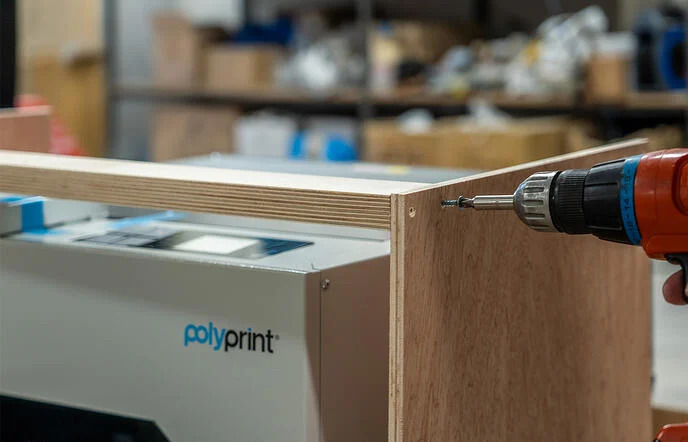

  • Step 3: With a standard screwdriver, remove the protective wooden structure.
Shortee2 Unboxing and Installation
  • Step 4: Once the printer is revealed, lift it up by using the handles beneath the TexJet Shortee2 Lift it and position it carefully on the suitable chosen surface. It is important to use four people to lift the printer or maybe two strong ones.
  • Step 5: Printer box. Inside this box you will find a smaller one compartments box, nine labeled and two non-labeled refillable cartridges.
  • Step 6: Compartments box. Opening out the box, you will find apart from the user manuals the below consumables:

    1 emergency stop button, 5 funnels, 5 syringes with adaptors, 1 USB software dongle, 1 USB installation drive, 1 power cable, 1 ethernet cable, 1 USB cable, 5 transparent nozzle sheets, 1 pipette and 2 swabs.

  • Step 7: Platen box. This box contains the standard 27x40cm (10.6″x15.7″) snap on platen and its corresponding frame.

Tip: Place them all on a white surface, so you can later have the chance to double-check them.

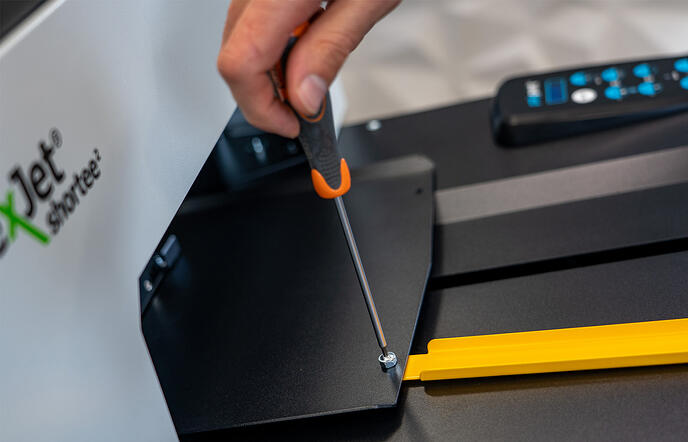

  • Step 8: Remove the yellow safety bar and store it at a safe place. First remove the first screw and then just pull out the tower out really slowly. Once you pull out the tower you need to remove the second screw and you’re done.
Shortee2 Unboxing and Installation

Note: Remember do not throw the safety bar away. You will need it in case of transporting the printer.

  • Step 9: After that you will need to remove the blue security tapes from the TexJet Shortee2.

Printer Setup

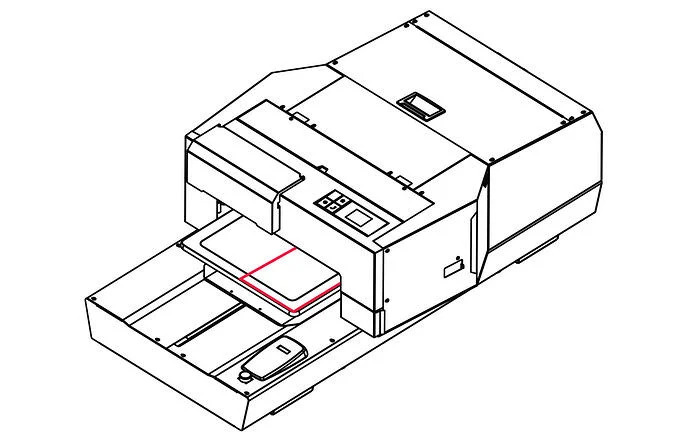

  • Step 1: Attach the snap on platen on to the TexJet shortee2. Once you do it smoothly, remove the blue security tapes.

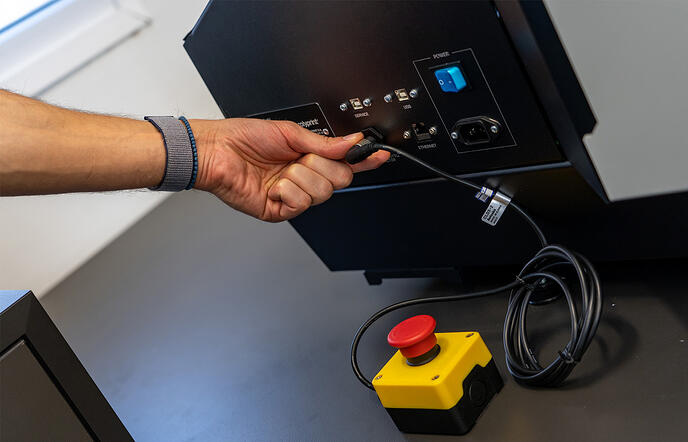

  • Step 2: Connect the emergency stop button on the left side of the printer and afterwards the power cord.
Shortee2 Unboxing and Installation

Caution: Check that the source voltage is the same as the rated voltage, listed on the SN – Rating plate. If the available power source is differ­ent from the TexJet® shortee² AC rating, do not connect it to the power source.

  • Step 3: Turn on the blue switch at the left side of the printer.

Ink Cartridges Installation


  • Step 1: Shake the ink bottles for 1 minute each.

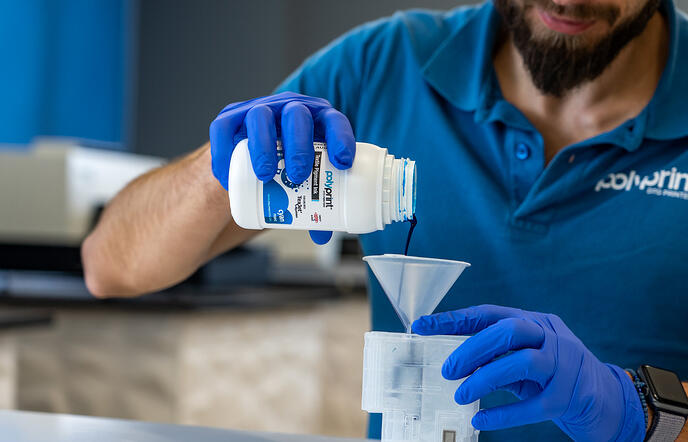

  • Step 2: Remove the rubber seal from each cartridge and use the funnel provided to fill it with its respective ink. Fill them slowly as each cartridge has many chambers.
Shortee2 Unboxing and Installation`

Note: Level must not exceed the max indication on the cartridge side.

  • Step 3: Put back only the rubber seal that holds the ink. Make sure air supply is not sealed.

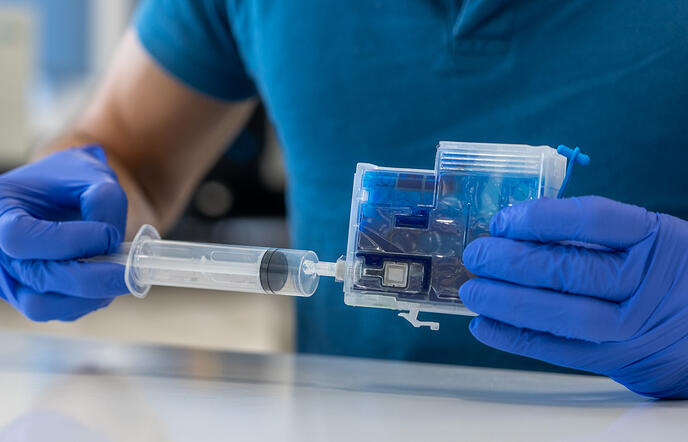

  • Step 4: Use a syringe to remove air from the cartridge filter. Pull ink from the cartridge valve until the cartridge filter is full of ink.
Shortee2 Unboxing and Installation

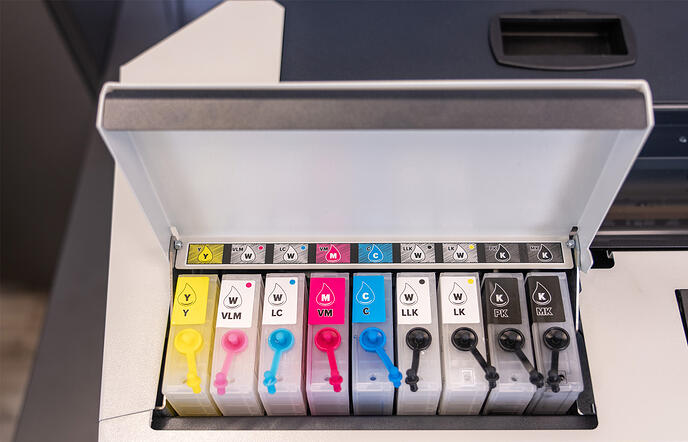

  • Step 5: Install cartridges in the correct socket and close the cover. You need to find the proper configuration and make sure they are gripped properly.
Shortee2 Unboxing and Installation

Power ON


  • Step 1: Press the power button and then follow the instructions on the Platen Control panel to set time, date and temperature format. In the first boot up you will be asked to set the exact time, the date format and then the exact date.

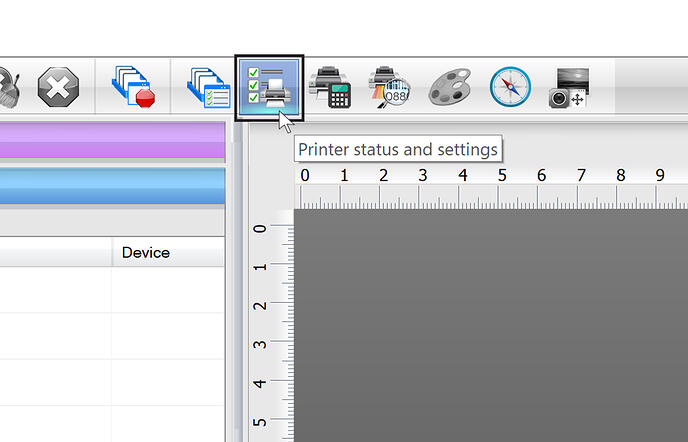

  • Step 4: When the printer is on Ready Sta­tus, connect Texjet® shortee2 from the USB labeled port at the printer, to the PC. Open the Digital Factory Apparel Polyprint Edition and select Printer Status and Settings from the top bar.
  • Step 2: Set the way temperature is displayed, regarding Fahrenheit or Celsius degrees.
  • Step 3: Wait until the table moves to the printing position.
Shortee2 Unboxing and Installation

Note: Follow DFA v10 installation guide for proper installation of the software.

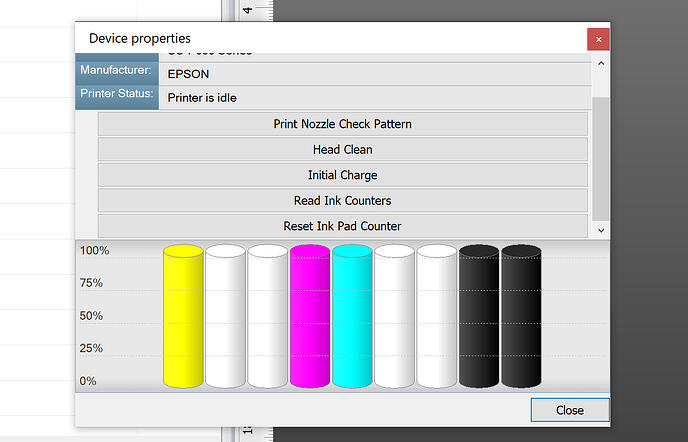

  • Step 5: Click on the Initial Charge to start the Ink charge proce­dure.
Shortee2 Unboxing and Installation

Caution: Ink charge takes about 10 minutes, so do not turn off or unplug the TexJet shortee2 while ink charge is running.

Nozzle Test


  • Step 1: Eject the platen in the starting position.
  • Step 2: Place one of the transparent sheets that come with the printer, on the left side corner of the 27×40 cm (10.6″x15.7″) platen.
Shortee2 Unboxing and Installation
  • Step 3: Although height adjustment is always suggested, either way by pressing the Blue button will send the table inside.
  • Step 4: From the Printhead Control panel tap on the Settings button, then tap Maintenance, Print Head Nozzle Check and Print.
  • Step 5: Once the platen with the transparent sheet comes out, you need to check the pattern. If there are no gaps, nozzles are clean. If there are gaps in the pattern, perform a Head Cleaning. Select the Settings button, tap Maintenance and Print Head Cleaning option.
