Powering Up the Machine

Initial Power Up Sequence

This section will describe how to correctly power up the machine.

Note: If your machine is switched on but will not initialize fully, check the E-stop. If the E-stop is engaged, the motors cannot function to move the machine to a home position and will not allow it to initialize. The machine will give a series of short beeps to indicate that the e-stop is engaged when powering up. If you notice this, simply disengage the e-stop by turning it in the direction of the arrows and releasing the button. The machine will now be allowed to move to the home position and fully initialize.

Video Demonstration:

YouTube Play Icon with no background
  • 1. Make sure that all of the machines are turned off.
  • 2. Make sure the software the software is launched and the Main Screen is being displayed.

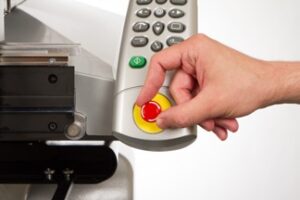

  • 3. Make sure the E-Stop is disengaged by turning it in the direction of the arrows.

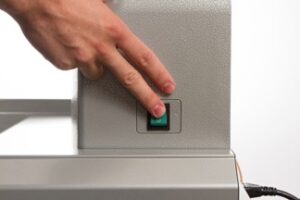

  • 4. Power up the machine with the power switch.
  • 5. The software will load CSA and RSA files to the machine, and the machine will initialize and display on screen.
power up sequence for melco
power up sequence for melco
