Machine Connections Single Source

Connecting the Network Cable (Single Machine)

For a single machine to computer connection, a crossover cable is required. (You can also use 2 Ethernet cables and an Ethernet switch).

  • 1. Connect one end of the crossover cable into the Ethernet jack on the machine.
  • 2. Connect the other end of the crossover cable into the Ethernet jack on the computer. The location of this network connection will vary from computer to computer. If using multiple network cards, it may be helpful to label them on the back of the computer.
  • 3. Move on to Selecting the Connection.

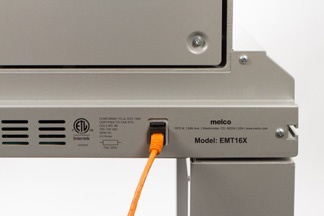

Melco connection cables

Video Demonstration:

YouTube Play Icon with no background
