Description

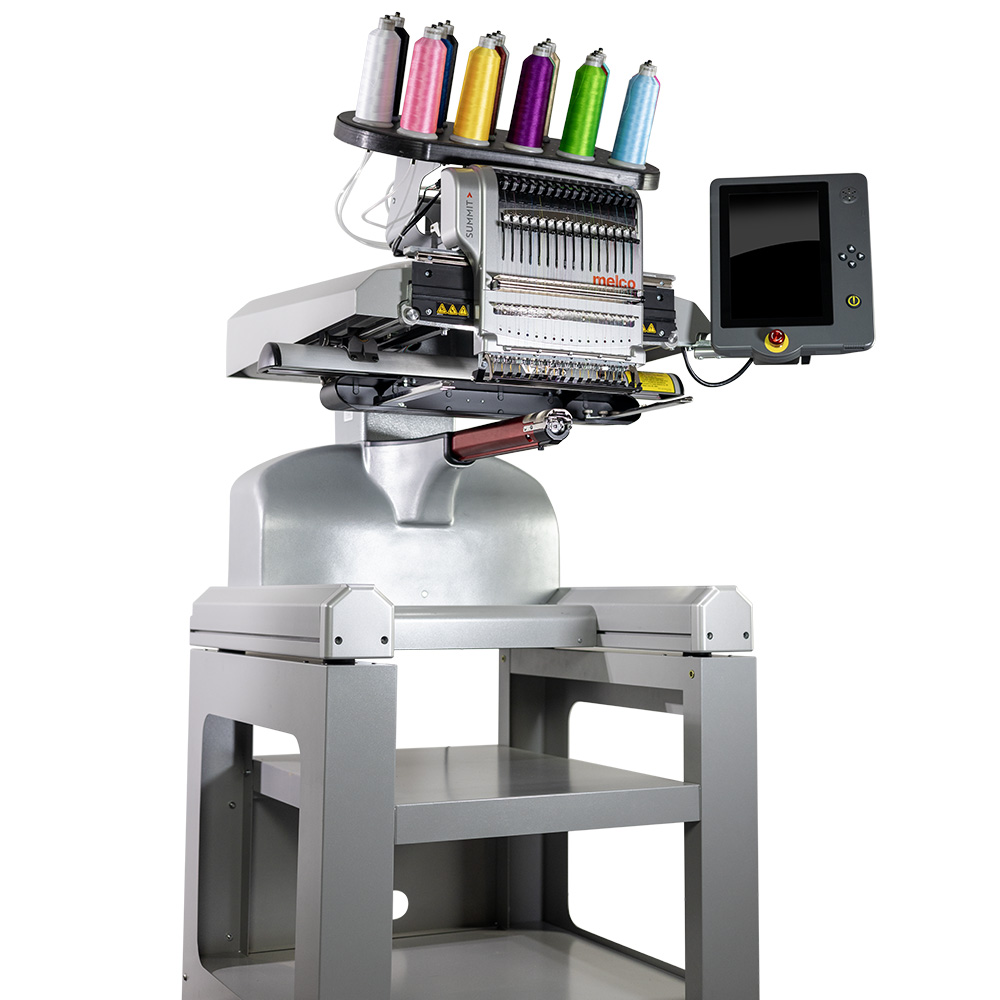

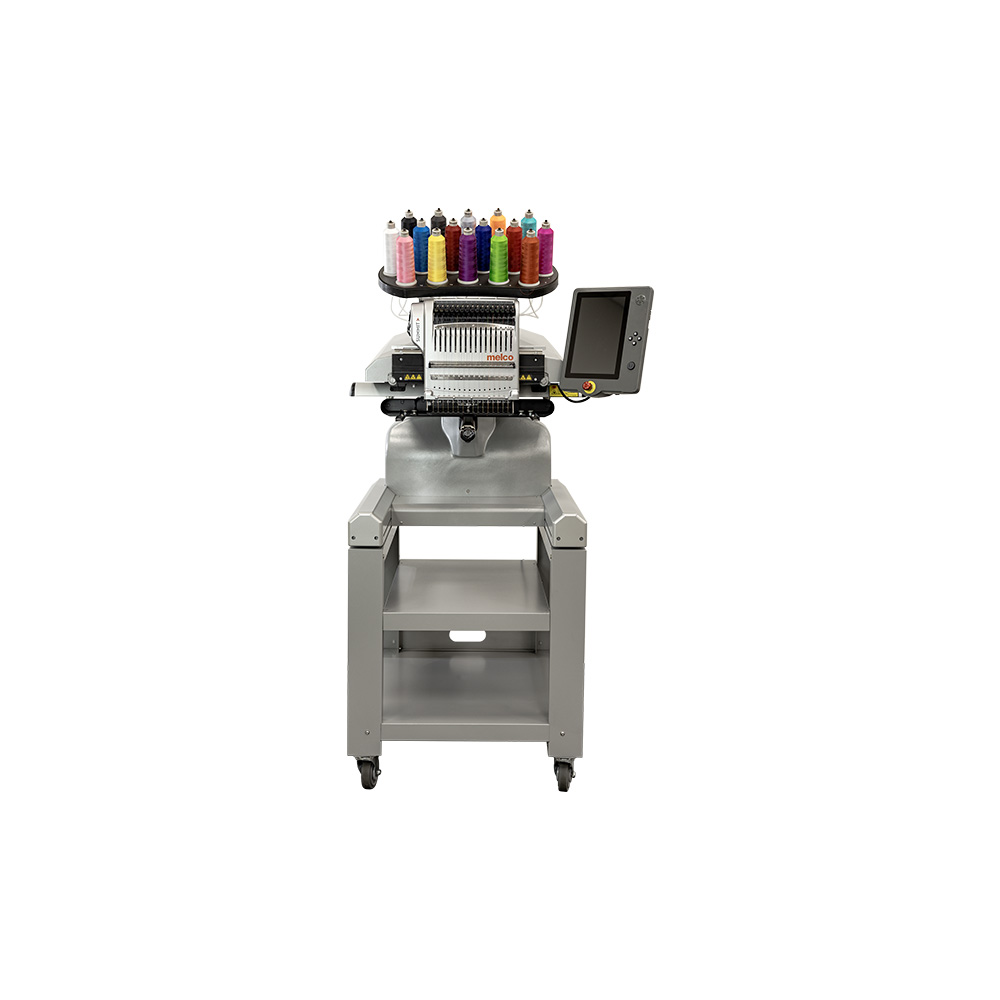

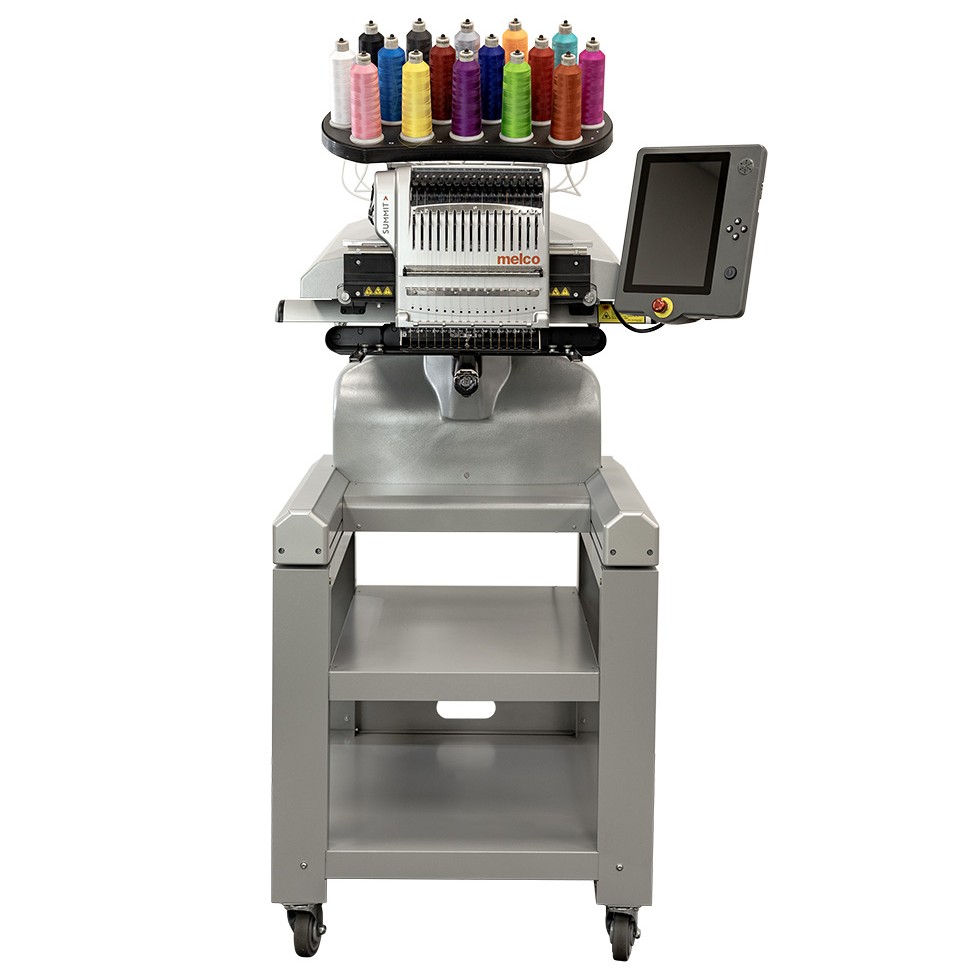

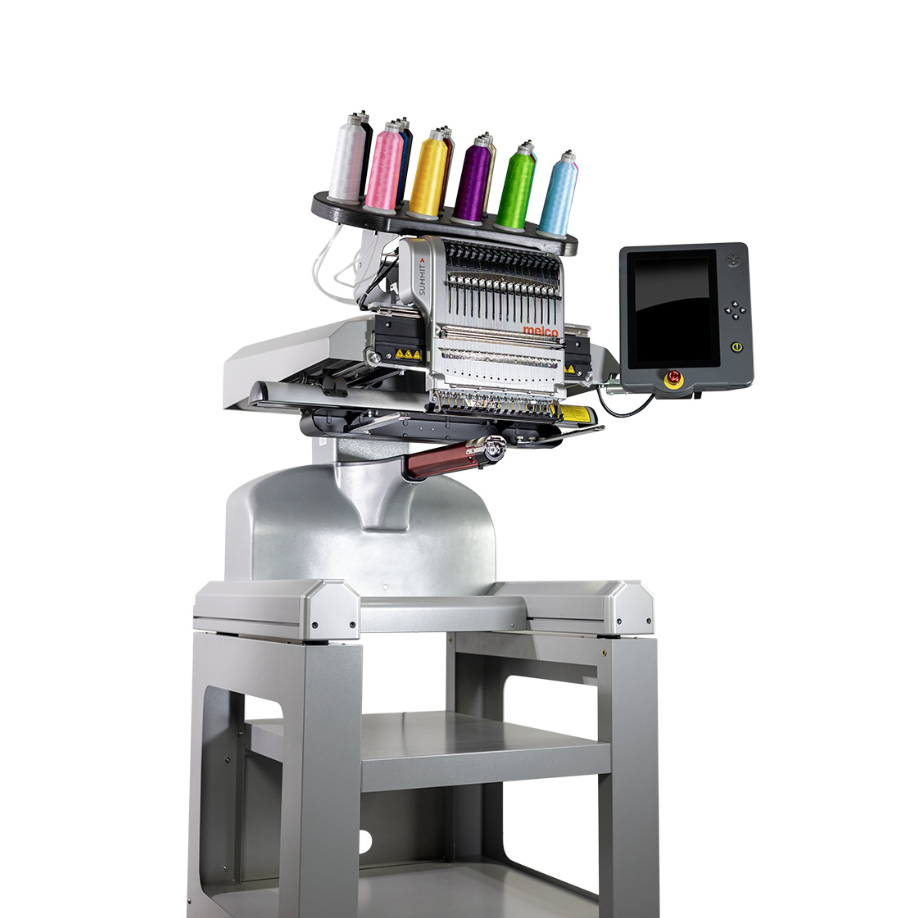

The Melco Summit – maximum flexibility and productivity specifically for small series!
The Melco Summit revolutionises your workflow with many intelligent features. Through a smart workflow, it is specifically designed for your embroidery. An automatic colour assignment, frame selection and thread tension ensure that working with the Summit is effortless and efficient.
- Easy operation – intuitive 10.1″ HD touchscreen simplifies both preparation and operation, allowing you to set up your design, position it perfectly, choose colours, and monitor the status of your embroidery process.
Colourise embroidery design – colouring your embroidery design becomes a breeze. You can see directly on the screen which part of the design you are colouring and assign the exact manufacturer colour you want to use.
- Precise placement – over 125 frames and display the position on the screen to match the physical frame. Placing designs has never been easier, reducing setup time and ensuring precise results with every project.
- Automatic hoop selection – you can conveniently select the embroidery frame via the barcode reader, saving time and reducing errors.
- Automatic thread tensioning – the patented Acti-Feed technology, used in both the Summit and the EMT16X, significantly simplifies the embroidery process as the thread tension no longer needs to be adjusted manually.
- Laser positioning – you can position your design on textiles with millimeter precision without having to hoop it exactly. Additionally, you have the option to combine embroidery with other finishing techniques such as printing or laser engraving.
- 1500 stitches per minute – increase your productivity with a stitching speed of up to 1500 stitches per minute. These impressive stitching speeds are made possible by the modular system and active thread delivery
- Integrated barcode reader – increase production efficiency, the embroidery information is directly transferred to your machine, enabling smooth and error-free operation.

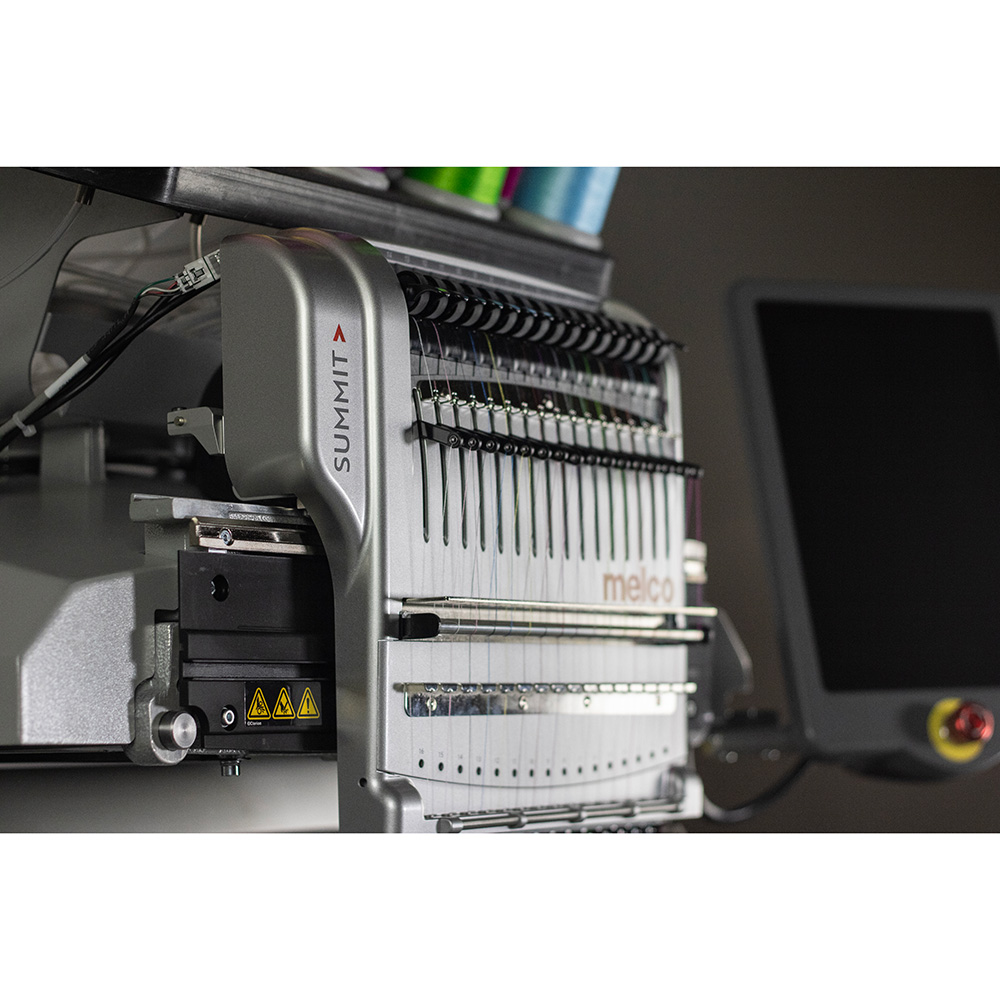

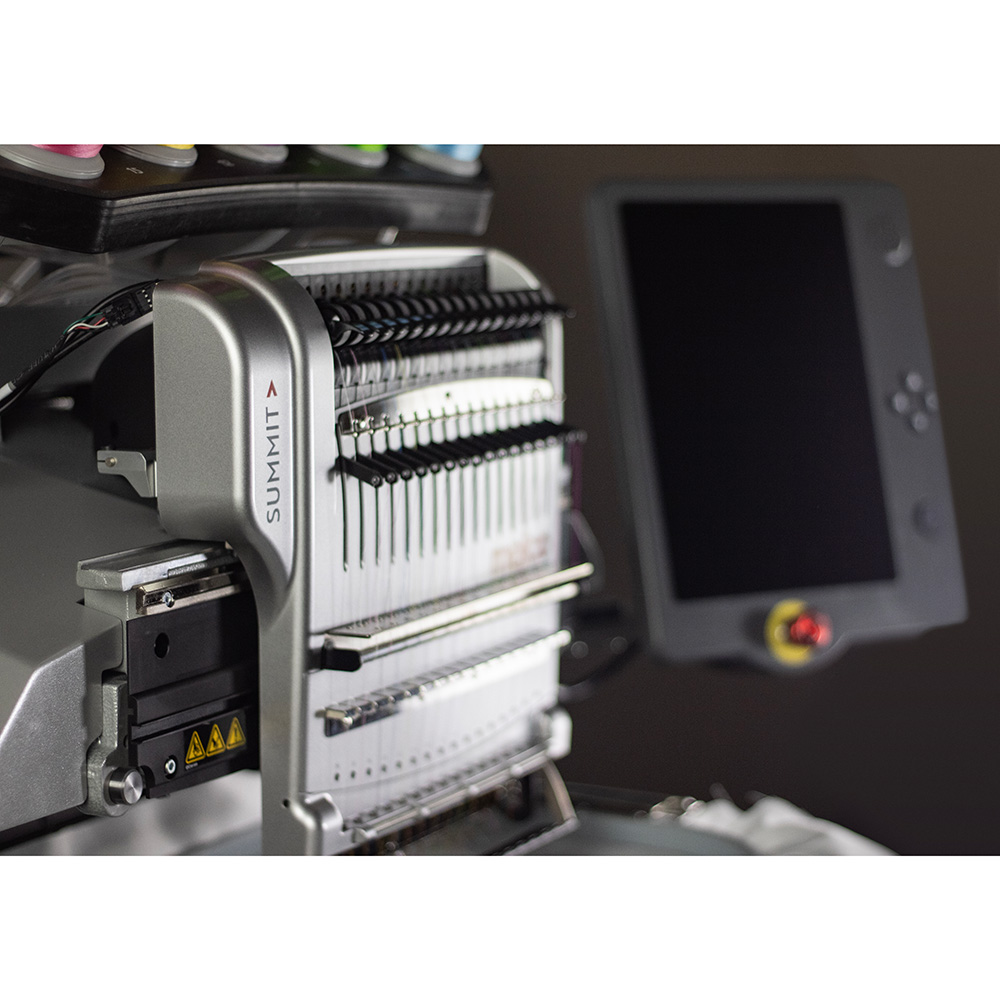

Acti-Feed thread tensioning system
Patented technology significantly simplifies the embroidery process as the thread tension no longer needs to be adjusted manually.

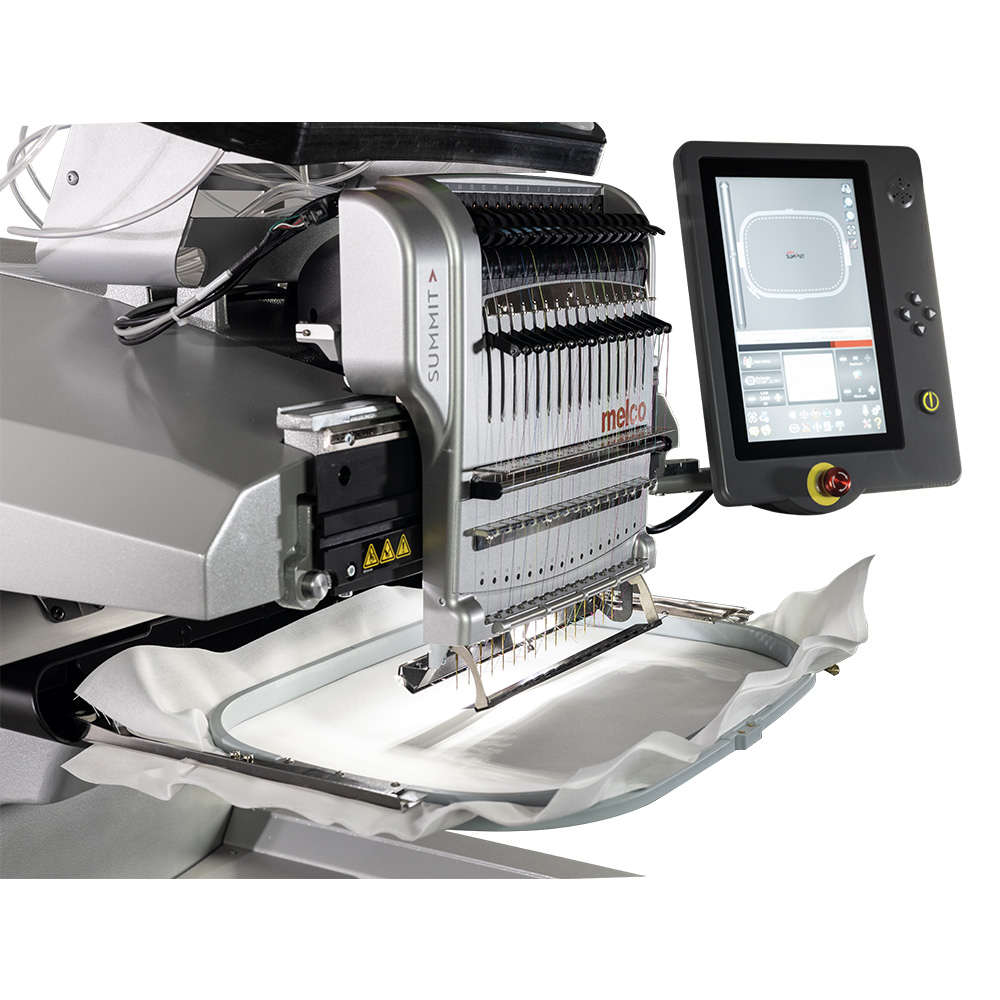

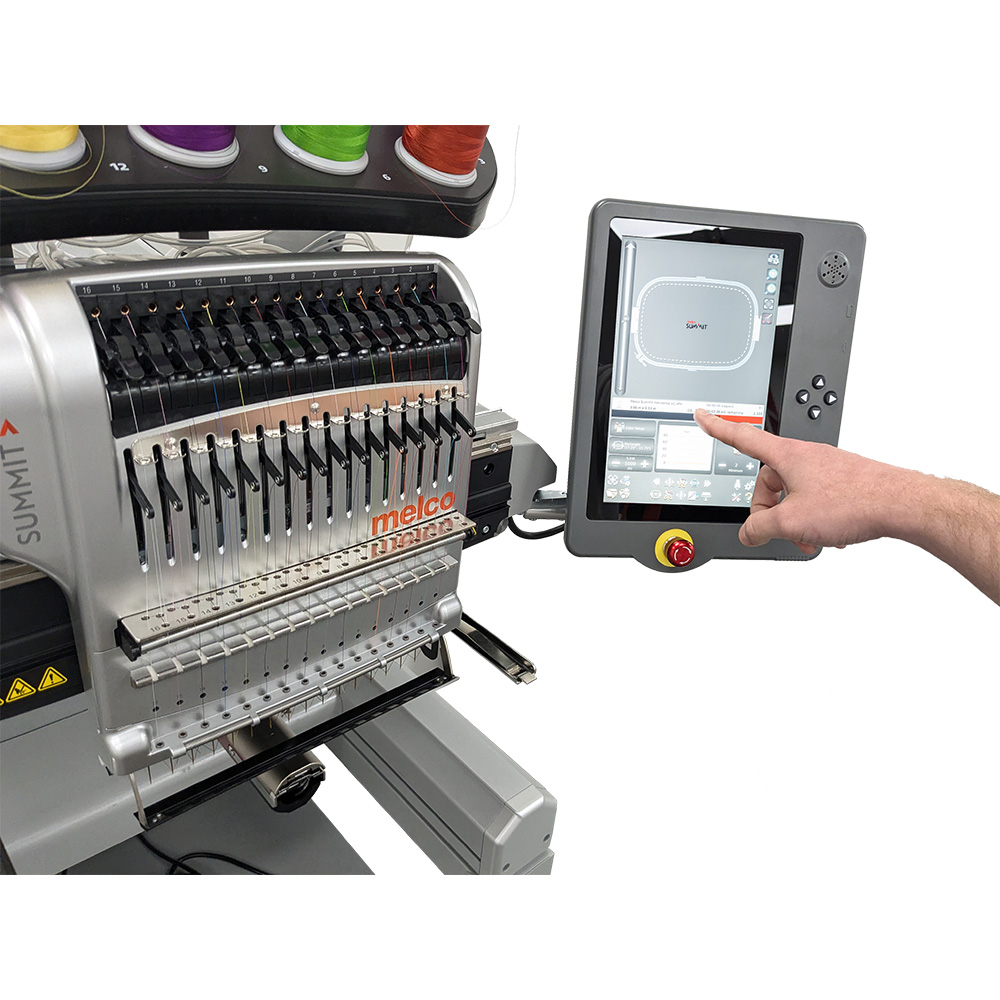

Intuitive operation
The 10.1″ HD touchscreen streamlines production, allowing you to setup, colourise and place your design with ease.

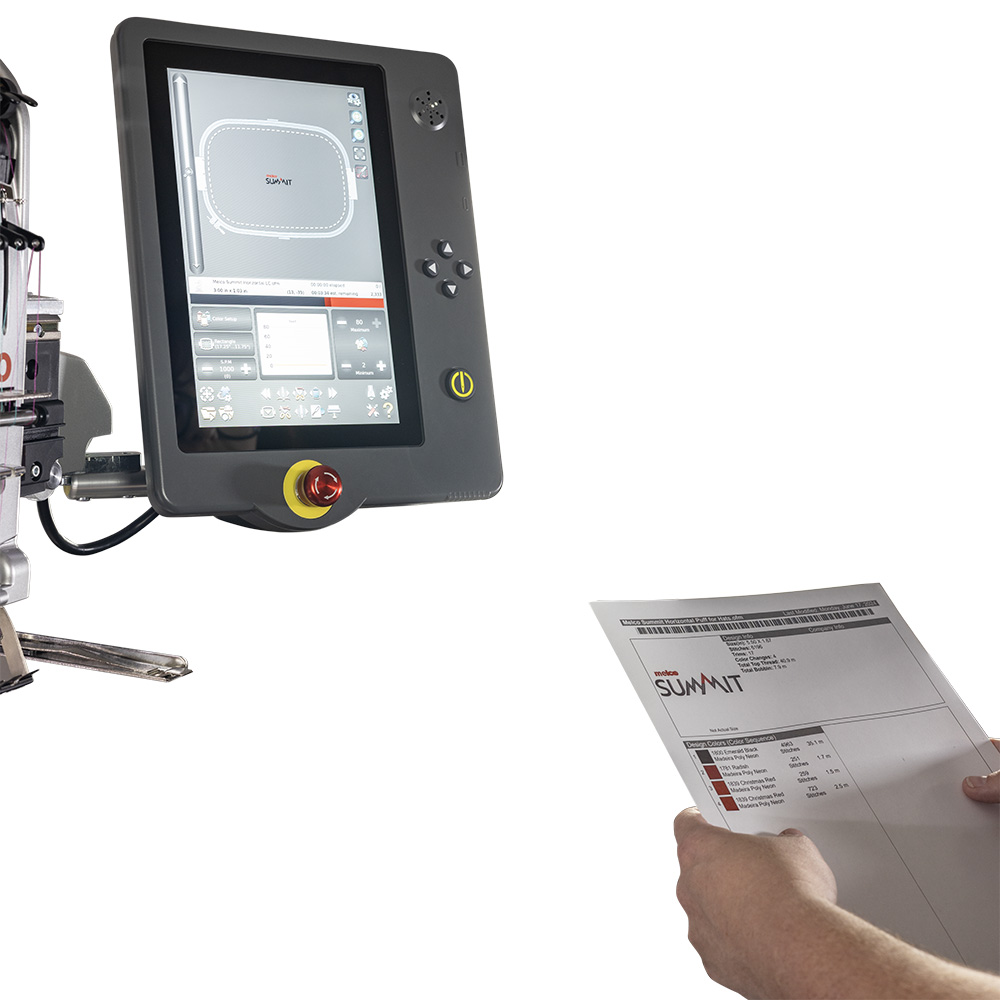

Integrated barcode reader
Increase production efficiency and minimise errors by significantly simplifying the frame selection and loading of designs, perfect for embroidery-on-demand.
Included accessories, software and services
We’ve pieced together the perfect starter kit, packed with all the essentials to power up and stitch stunning designs straight from the start:
- On-site installation and hand-on training
- The complete Amaya Experience of after sales support and service
- Two years manufacturer warranty backed by Amaya
- Design Shop Lettering – digitising software
- Madeira starter kit including thread
- Backing paper
- Pre-wound bobbins
- Scissors
- Toolkit
Why buy from Amaya?
Don’t just take our word for it.
Having bought our first embroidery machine from Amaya, the EMT16, we would recommend the machine to anyone looking to move into embroidery, but more importantly we recommend working with amaya. The team have impressed us from the first discussion, no hard sell, honest clear friendly advice they really feel like they are working with us to help our business rather than just looking for a sale. In fact we’ve now started using their toner papers and flex and when we start looking at DTG I know who we will be calling!
Nick EcclesDirector - Briz-graphics
Any company can sell a product, that is the easy bit. Amaya takes it to the next level, firstly with their due diligence, they will only sell you a product that is suitable for your business. Once you have the product the after sales service is something else. Combining on site product training on installation with continual free training days with industry specialists. I could not recommend Amaya enough for your next purchase to enhance your garment decoration business.
TonyAll Stitched Up
We had been in embroidery for 15+ years and had worn out our original 4-head machine. Now we knew exactly what we wanted in our new machinese and what questions to ask. We decided on the melco emt16 – notice I say “decided” not settled for. The melco was superior in every way. Quality and consistency of design, sewing field, software (both OS & Design Shop) & ease of embroidering caps. It was user friendly & easy to train our operators on. The melco’s have been a major factor in the growth of our embroidery business.
Have used Amaya since 2003. Seventeen years !!! sheesh lol. They helped my business from day 1 and i am still running. Julian and co have been supportive throughout. We have exchanged several bottles of champers over the years as our families have grown. If you are seriously considering entering this business then i would highly highly recommend. You are not just buying a piece of machinery. You are buying a caring, rich in experience support network.
Investing in embroidery has turned our business around and is now our key seller. It has been such a great purchase for us. After two years of having one machines, the amount of work we have got increased so much we then invested in a second machine and potentially another one next year. The after-care and customer service from Amaya is great. It’s not just a sell and that’s it, whenever we have an issue and we call up someone is there straight away.
<tdwidth=”60%”>16
| Number of Needles | |
| Max. Tubular Frame Size (XxY) | 500 x 430mm (19.7″ x 16.9″) |
| Max. Sew Field/Tubular Frame (XxY) | 410 x 393mm (16.1″ x 15.5″) |
| Wide Angle Cap Frame | 360 x 82mm (14.1″ x 3.25″) |
| Conventional Cap Frame | 152 x 70mm (5.9″ x 2.75″) |
| Min/Max Sew Speed Flats | 300-1500 stitches per minute |
| Min/Max Sew Speed Caps | 300-1200 stitches per minute |
| Machine Configuration | Up to 30 individual machines connected by Ethernet |
| Self-Diagnostics Capability | Retrieves relevant machine data for troubleshooting |
| Design Memory | 4GB Total, Max file size 500kb |
| Pre-Sew Trace | Laser |
| Needle to Garment, Garment to Hoop Position | Laser Positioning System |
| Thread Feed Technology | Patented Acti-Feed™ |
| Thread Break Detection | Upper & Lower Electronic Force Gauge Sensor |
| Automatic Stitch Backup | Yes |
| Automatic Trimmer | Yes |
| Dimensions with stand | 724mm(W) x 779mm(D) x 1643mm(H) – 95.5kg |
| Dimensions without stand | 724mm(W) x 741mm(D) x 909mm(H) – 74.6kg |
| Machine Construction Material | Aluminum |
