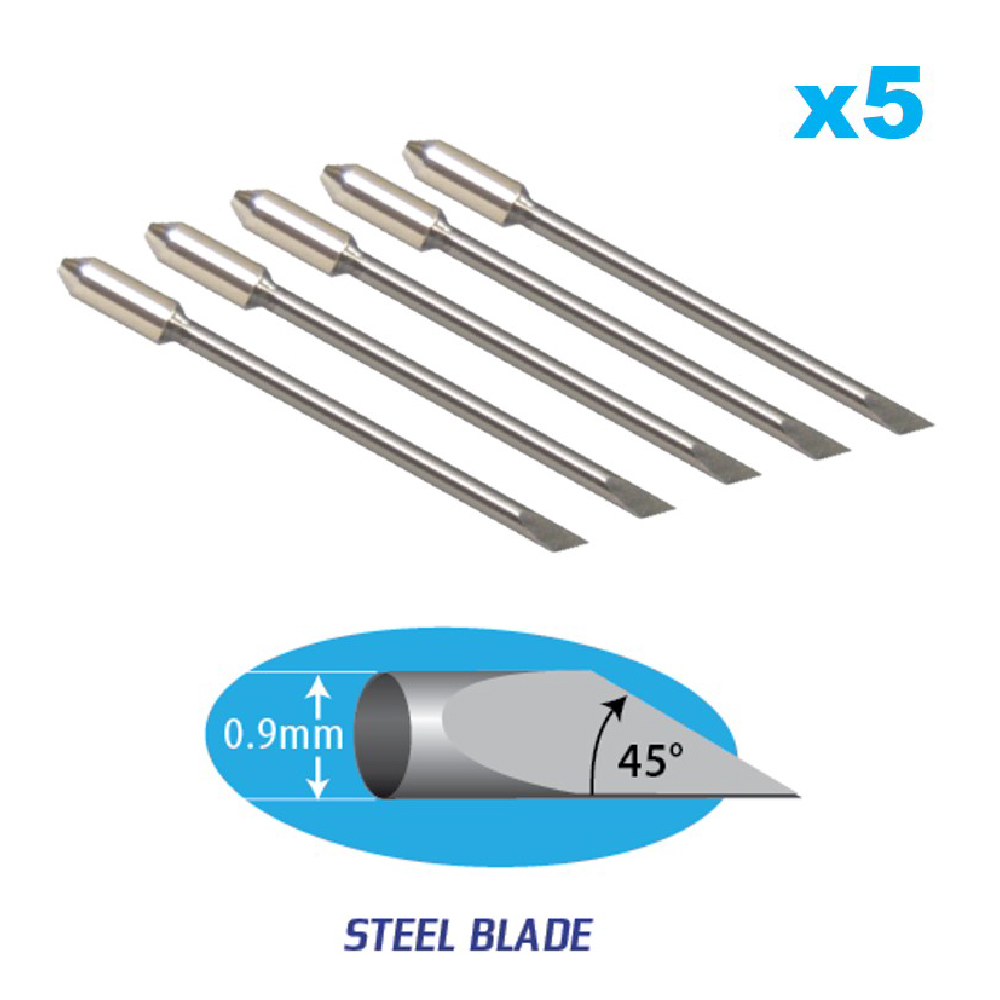

Graphtec 0.9mm Economy Blade (5 pack)
The Graphtec CB09-L Blade brings you Graphtec’s superior cutting blade performance at a more economical price point.
How to assemble your blade
The Graphtec CB09-L Blade brings you Graphtec’s superior cutting blade performance at a more economical price point and replaces the need to purchase cheaper 3rd party blades which may not have the same quality as a Graphtec branded product.
The CB09-L is constructed from Supersteel but features a slightly less deep blade angle which means in order to generate the same cut standard as a CB09UA or CB09UB blade you may need to increase the force setting on your machine slightly.
The CB09-L Blade is compatible with both new and old Graphtec blade holders, please see the compatible blade holder section below to assist in your required blade selection.
Compatible Blade Holders
- PHP33-CB09N-HS: Please choose blade option without spring as these blade holders are pre-sprung. (This blade holder has a blue cap at the bottom where the blade protrudes from and a black blade length adjuster at the top)
- PHP32-CB09N-HS: Please choose the option to have the spring included as these blade holders require a spring. (This blade holder has a black cap where the blade protrudes from and a blue blade length adjuster at the top)
Best Suited Materials:
- Self-Adhesive Marking Film
- Heat Transfer Media
- Blade Material: Steel
- Cutting Angle: 45º
- Blade Diameter: 0.9mm
- Max Material Thickness: 0.25mm
- Estimated Vinyl & HTV Lifespan: Approx. 5km
- Estimated Paper & Card Lifespan: Approx. 2km
|Dimensions||7 × 5 × 1.5 cm|
|Select Option||Blade Only, Blade Including Spring|
