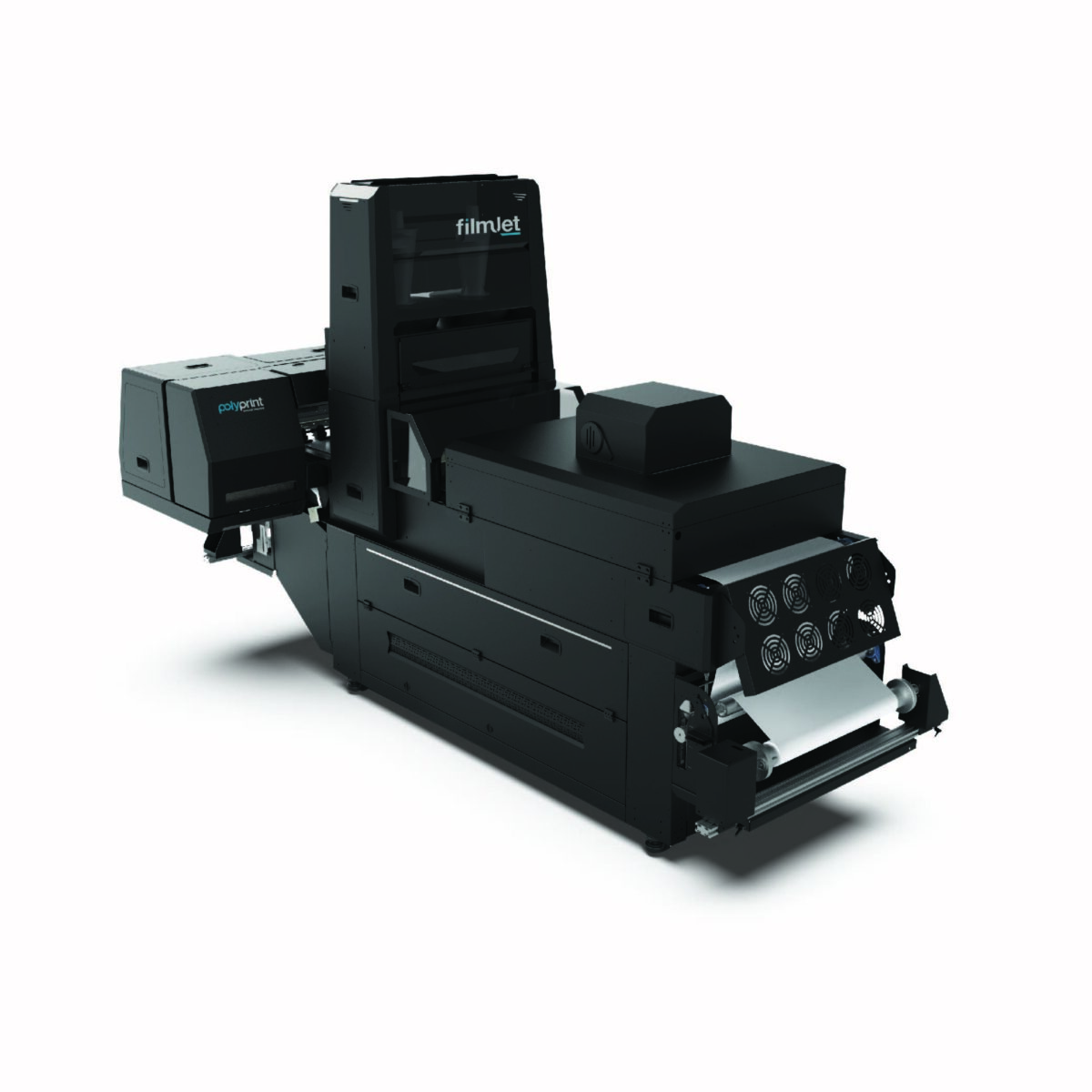

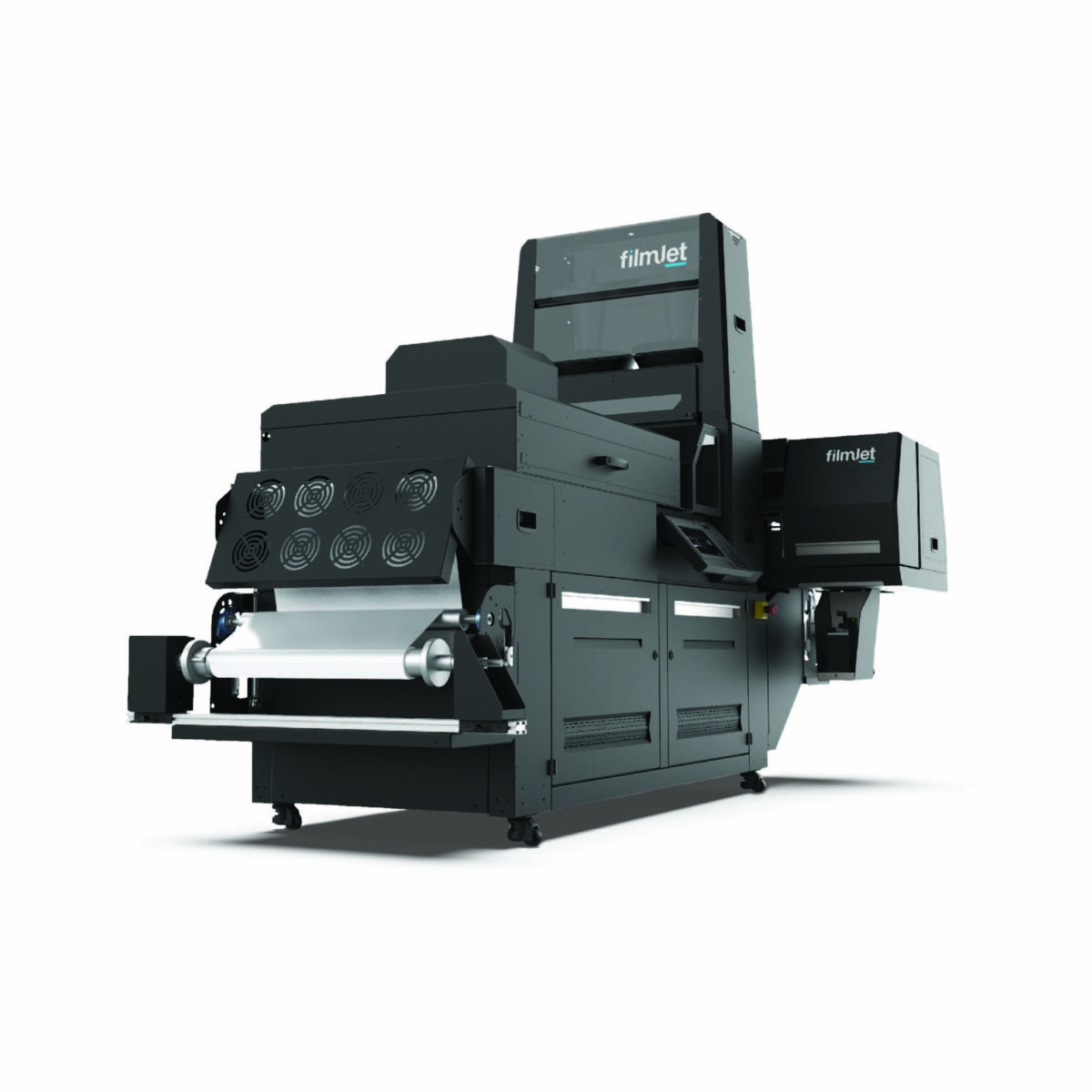

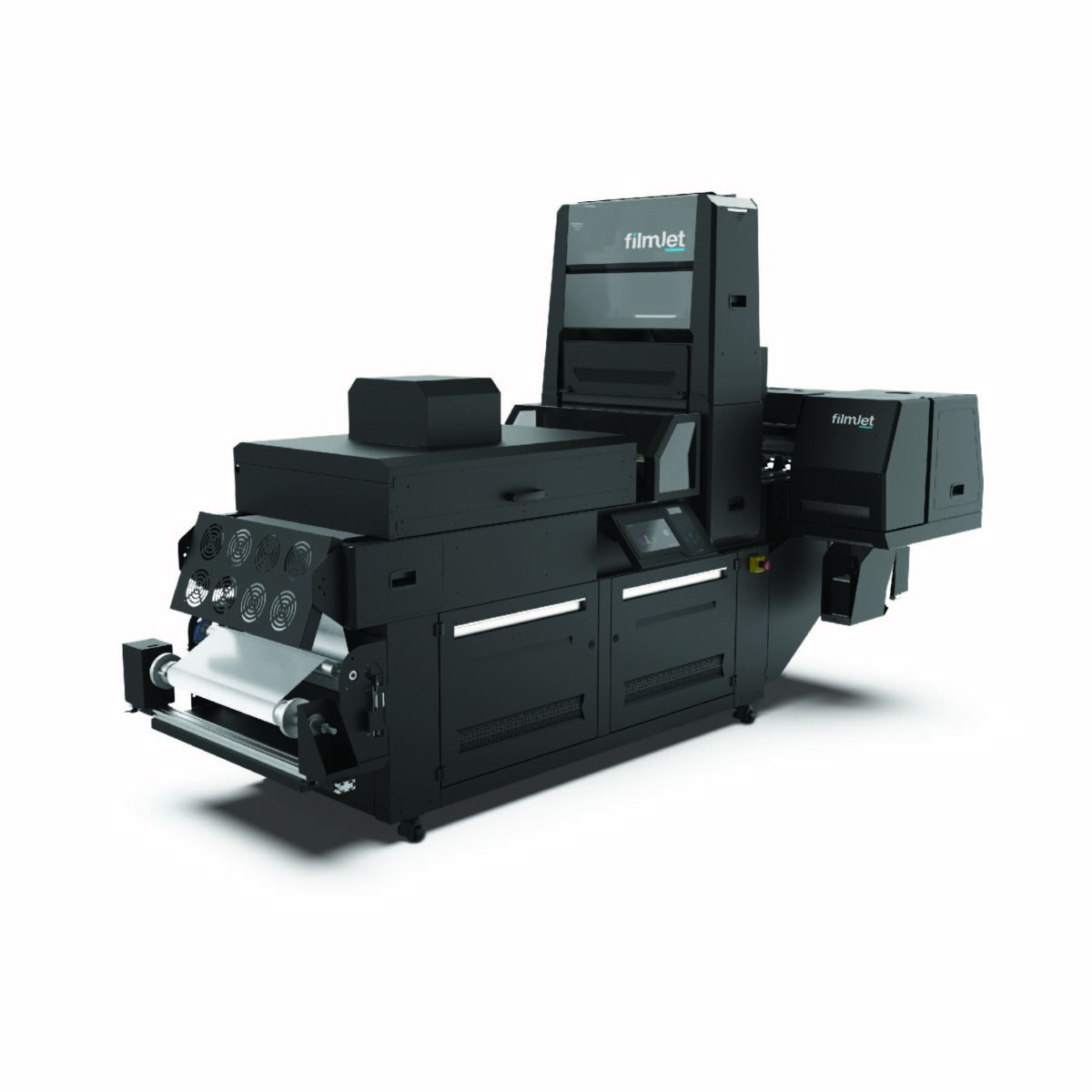

Filmjet DTF Roll to Roll Printer integrates advanced automation technologies, industrial-grade printing speeds and features such as the Smart System-Control and the Constant Film Tension.

Along with Auto Powder Recycling, these automations, ensure the protection of both the equipment and the print jobs, leading to substantial cost savings and trouble free workflow as well as user safety.

Smart System Control

Monitors all system processes and fully automates printer functions such as the activation/deactivation of the powder applicator and the dryer when needed, preventing print runs from damage. This ensures optimal energy savings and minimizes material waste.

Constant Film Tension

The motorized winding and unwinding system and the adjustable film pressure maintain consistent tension. This setup keeps the film aligned and flat, preventing sidewise shifting that could lead to issues during printing, powdering or the drying process.

Auto Powder Application and Recycling

A fully automatic mechanism, equipped with a set of adjustable brushed rollers precisely applies regulated powder amount, ensuring uniform diffusion. Excess powder is recycled via an automatic system, transferring it to separate containers atop the central tank for reuse.

Air/Vacuum Excess Powder Removal

An adjustable air vacuum, coupled with an “air knife,” efficiently removes excess powder by redirecting it back into the suction area. Additionally, an antistatic bar neutralizes static electricity onto the film to prevent powder adherence and maintain cleanliness.

Auto White Ink Circulation and CMYK Ink Agitation

Filmjet features automated systems for ink circulation and agitation, ensuring consistent ink quality for optimal print head performance and smooth workflow. This guarantees high-quality output and superior printing results.

Multi Zone Smart Curing

The dryer has four heating stages, each with independently controlled IR lamps, enabling various temperature profiles for optimal powder curing. A removable protective glass facilitates easy cleaning and prolongs lamp life. The system also features a built-in fume extractor.

4x i3200 Printheads Staggered

Optimal spacing between printheads ensures CMYK drying before White ink application, maintaining quality even in fast print modes through printhead overlap. Integrated printhead-guards protect against media damage.

Consumables

Optimized performance of Inks, Films, and Powder, delivers print consistency, colour accuracy, and exceptional wash fastness.
