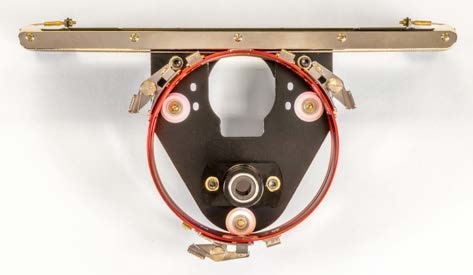

Adjusting the Red Wide Angle Driver

Testing for Appropriate Adjustment

This procedure may need to be performed if the Red Wide Angle Driver was purchased separately from your machine, the driver has been dropped or mishandled, if the initial installation of the driver shows the adjustment to be off, or if prompted by technical support.

The Red Wide Angle Driver may need to be adjusted to custom-fit each machine. A driver that is not properly adjusted to the machine it is used on will result in negative impact to sew out quality and machine productivity and reliability.

The following tools will be used:
• Screwdriver, Hex Drive, Ball End, 4mm
• Hex Set, 7 Pieces, Metric Long – 6mm and 2mm

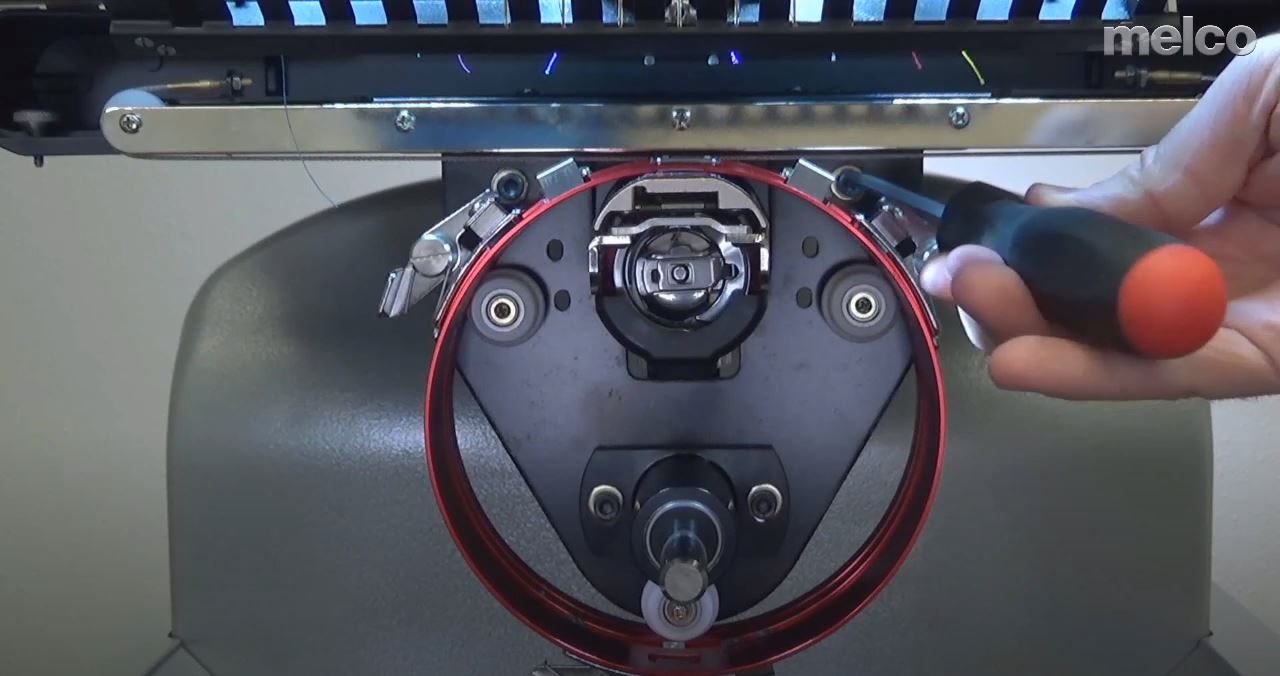

Video Demonstration:

YouTube Play Icon with no background
  • 1. Install the driver using the instructions for Installing the Red Wide Angle Driver.

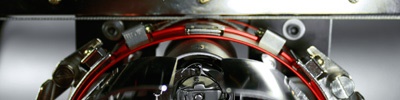

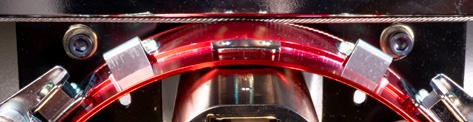

  • 2. Position the driver so that the bushing is aligned to the front of the support shaft and the driver ring is centered with the hole in the needle plate. Reference the ring’s frame location tab.
Adjusting the Red Wide Angle Driver

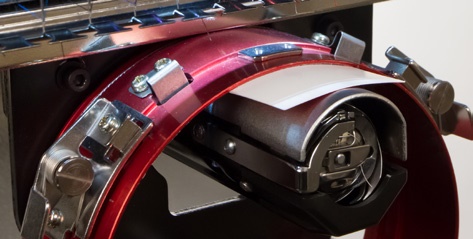

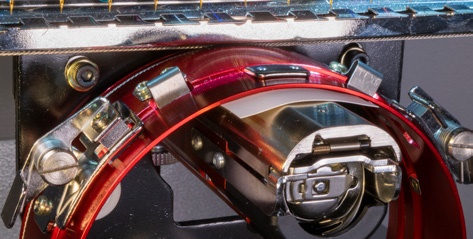

  • 3. Place a business card of medium to heavy stock (or equivalent) between the needle plate and the driver ring. A single business card should be able to slide between them with little resistance. A gap of two business cards is acceptable.

For EMT16X

Adjusting the Red Wide Angle Driver

For EMT16, EMT16 PLUS, & most previous models

Adjusting the Red Wide Angle Driver
  • 4. If the gap is too small or too large, the driver will need to be adjusted using the steps below.

Adjustment Procedure

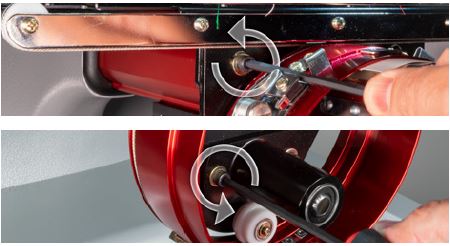

  • 1. Begin by loosening the two bearing block hex screws and the two interface bracket screws using the 4mm hex screwdriver.
Adjusting the Red Wide Angle Driver
Adjusting the Red Wide Angle Driver
Adjusting the Red Wide Angle Driver
  • 2. Install the Red Wide Angle Driver on your machine. See the installation section of the document for details.

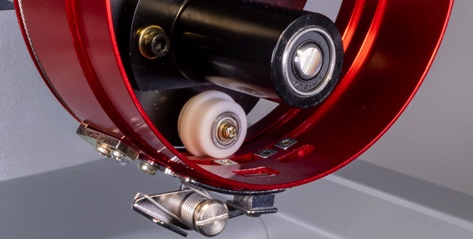

  • 3. Position the driver so that the bushing is aligned to the front of the support shaft and the driver ring is centered with the hole in the needle plate. Reference the ring’s frame location tab.

For EMT16X

Adjusting the Red Wide Angle Driver

For EMT16, EMT16 PLUS, & most previous models

Adjusting the Red Wide Angle Driver
Adjusting the Red Wide Angle Driver
  • 4. Place a business card of medium to heavy stock (or equivalent) between the needle plate and the driver ring. This will act as a spacer. The ring should just rest on the card.

For EMT16X

Adjusting the Red Wide Angle Driver

For EMT16, EMT16 PLUS, & most previous models

Adjusting the Red Wide Angle Driver

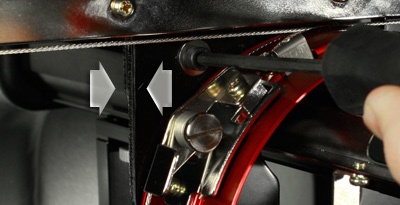

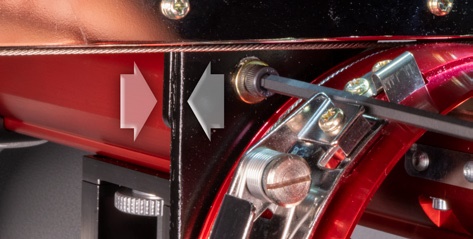

  • 5. Making sure the edges of the two black brackets are aligned, tighten one of the upper screws.

For EMT16X

Adjusting the Red Wide Angle Driver

For EMT16, EMT16 PLUS, & most previous models

Adjusting the Red Wide Angle Driver

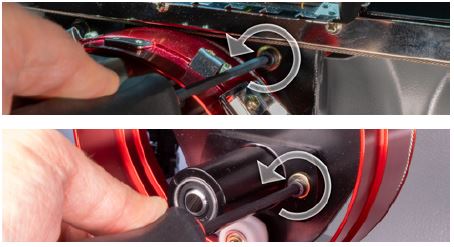

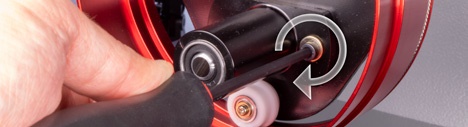

  • 6. Tighten the opposite screw securing the bearing mounting block.
Adjusting the Red Wide Angle Driver

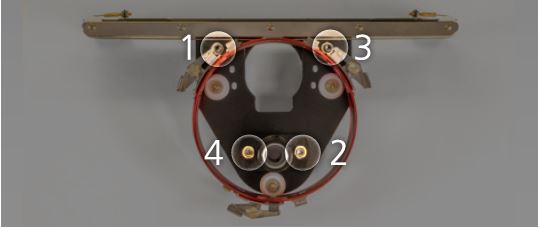

  • 7. Tighten the second upper screw securing the bracket and then the second lower screw securing the bearing mounting bracket. Tightening these four screws in a star-like pattern achieves the best results. Then remove the business card.
Adjusting the Red Wide Angle Driver
  • 8. Move the y-beam and x-carriage by hand to ensure there is no binding. This can only be accomplished with the machine off or the e-stop engaged.

WARNING: If using the red wide angle driver with the Conventional Cap Frame or any of the micro-clamps, the cap support wings must be removed to prevent interference with the frames.
