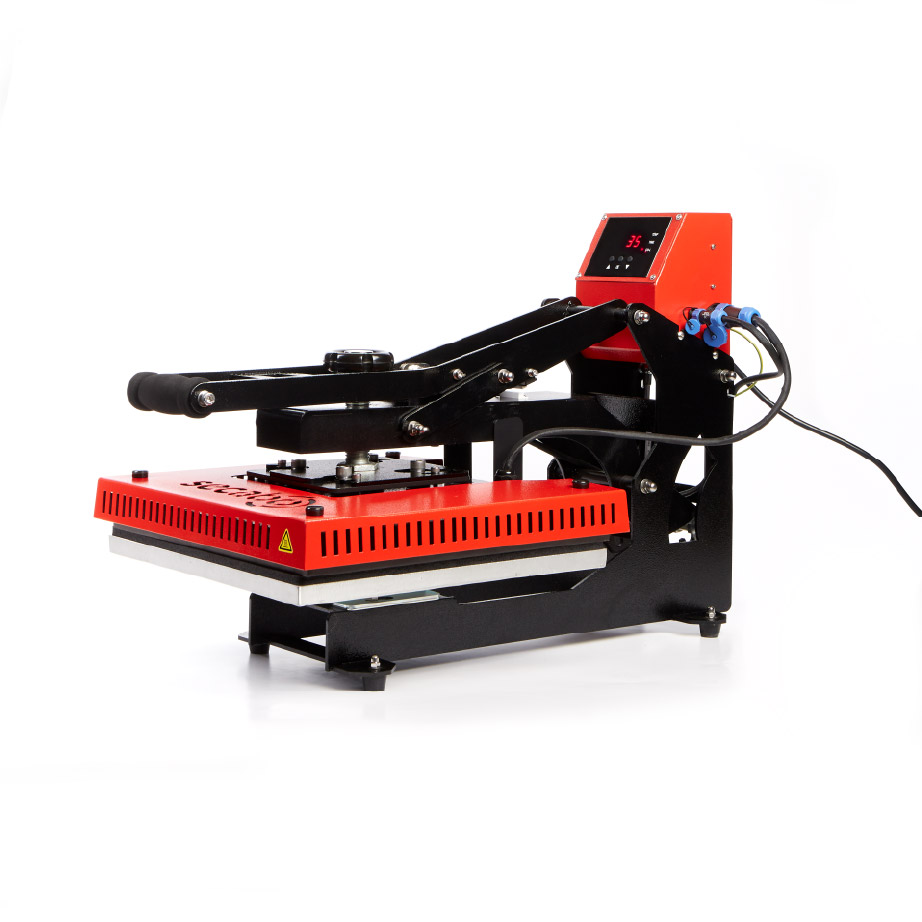

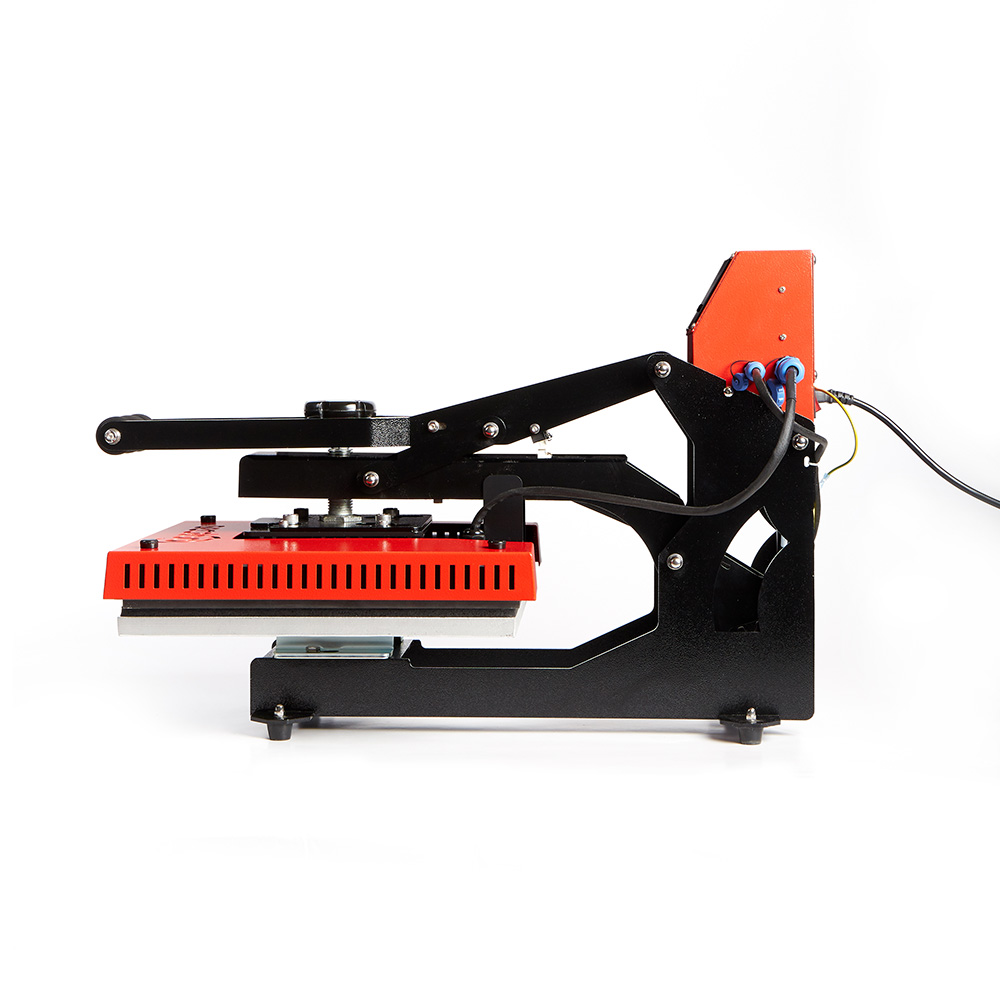

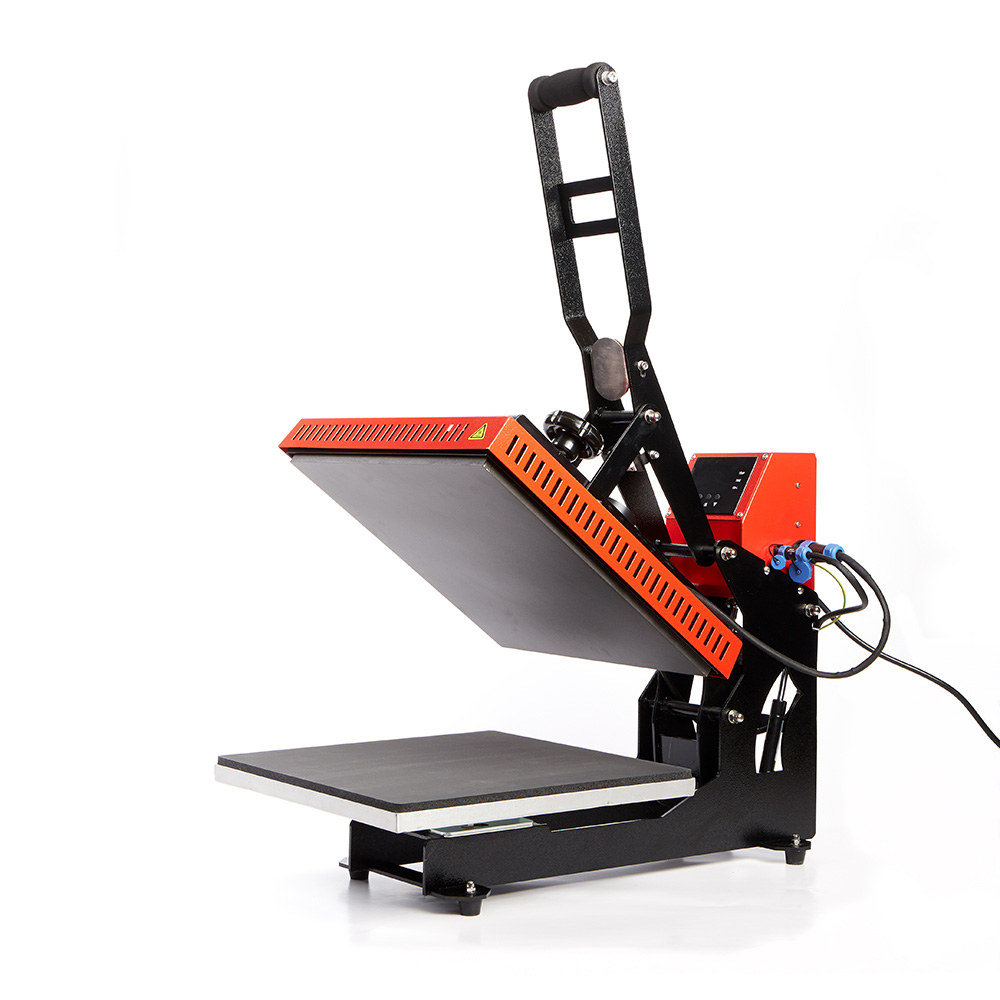

Secabo TC5 Lite – 38 x 38cm Clam Press
£725.00 +VAT (£870.00 inc VAT)
Secabo TC5 Lite heat press is a powerful and versatile heat press built for textile and flat-surface transfers. This modular clamshell press offers a spacious 38 × 38 cm heating area and automatic opening, allowing you to step away while your transfers complete. Easy digital controls let you set and adjust temperature and time precisely, while the intuitive handwheel pressure control ensures consistent results across a wide range of materials and transfer types.
Its fully modular design makes maintenance and future upgrades simple, with interchangeable plates and optional accessories available to expand your workflow.
Ideal for start-ups, small shops, or growing customisation businesses, the TC5 Lite combines robust German engineering with practical functionality — giving you dependable, professional-quality heat transfers day after day.
- Description
- Specifications
Description
The Modular Heat Press Built To Grow With Your Business
- 38 × 38 cm Working Surface
The press offers a generous 38 × 38 cm working surface, making it suitable for a wide range of textile transfer applications. This size supports most common garment formats and flat transfer materials. - Modular Design
The TC5 LITE is built with a fully modular design, allowing the control unit, heating plate, base plate, and frame to be easily removed and replaced. Users can upgrade components such as heating platens or base plates at low cost, extending the machine’s lifespan and flexibility. - Safety Features
An additional cover plate on the heating platen helps protect the user from accidental burns during operation. The automatic opening function further enhances safety by reducing the need for manual handling.

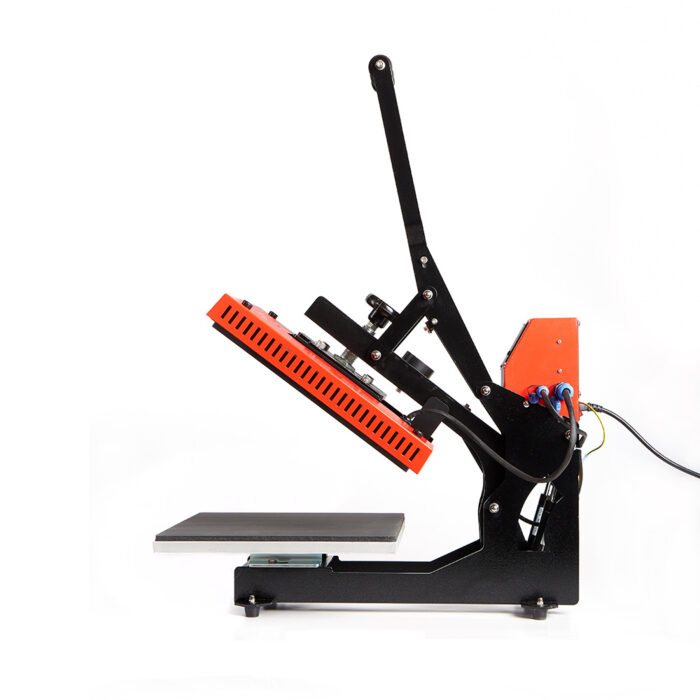

- Automatic Opening
The Secabo TC5 LITE features an automatic opening mechanism that activates once the pre-set pressing time has elapsed. This allows the user to multitask without constantly monitoring the press. The pressing cycle can also be interrupted at any time at the push of a button. - User-friendly Interface
Temperature and pressing time are conveniently set using a digital controller, ensuring precise and consistent transfer results. The clear interface makes the press easy to operate, even for less experienced users. - Adjustable Pressure
Contact pressure is easily adjusted using a large handwheel located on top of the heating plate. This allows accurate pressure control to suit different materials, ensuring reliable results across various heat transfer processes.
Available Accessories:
A wide range of optional accessories are available for the Secabo TC5 Lite, allowing you to expand functionality, improve workflow efficiency, and tailor the press to suit your specific production requirements.
Quick Change Base Plates
Available in 12 × 38 cm, 15 × 15 cm, 20 × 30 cm and 8 × 12 cm sizes, these interchangeable plates give you the flexibility to press sleeves, chest logos, neck labels and small designs accurately — reducing misprints, saving time and improving overall production efficiency. Purchased separately, learn more about the base plates here…
Quick Change System
With Secabo’s quick-change system, you can mount up to three interchangeable plates side by side and swap them out in seconds — maximising efficiency, reducing downtime, and keeping production flowing smoothly across multiple garment sizes and applications. Purchased separately, learn more about the adapters here…
Sliding Base Extension
Convert your press into a convenient dual-plate system with the Secabo Sliding Base Extension. Easily bolted on in minutes, it integrates Secabo’s proven quick-change system and glides smoothly left to right, increasing productivity and reducing downtime. Purchased separately, learn more about the sliding base here…
Free Standing Cross Lasers
Enhance heat-transfer accuracy with the Secabo modular cross laser systems. Available in either a single or double laser option they enables precise, repeatable positioning of garments and transfers—ideal for higher production runs—while offering flexible mounting options and customisable configurations. Purchased separately, learn more about the lasers here…
Mounted Double Cross Lasers
The Mounted Double Cross Laser System delivers fast, accurate transfer alignment for professional heat press users. Dual high visibility lasers mount securely via quick coupler, reducing positioning errors, minimising waste, and increasing overall productivity daily. Purchased separately, learn more about the lasers here…
Base Plate Covers
Protect your heat press with Secabo base plate covers in 38x38cm and 40x50cm sizes. Heat-resistant and washable, they prevent wear, improve garment loading, reduce setup time, and keep production smoother, cleaner, and efficient every day. Purchased separately, learn more about the covers here…
Why Amaya?
Don’t just take our word for it.
Any company can sell a product, that is the easy bit. Amaya takes it to the next level, firstly with their due diligence, they will only sell you a product that is suitable for your business. Once you have the product the after sales service is something else. Combining on site product training on installation with continual free training days with industry specialists. I could not recommend Amaya enough for your next purchase to enhance your garment decoration business.
TonyAll Stitched Up
Always on hand with the best products and advice to grow, maintain and prosper with our printing and embroidery business. Their friendly service and prompt flexible attitude makes them second to none. If I could keep them a secret I would – I do not hesitate in recommending everyone at Amaya Sales UK.
Have used Amaya since 2003. Seventeen years !!! sheesh lol. They helped my business from day 1 and i am still running. Julian and co have been supportive throughout. We have exchanged several bottles of champers over the years as our families have grown. If you are seriously considering entering this business then i would highly highly recommend. You are not just buying a piece of machinery. You are buying a caring, rich in experience support network.
Amaya Uk have been beside us as a Company for over 17 years, and through that time they have always been there to offer advice and help. Through their excellent support we have grown not just in the world of Embroidery, but in printing through the various printing formats they offer. We have found them professional, caring and helpful, and always willing to go that extra mile to ensure we have what we want, not what they want. We can only thank them for all their help, and just wish we met them a lot earlier.
| Dimensions open | 41cm x 93cm x 67cm |
| Dimensions closed | 41cm x 57cm x 73cm |
| Work surface size | 38cm x 38cm |
| Scope of delivery | Mechanical base, heating plate and base plate, LITE controller box, C13 power cable, tools, operating instructions |
| Pressure adjustment | Height adjustment of the heating plate using handwheel |
| Max. contact pressure | 250 g/cm² |
| Max. temperature | 225 °C |
| Max. time preset | 999 s |
| Max. folding angle | 40 ° |
| Power supply | AC voltage 230V / 50Hz – 60Hz, 1.80kW |
| Environment | +5°C – +35°C / 30% – 70% humidity |
| Options | Quick-change system, various exchangeable plates, slide extension and membrane base plate |
| Weight without packaging | 32 kg |
| Weight with packaging | 40.60 kg |
| Warranty | 2 years |
