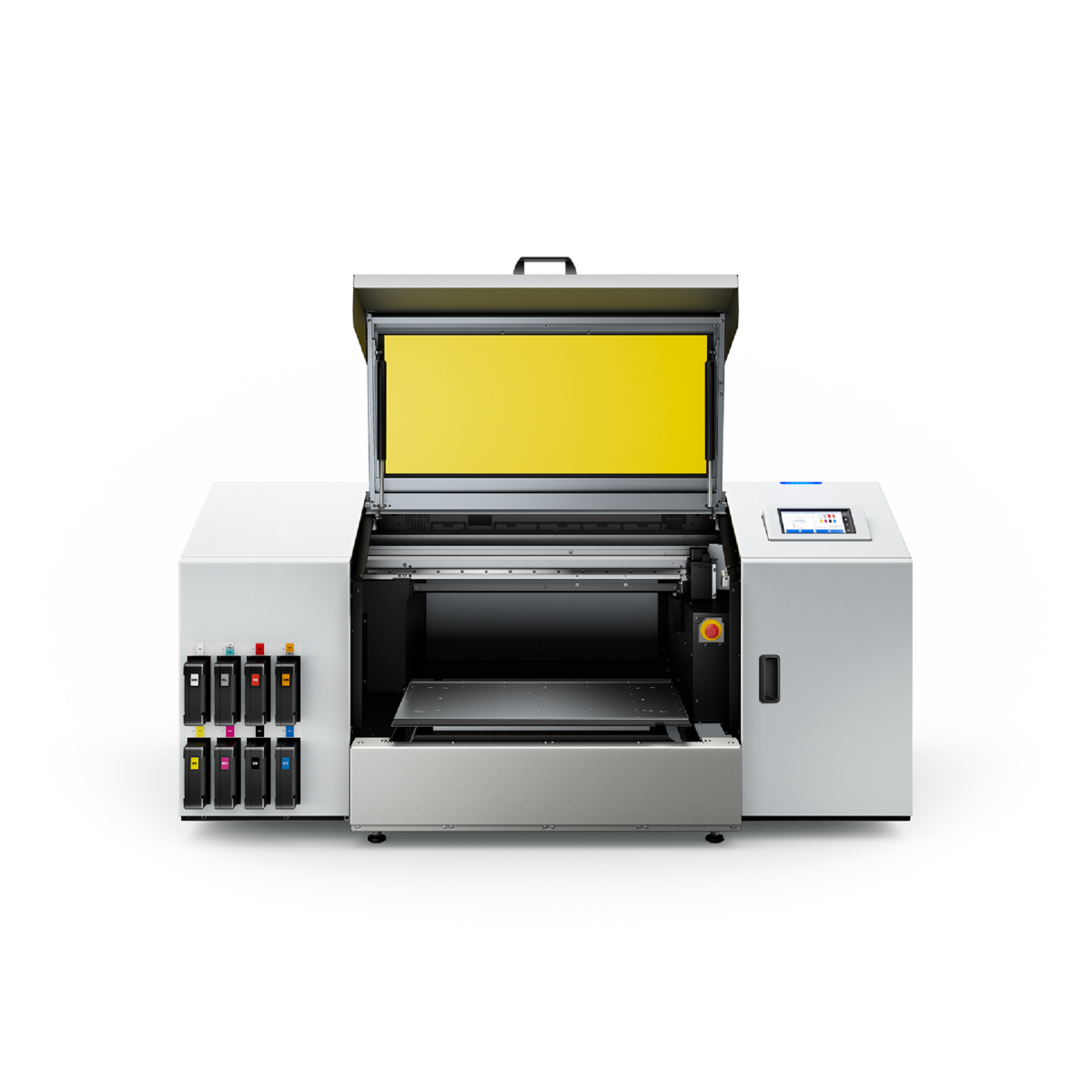

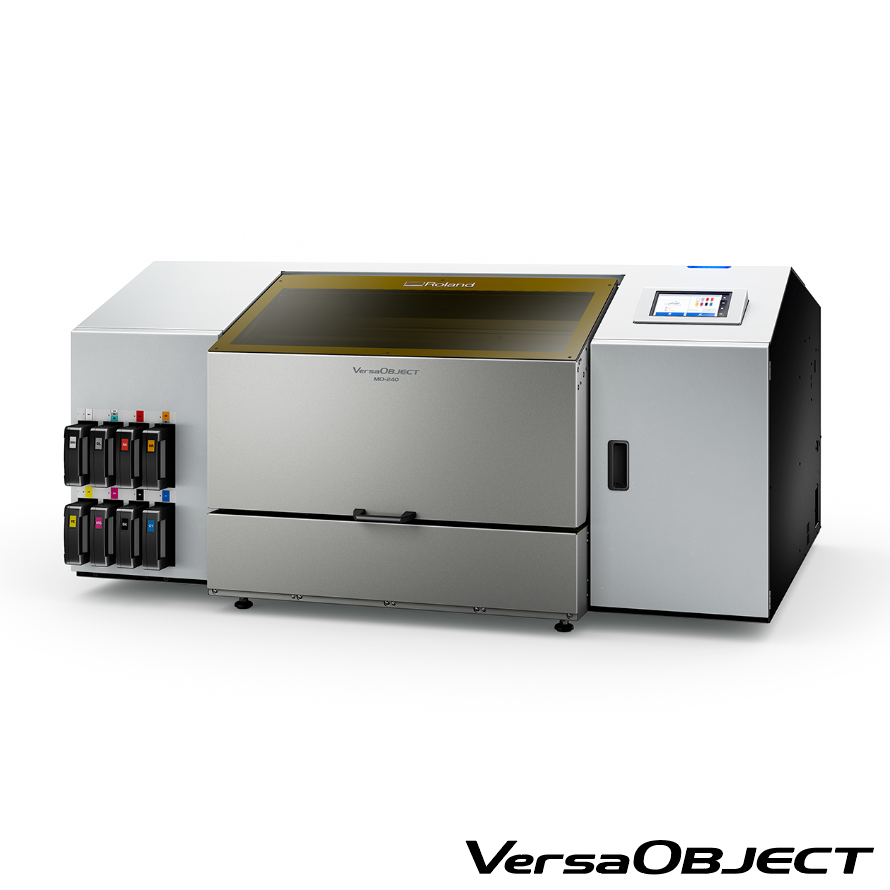

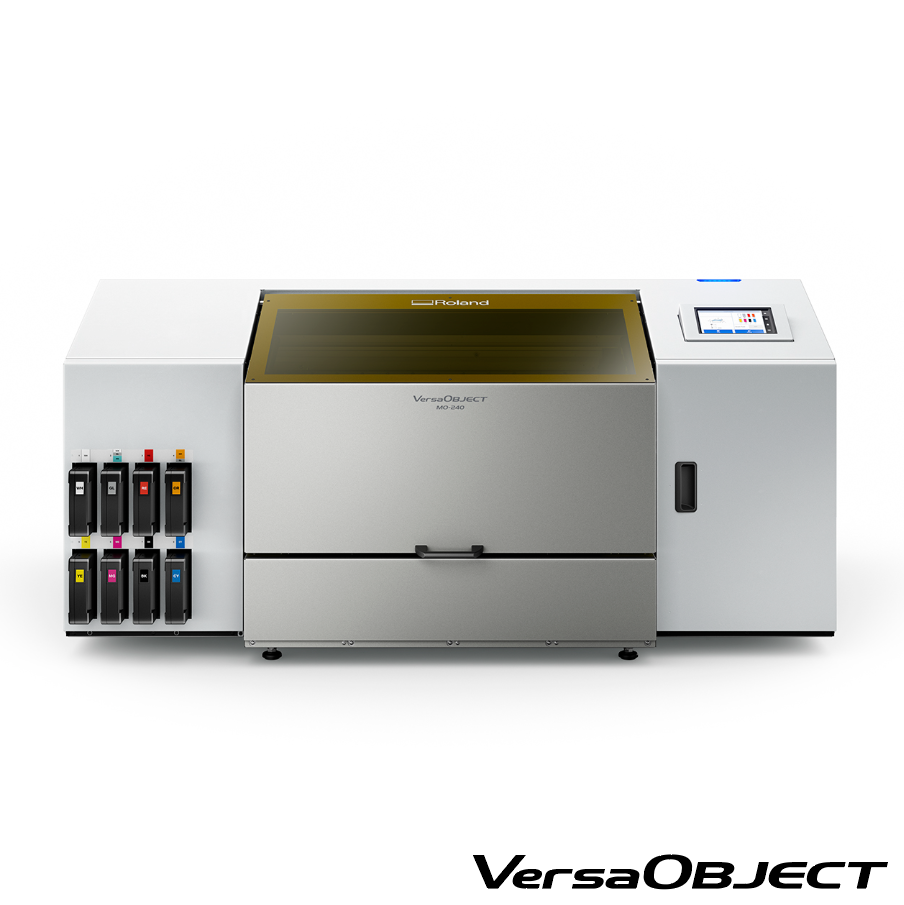

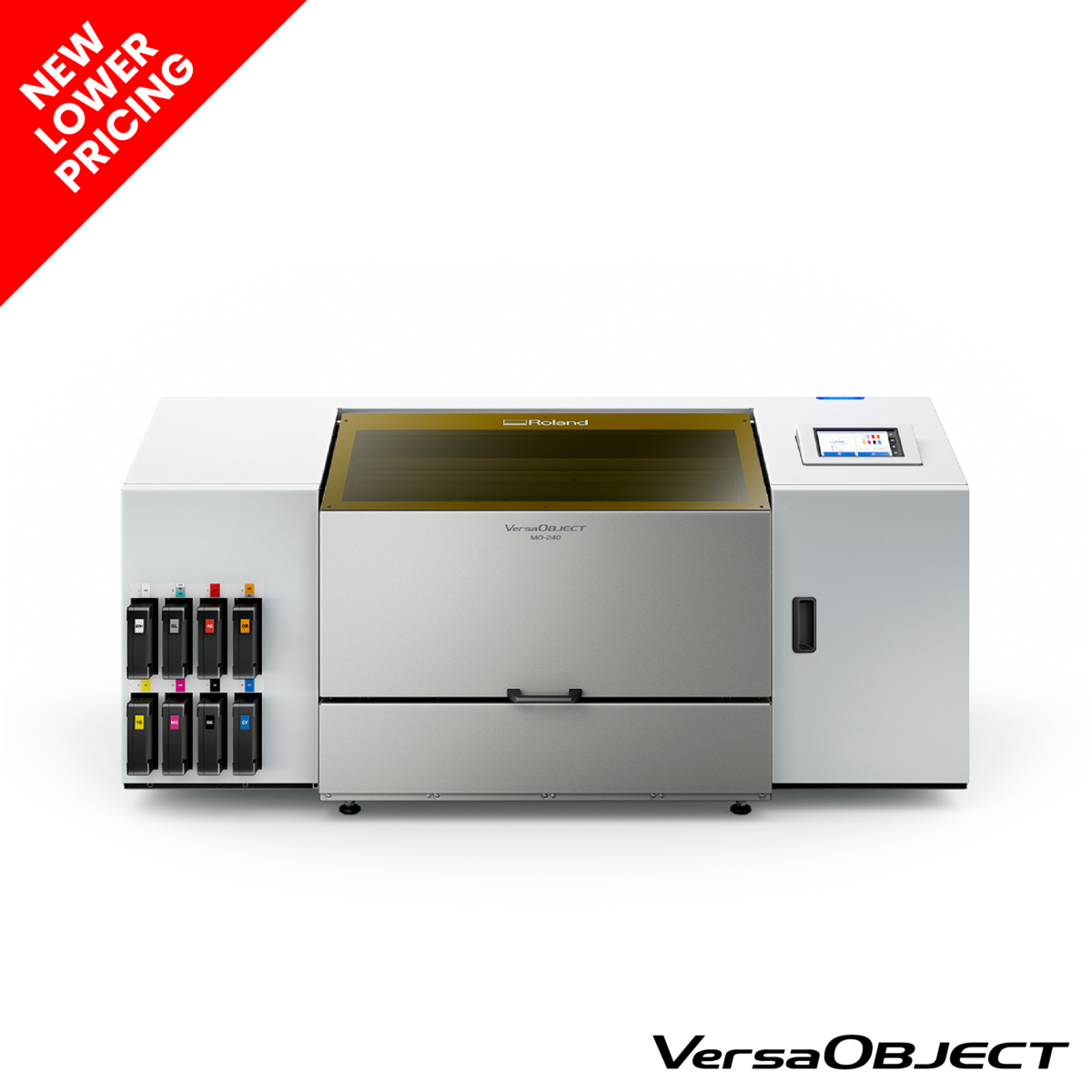

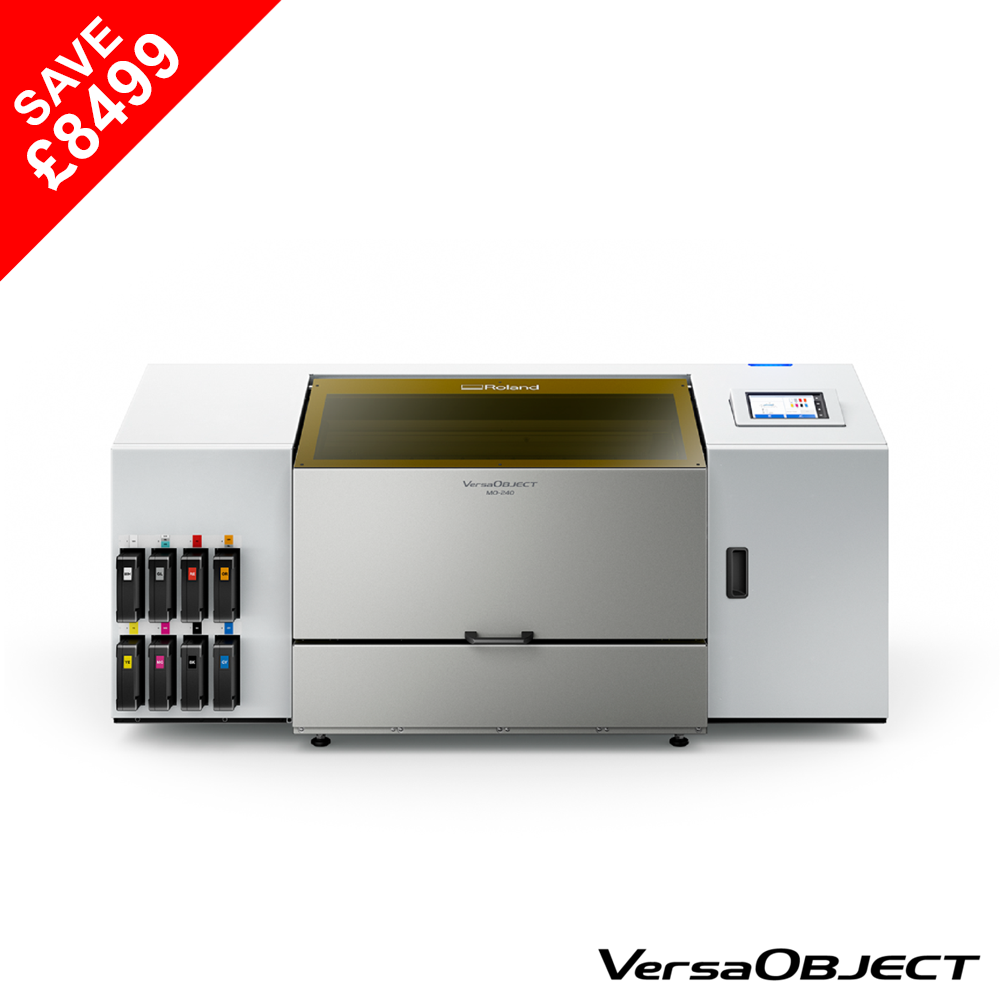

ROLAND MO-240 UV Flatbed Printer
Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO-240. Our advanced UV flatbed printer gives you the power to dominate a growing direct-print market through:
-
- High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
- High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 print bed.
- Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.

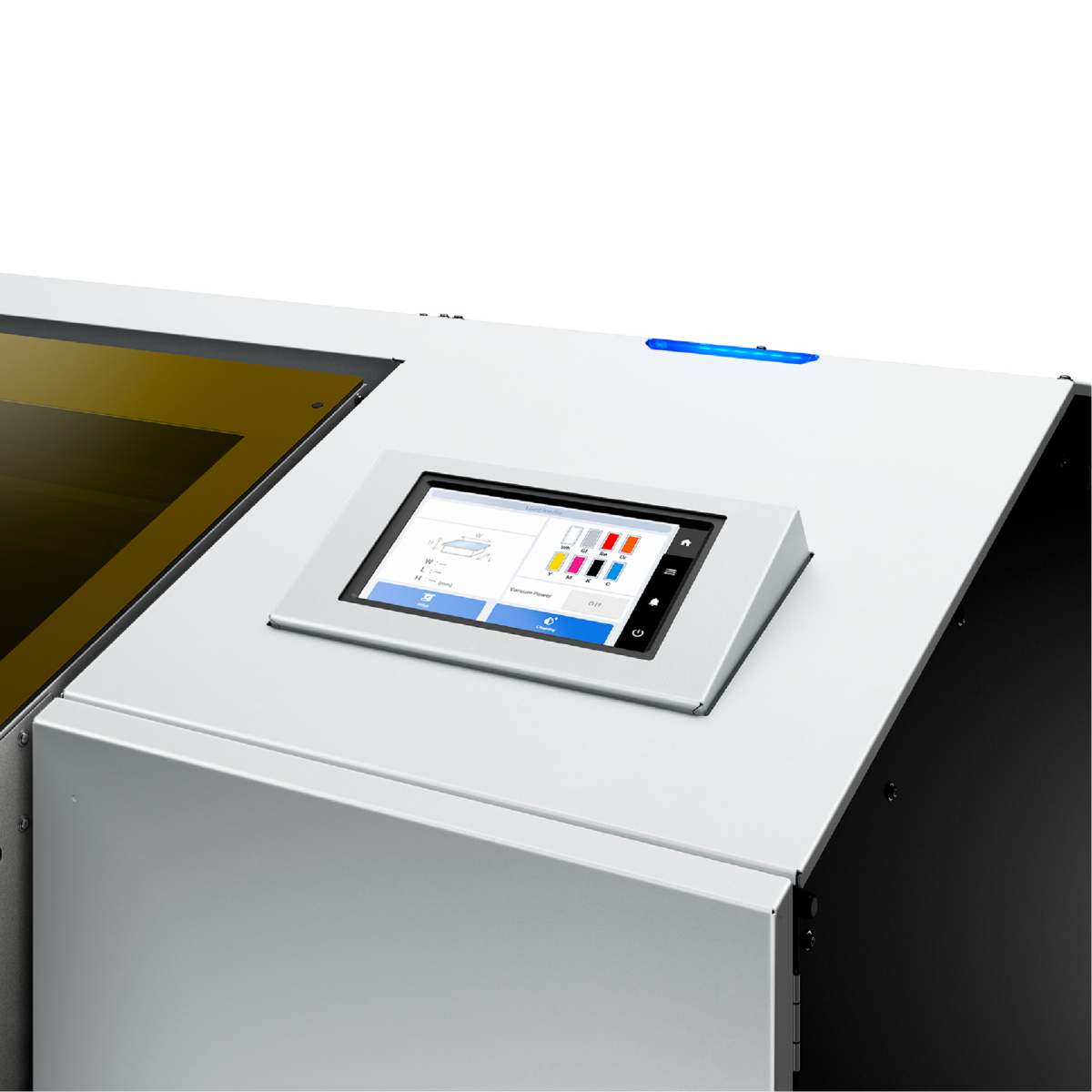

- Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.
- Price £26,499.00 +VAT.

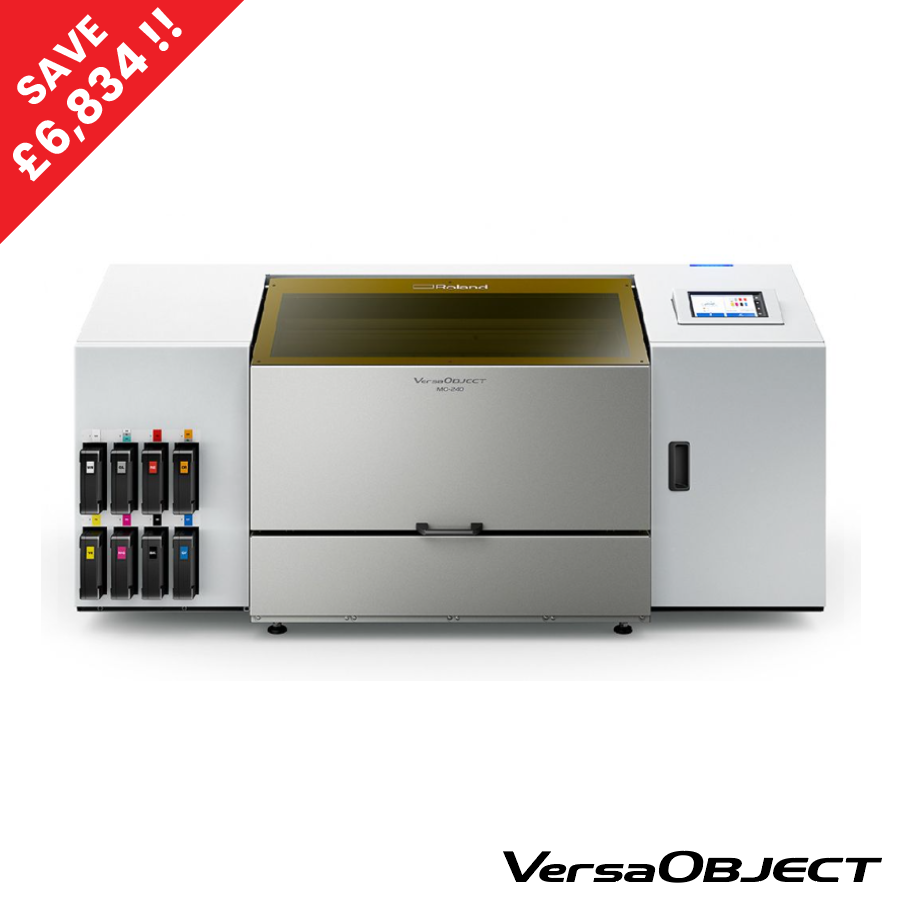

Special offer: £1,500 discount on the above price for a limited period. Offer price is £24,999.00 + VAT.Leasing from £141 + vat. per week
- Description
- Specifications
Description
Expand your business with high-definition, high-speed digital printing thanks to the VersaOBJECT MO-240. Our advanced UV flatbed printer gives you the power to dominate a growing direct-print market through:
- High-Definition Print: Reproduce small letters, fine textures, gradations, and colour-matched graphics with ease.
- High Productivity: Do more with staggered printheads, powerful UV lamps, and an A2 print bed.
- Greater Flexibility: Print up to 204 mm, as standard and unlock cylindrical items with an optional attachment.
- Intuitive Interface: Now with touchscreen control and more powerful, easy-to-use VersaWorks software.
| Model | MO-240 | MO-180 |
| Printing Method | Piezo ink-jet method | |
| Attachable objects to be printed on Width |
Max. 640 mm (25.1 in.) | Max. 488 mm (19.2 in.) |
| Length | Max. 488 mm (19.2 in.) | Max. 335 mm (13.1 in.) |
| Thickness | Max. 204 mm (8 in.) | |
| Weight | Max. 8 kg (17.6 lb.) (When using a vacuum table: max. 4 kg [8.8 lb.]) | – |
| Printing width/printing length (width × length) | Max. 610 mm × 458 mm (24 in. × 18 in.) | Max. 458 mm × 305 mm (18 in. × 12 in.) |
| Ink Type |

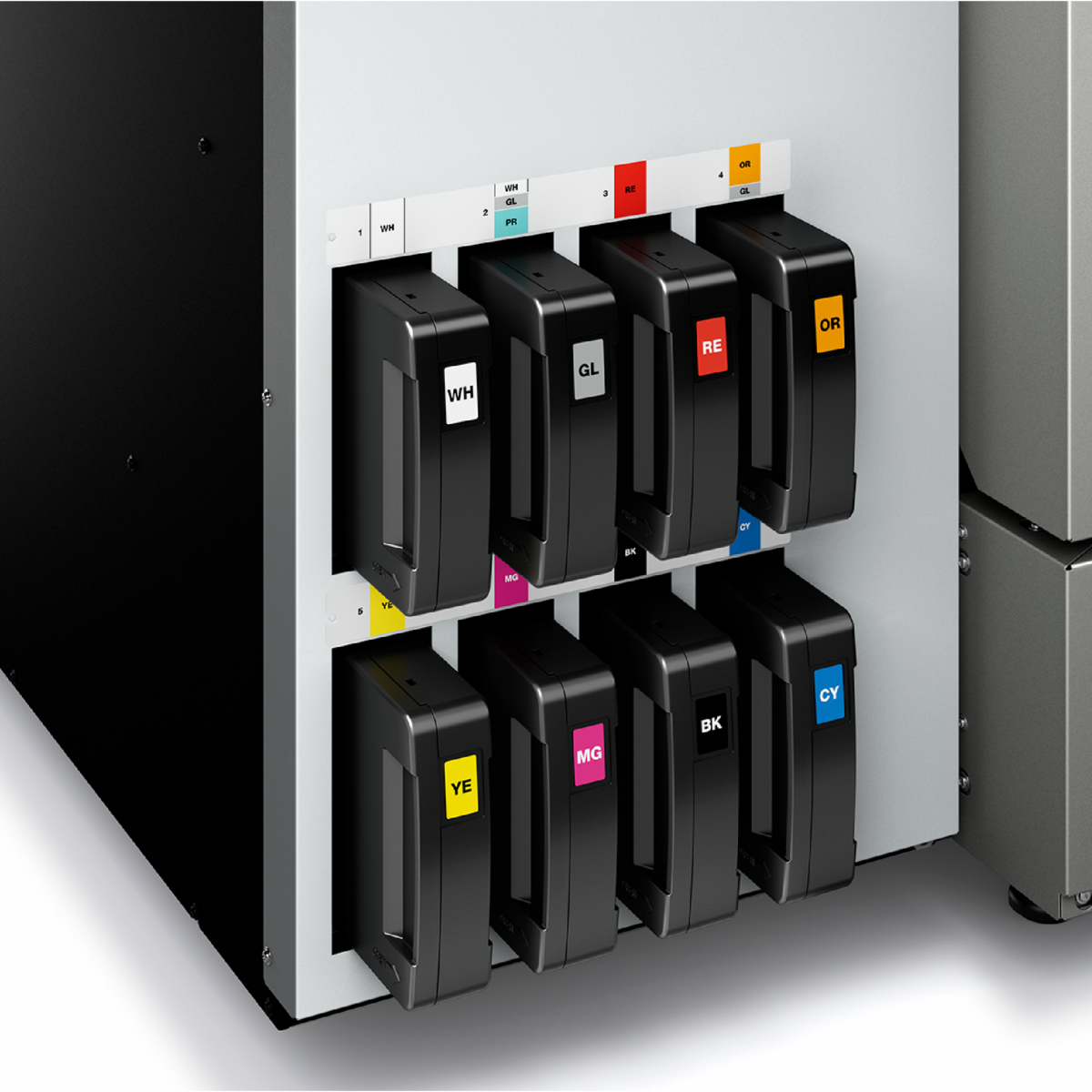

ECO-UV (EUV5P) 750 ml pouch | |
| Colours |
Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) Four colours (Cyan, Magenta, Yellow, Black) |
Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, Gloss, White, Red) and Primer Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, Red) Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) and Primer Six colours (Cyan, Magenta, Yellow, Black, Gloss, White) Four colours (Cyan, Magenta, Yellow, Black) |
| Ink-curing unit | Built-in UV-LED lamp | |
| Printing resolution (dots per inch) | Max. 1,200 dpi | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | 100 – 240 Va.c. 50/60 Hz 3.5A | |
| Power consumption During operation |
Approx. 290 W | |
| Sleep mode | Approx. 70 W | |
| Acoustic noise level During operation |
60 dB (A) or less | |
| During standby | 49 dB (A) or less | |
| Dimensions (width × depth × height) | 1,601 mm × 1,267 mm × 760 mm (63.1 in. × 49.9 in. × 30.0 in.) | 1,449 mm × 961 mm × 760 mm (57.1 in. × 37.9 in. × 30.0 in.) |
| Weight | 211 kg (465.18 lb.) | 174 kg (383.61 lb.) |
| Environment During operation(*1) |
Temperature: 20 to 32 °C (68 to 89.6 °F), Humidity: 35 to 80 %RH (no condensation) | |
| Not operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 %RH (no condensation) | |
| Included Items | Power cord, cleaning liquid, drain bottle, User’s Manual, software (VersaWorks, Roland DG Connect) etc. | |
| *1 Operating environment (Use the machine in an operating environment within these ranges.) | ||
