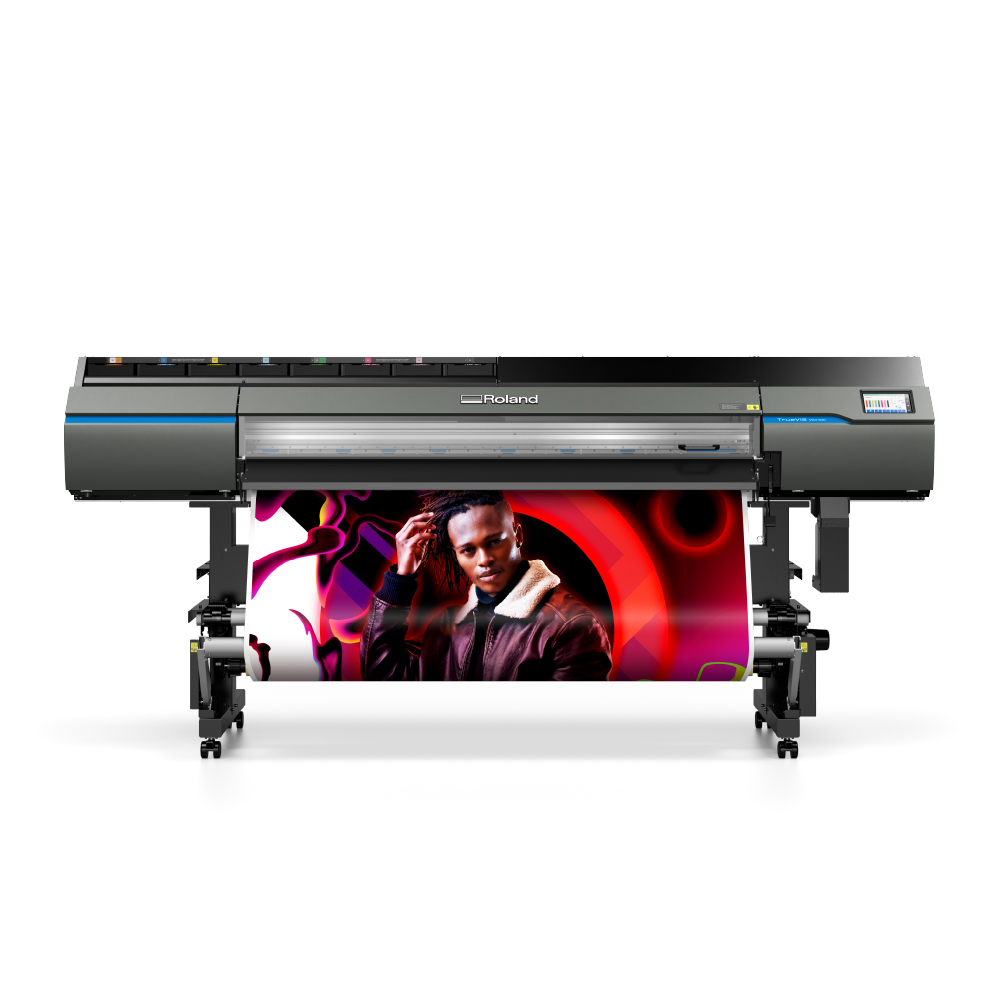

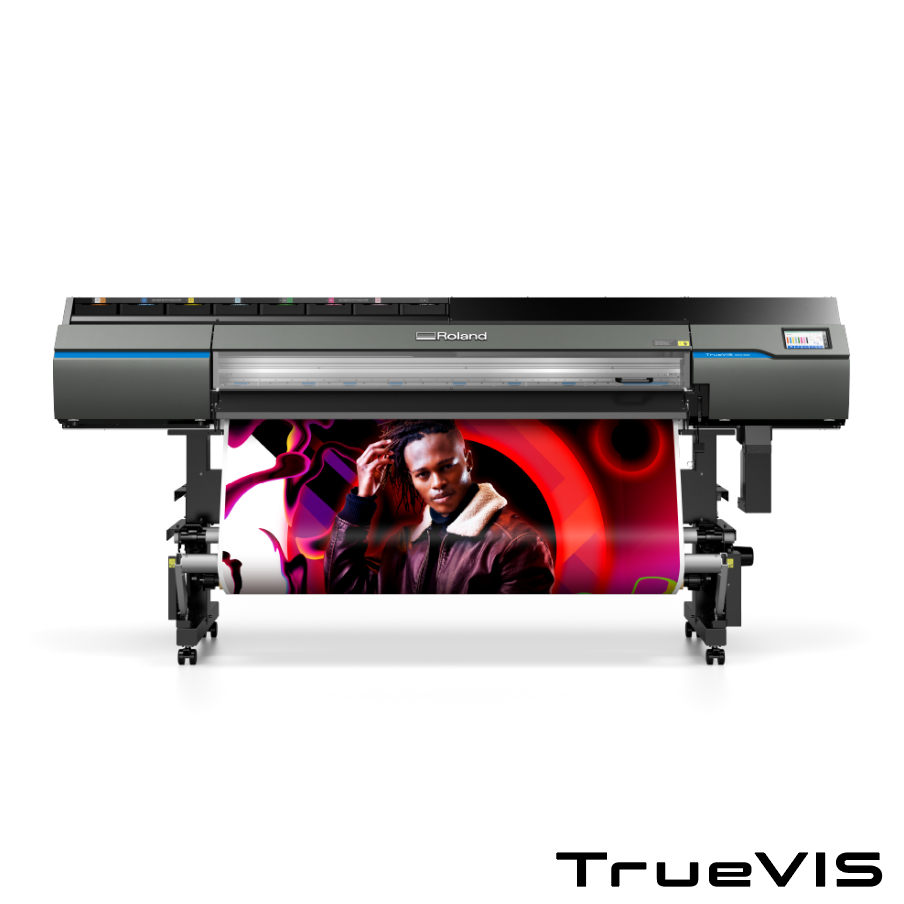

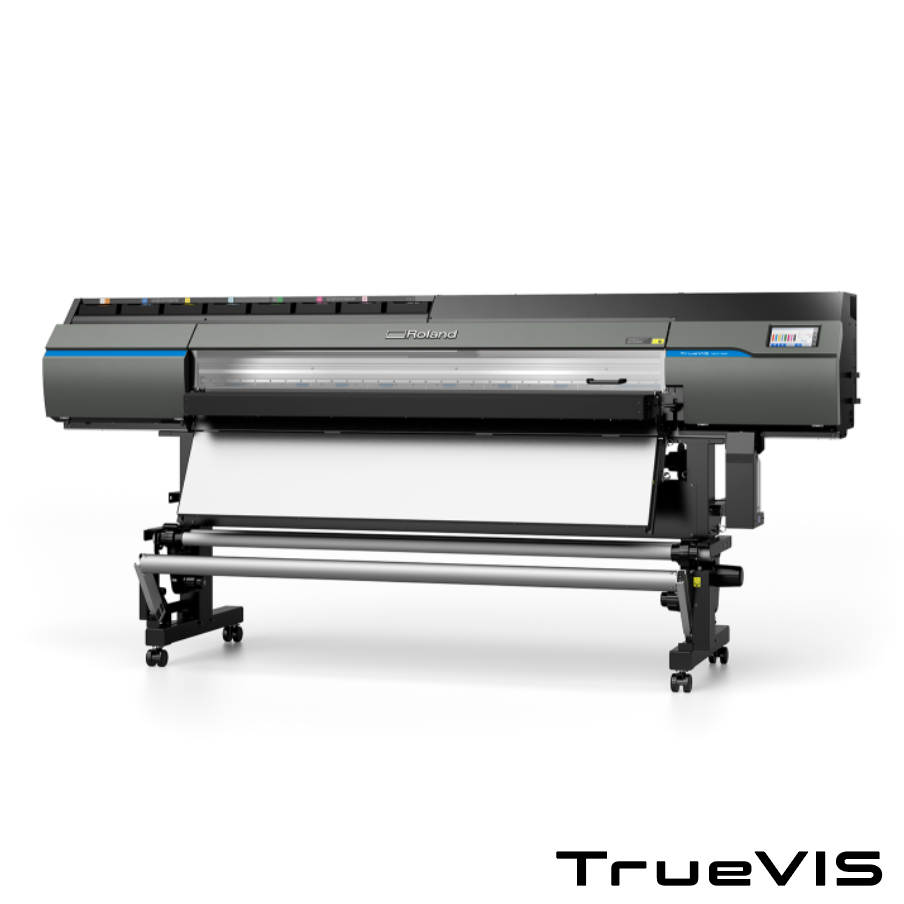

Roland VG3-640 8-Colour Printer/Cutter

New for 2022 – The Roland 1625mm (64″) 8-Colour Printer/Cutter with automated Take-up System perfect for heat transfers, labels, stickers and wide format graphics such as vehicle wraps, pop-ups, wallpaper and posters.

From £16,999 + VAT

Spread your payments with our Leasing and Finance facilities.
From £83.64 + VAT per week

    Thank you for requesting this brochure

    Please email me the brochure and specifications to:


    Would you prefer to discuss your requirements with one of our product specialists? Call now: 02392 590281

    Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

    Forever transfers papers are only suitable for use with LASER PRINTERS.

    Description

    Print-Laminate-Cut Workflow

    True Excellence, Outstanding Colour and Highly Reliable Print & Cut

    TrueVIS, the all-in-one solution that has transformed thousands of businesses worldwide, is now entering a new stage of evolution for the digital age. Elevate your company with a winning partnership and grow your business with confidence.

    Features:

    • Fast and easy set-up
    • Integrated Print & Cut
    • Prints ready to laminate and apply in 6 hours for same day installation
    • Exceptional flexibility & versatility
    • TrueVis ink technology
    • Expanded colour output
    • Low running costs
    • Take up system included
    • One year Roland onsite warranty
    • Roland Versaworks RIP software
    VG3-640 VG3-540
    Printing method Piezo ink-jet method
    Media Width 335 to 1,625 mm (13.2 to 64 in.) 295 to 1,371 mm (11.7 to 54 in.)
    Thickness Max. 1.0 mm (39.3 mil) with liner, for printing

    Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting

    Roll outer diameter Max. 250mm (9.8 in)
    Roll weight Max. 45kg (99lb) Max. 35kg (77lb)
    Core diameter (*1) 76.2mm (3 in) or 50.8mm (2 in)
    Printing/cutting width (*1) Max. 1,600 mm (62.9 in.) Max. 1,346 mm (52.9 in.)
    Ink Type TrueVIS INK 500 ml pouch (only white 250 ml)
    Colours Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and white)

    Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, light black, and orange)

    Eight colors (cyan, magenta, yellow, black, light black, orange, green and white)

    Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, orange, and green)

    Seven colors (cyan, magenta, yellow, black, light black, orange, and green)

    Four colors (cyan, magenta, yellow, and black)

    Printing resolution (dots per inch) Max. 1,200 dpi
    Cutting speed 10 to 300m/s (0.39 to 11.8 in/s)
    Blade force (*2) 30 to 500 gf
    Blade Type Roland CAMM-1 series blade
    Offset 0.000 to 1.500mm (0.0 to 59 mil)
    Software resolution (when cutting) 0.025mm/step (0.98 mil/step)
    Media Heating System (*3) Print heater set temperature: 30 to 45 °C (86 to 113 °F) Print heater set temperature: 30 to 55 °C (86 to 131 °F)
    Connectivity Ethernet (100BASE-TX/1000BASE-T, Automatic Switching)
    Power-saving function Automatic sleep feature
    Power Requirement 100-120/220-240 Va.c.

    50/60 Hz 8.0/4.1 A

    100-120/220-240 Va.c.

    50/60 Hz 8.0/4.1 A

    Power Consumption During operation Approx. 1,090 W

    Sleep Mode Appox. 50W

    During operation Approx. 1,090 W

    Sleep Mode Appox. 50W

    Acoustic Noise Level During operation – 63dB (A) or less

    During standby – 53dB (A) or less

    During operation – 63dB (A) or less

    During standby – 53dB (A) or less

    Dimensions (Width x Depth x Height) 2,886 mm × 748 mm × 1,320 mm (113.7 in. x 29.5 in. x 52.0 in.) 2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.)
    Weight 203 kg (448 lb.) 189 kg (417 lb.)
    Environment During Operation Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation)
    Not Operating Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
    Included Items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software(VersaWorks, Roland DG Connect), etc.

    *1 – The length of printing or cutting is subject to the limitations of the program.

    *2 –  500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.

    *3 – Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
