Description

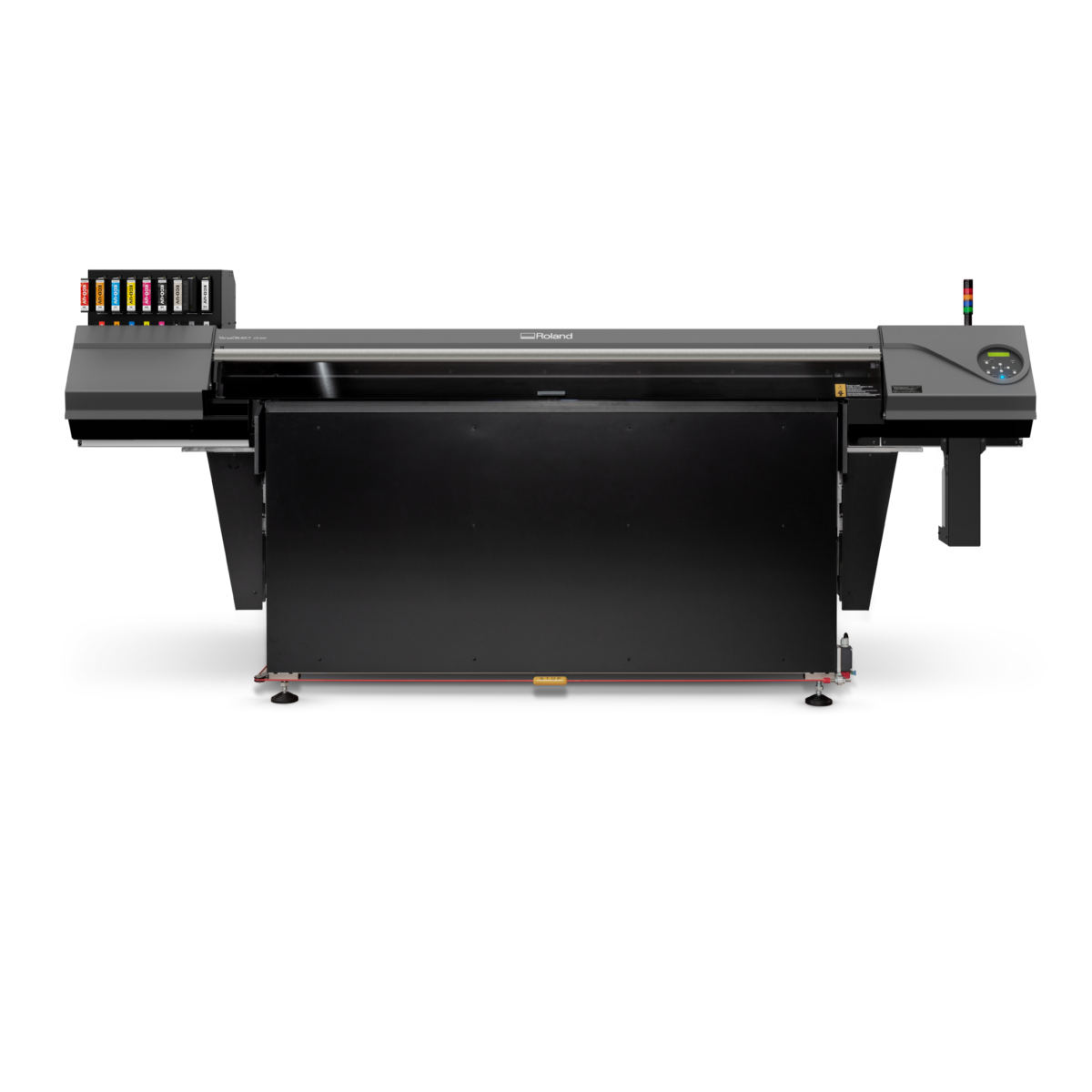

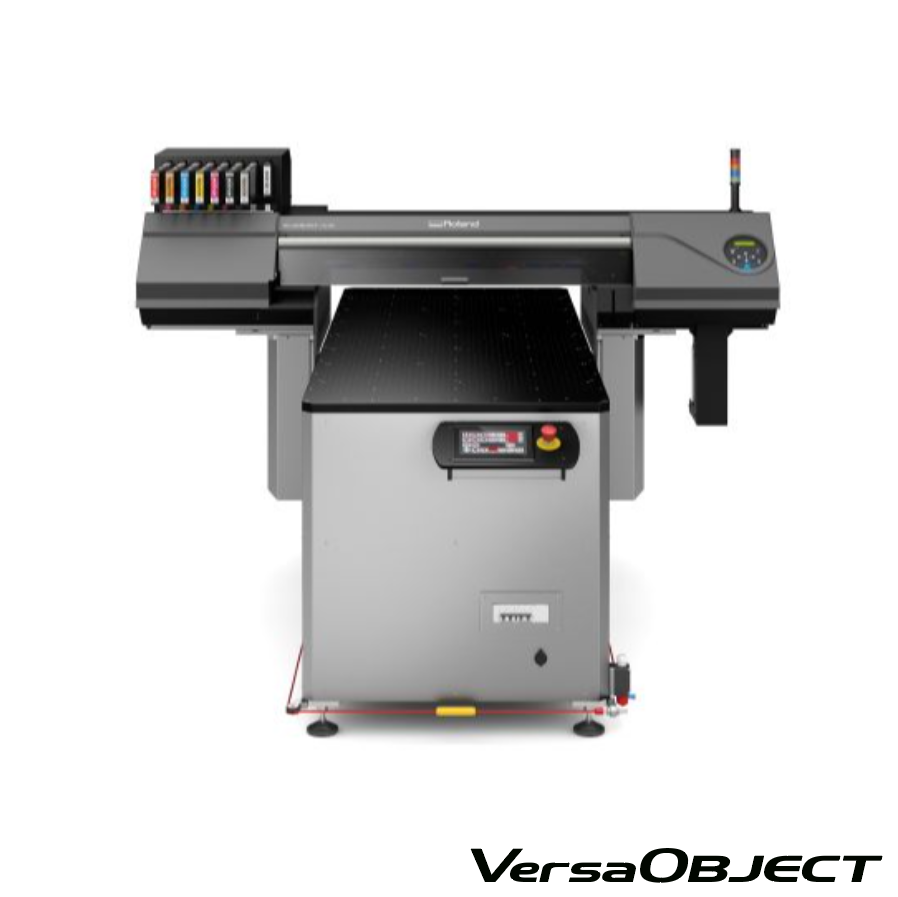

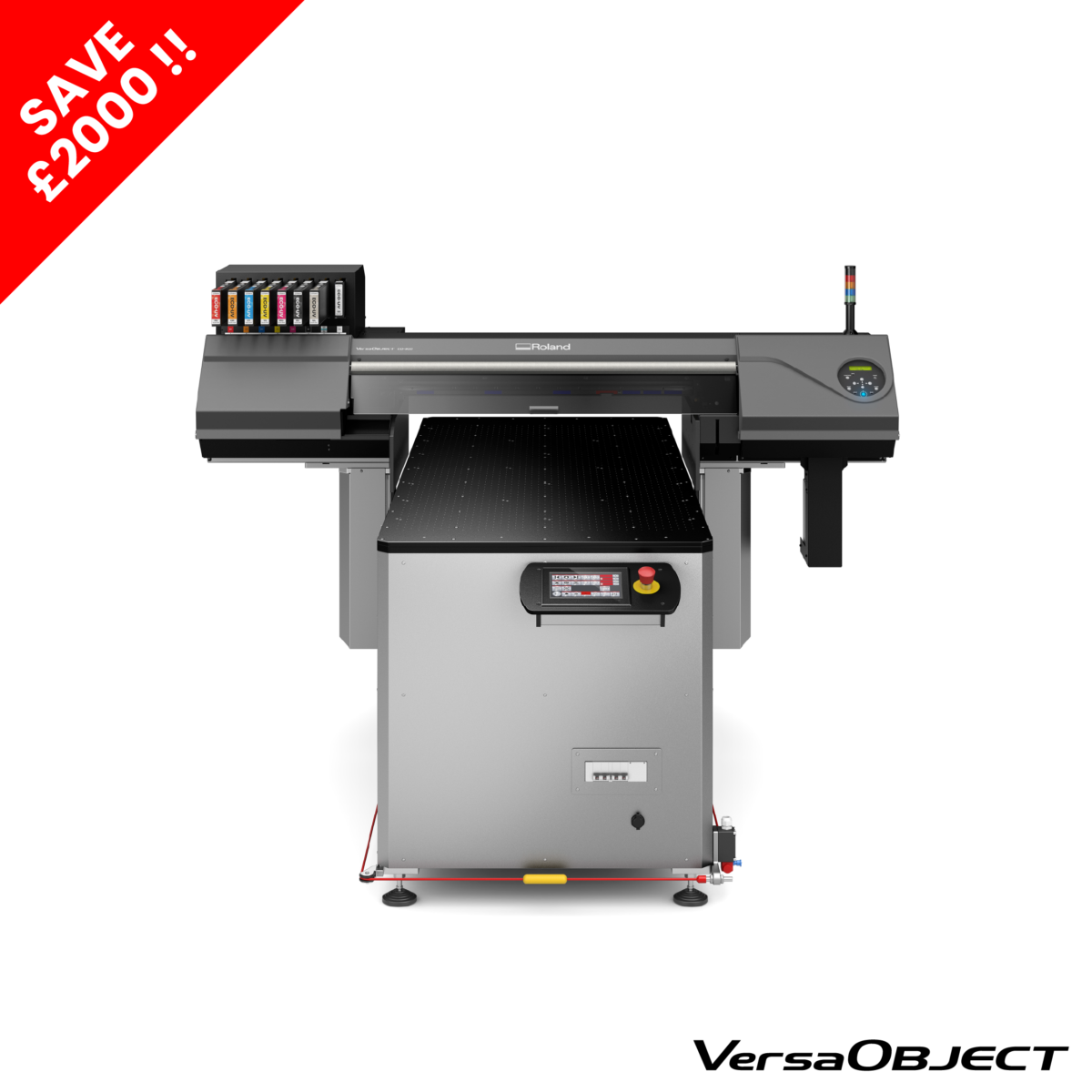

Flatbed UV Printers
Take object customisation to new heights with the VersaOBJECT CO Series of UV flatbed printers. Digital UV printing has never been more versatile and the CO Series is the perfect solution for customising boards, objects up to 200 mm in height and even irregular 3D objects.
- Premium quality direct-to-object or substrate printing.
- Special effect printing for added-value products.
- High-volume object customisation and personalisation.
- Available in a size and configuration to suit your business.
| Model | MG-640 | MG-300 | ||
| Printing method | Piezo ink-jet method | |||
| Media | Width | 210 to 1625 mm (8.3 to 64 in.) | 182 to 762 mm (7.2 to 30 in.) | |
| Thickness | Max. 1.0 mm (39.3 mil) with liner, for printing | |||
| Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting | ||||
| Roll outer diameter | Max. 210 mm (8.2 in.) | |||
| Roll weight | Max. 40 kg (88 lb.) | Max. 25 kg (55 lb.) | ||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | |||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | Max. 736 mm (28.9 in.) | ||
| Ink | Type | ECO-UV (EUV5) 220 ml cartridge (white) | ||
| ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer) | ||||
| Colors | Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss) | |||
| Eight colors (cyan, magenta, yellow, black, red, orange, white) | ||||
| Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer | ||||
| Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer | ||||
| Six colors(cyan, magenta, yellow, black, white, gloss) and primer | ||||
| Six colors(cyan, magenta, yellow, black, white, gloss) | ||||
| Four colors(cyan, magenta, yellow, black) | ||||
| Ink curing unit | Built-in UV-LED lamp | |||
| Print resolution (dots per inch) | Max. 1440 dpi | |||
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in./s) | |||
| Blade force 2 | 30 to 500 gf | |||
| Blade | Type | Roland CAMM-1 series blade | ||
| Offset | 0 to 1.500 mm (0 to 59 mil) | |||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | |||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||
| Power-saving function | Automatic sleep feature | |||
| Power requirements | 100-240 Va.c. 50/60Hz 2.8 A | 100-240 Va.c. 50/60Hz 2.7 A | ||
| Power consumption | During operation | Approx. 250 W | Approx. 240 W | |
| Sleep mode | 40 W | |||
| Acoustic noise level | During operation | 63 dB (A) or less | ||
| During standby | 53 dB (A) or less | |||
| Dimensions (with stand) | 2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.) | 1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.) | ||
| Weight (with stand) | 163 kg (360 lb.) | 125 kg (276 lb.) | ||
| Environment | During operation 3 | Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation) | ||
| Not operating | Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | |||
