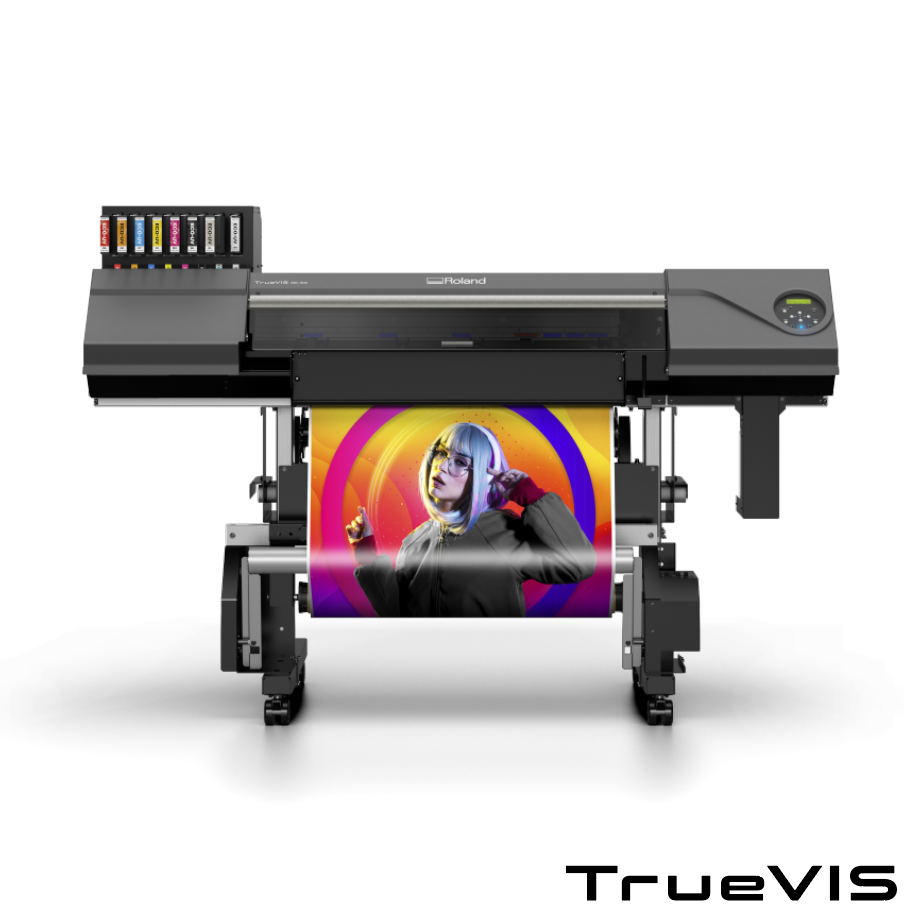

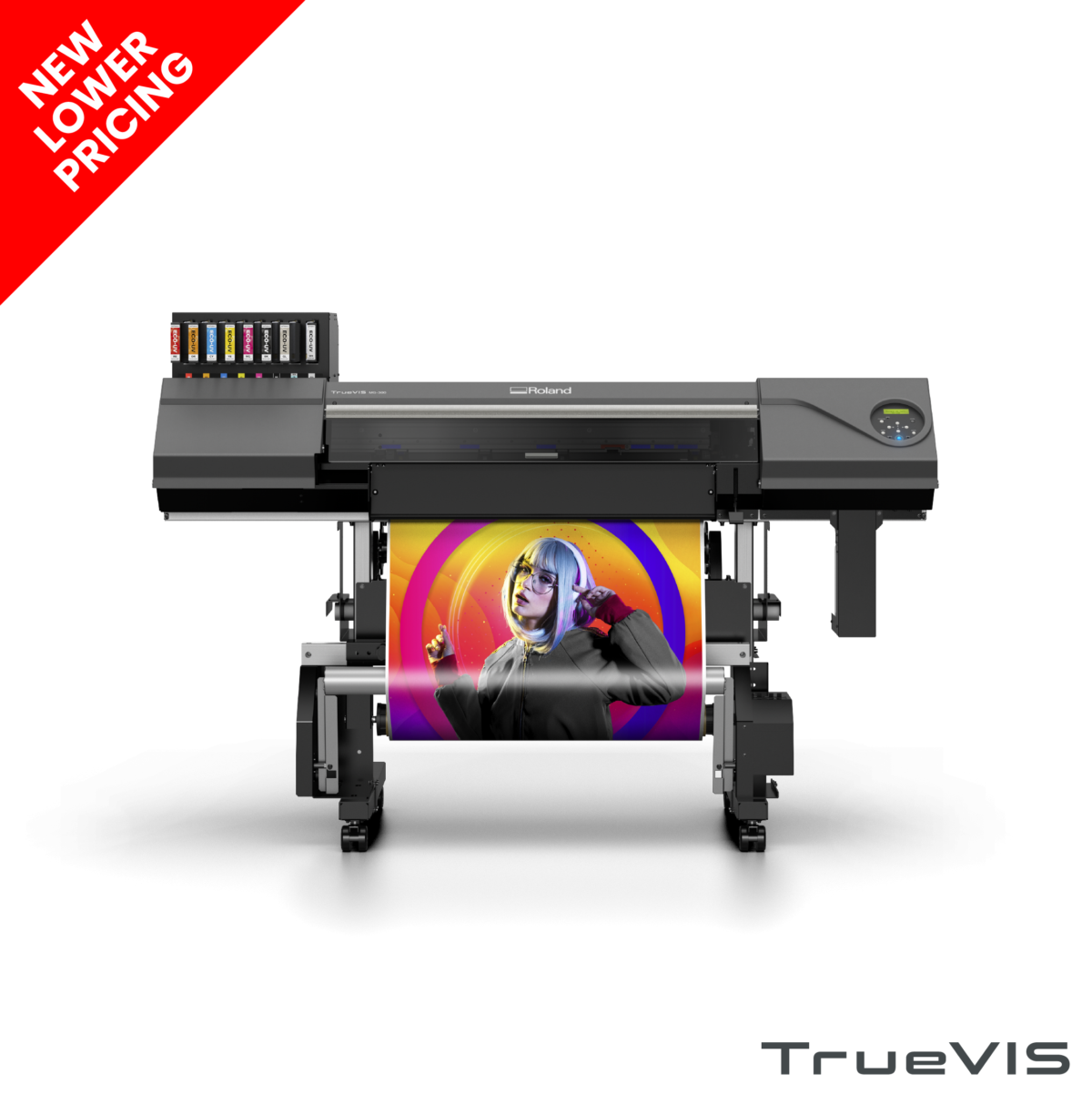

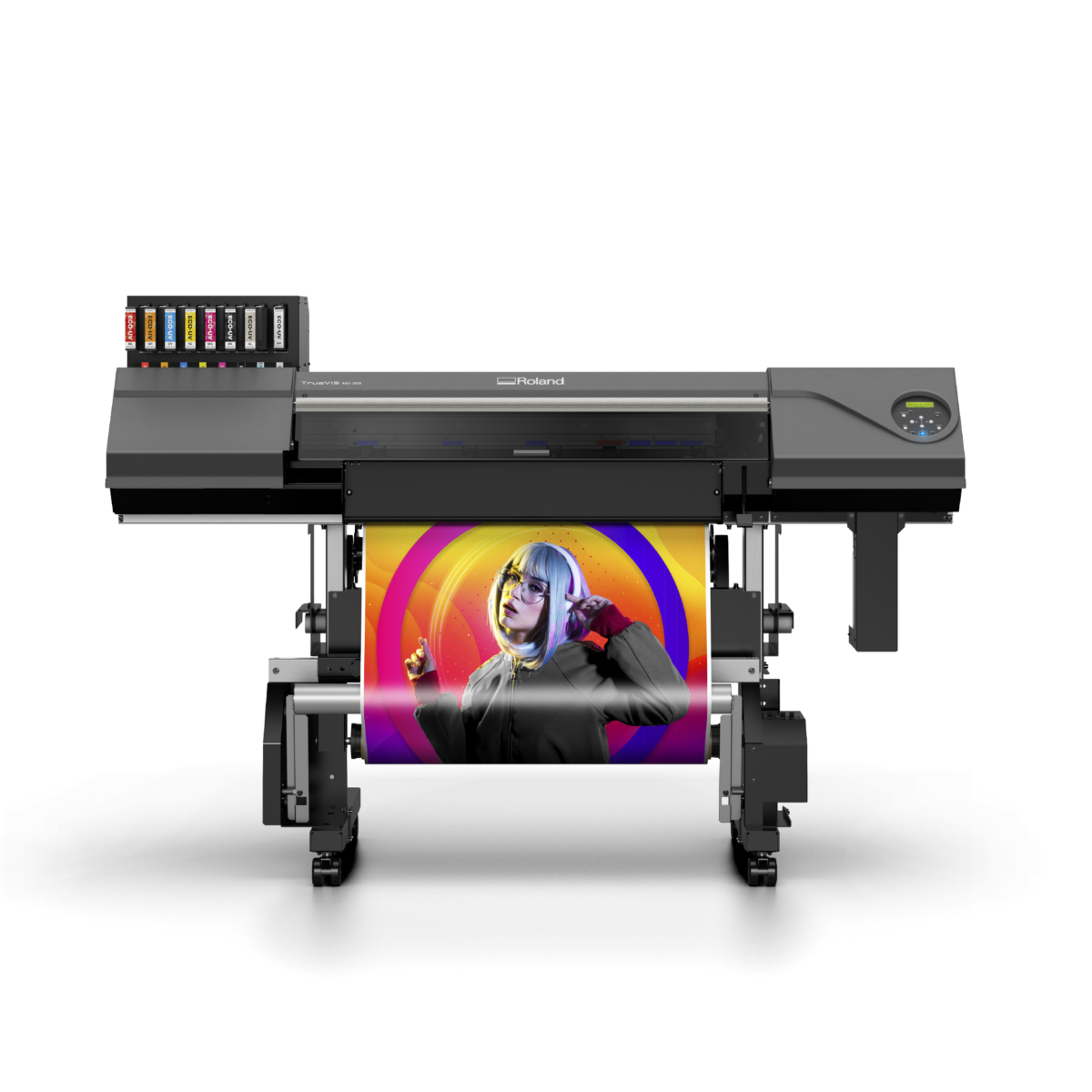

Roland TrueVIS MG-300

Call 02392 590 281
Download Brochure

Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

Forever transfers papers are only suitable for use with LASER PRINTERS.

Description

Built for Versatility

Combining TrueVIS heritage, Print & Cut capabilities and the benefits of UV-LED printing, the MG add a new dimension to graphic printing. Latest generation UV inks print onto a vast range of media and the cool running LED lamps ensure optimum curing. Special inks such as White, Gloss and Printable Primer allow for premium finishes for many applications and the additional Red and Orange inks produce high quality print reproduction and simplified spot colour matching.

  • Performance: Successor product of LEC2 devices
  • Value: Sharing core functionality of the LG Series at a more affordable price
  • Color Reproduction: Red & Orange inks compliment the colour gamut available from the 500ml cartridge supplied EUV5 inks
  • Opportunities: Target new markets and decorate more substrates by combining UV Decal ink to EUV5
  • Versatility: Compatible with optional extension table ET-30/64 for printing to semi-rigid substrates and tension bar TB-30 for flexible packaging printing.
Model MG-640 MG-300
Printing method Piezo ink-jet method
Media Width 210 to 1625 mm (8.3 to 64 in.) 182 to 762 mm (7.2 to 30 in.)
Thickness Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Roll outer diameter Max. 210 mm (8.2 in.)
Roll weight Max. 40 kg (88 lb.) Max. 25 kg (55 lb.)
Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1 Max. 1600 mm (62.9 in.) Max. 736 mm (28.9 in.)
Ink  Type ECO-UV (EUV5) 220 ml cartridge (white)
ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
Colors Eight colors (cyan, magenta, yellow, black, red, orange, white, gloss)
Eight colors (cyan, magenta, yellow, black, red, orange, white)
Seven colors(cyan, magenta, yellow, black, red, orange, white) and primer
Seven colors(cyan, magenta, yellow, black, red, white, gloss) and primer
Six colors(cyan, magenta, yellow, black, white, gloss) and primer
Six colors(cyan, magenta, yellow, black, white, gloss)
Four colors(cyan, magenta, yellow, black)
Ink curing unit Built-in UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Cutting speed  10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2 30 to 500 gf
Blade   Type Roland CAMM-1 series blade
Offset 0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100-240 Va.c. 50/60Hz 2.8 A 100-240 Va.c. 50/60Hz 2.7 A
Power consumption During operation  Approx. 250 W Approx. 240 W
Sleep mode 40 W
Acoustic noise level During operation  63 dB (A) or less
During standby  53 dB (A) or less
Dimensions (with stand)  2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.) 1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.)
Weight (with stand) 163 kg (360 lb.) 125 kg (276 lb.)
Environment During operation 3 Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation)
Not operating Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
