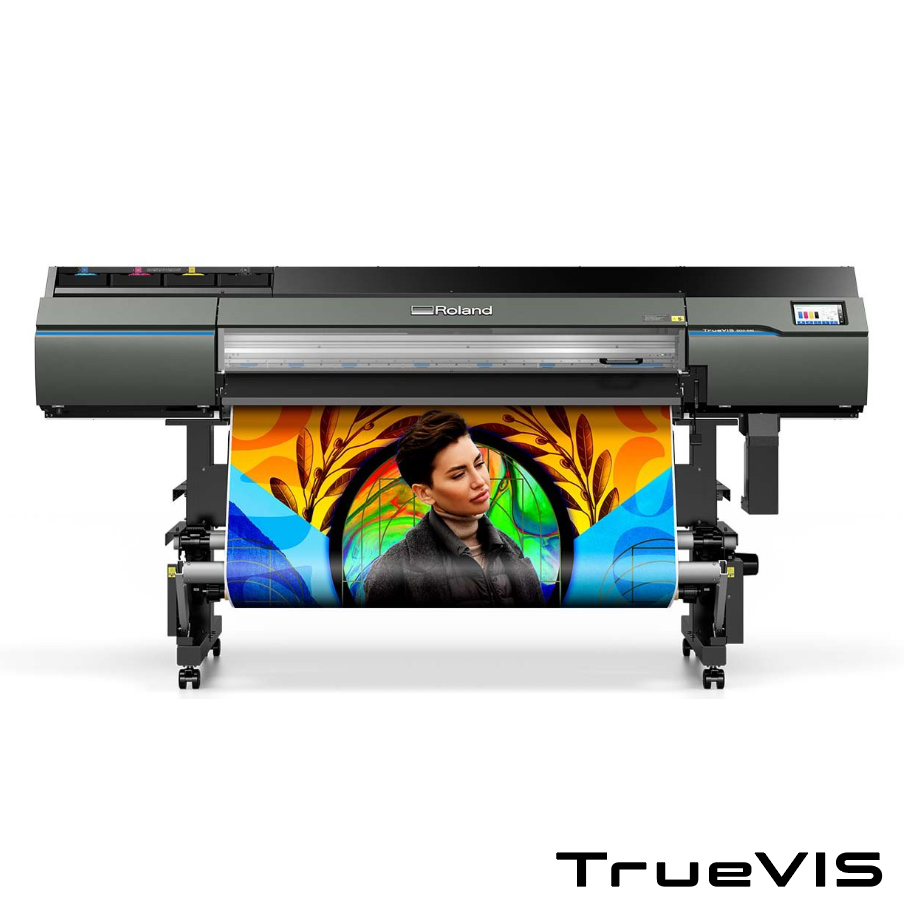

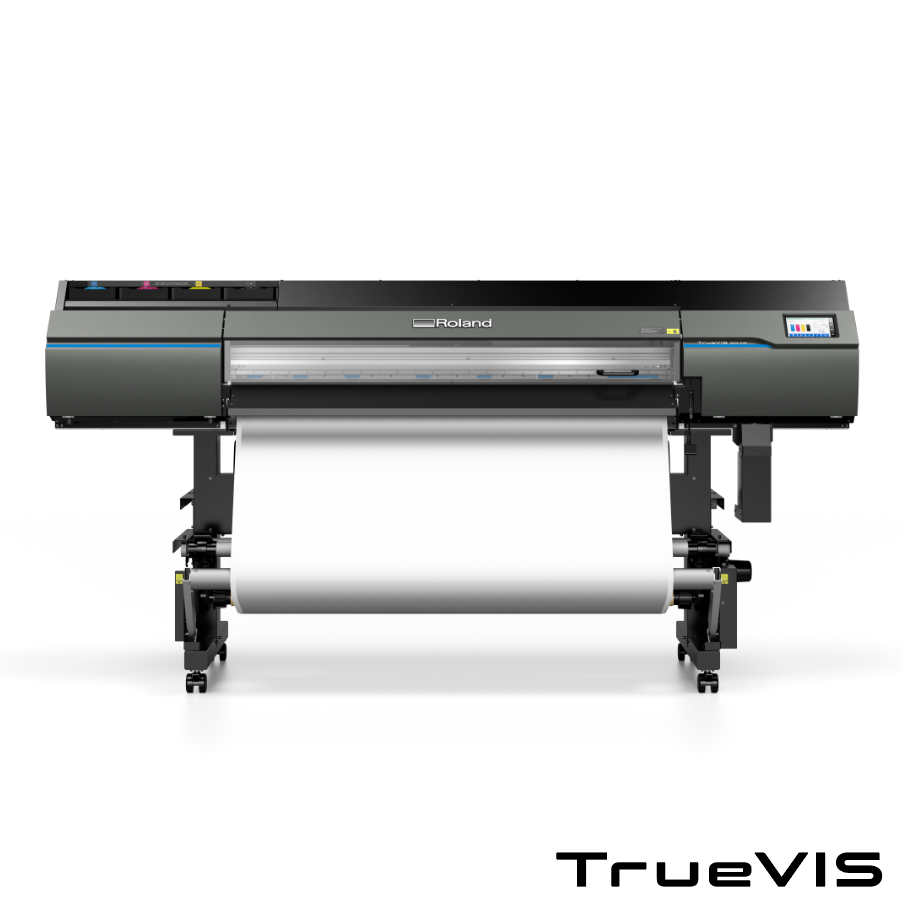

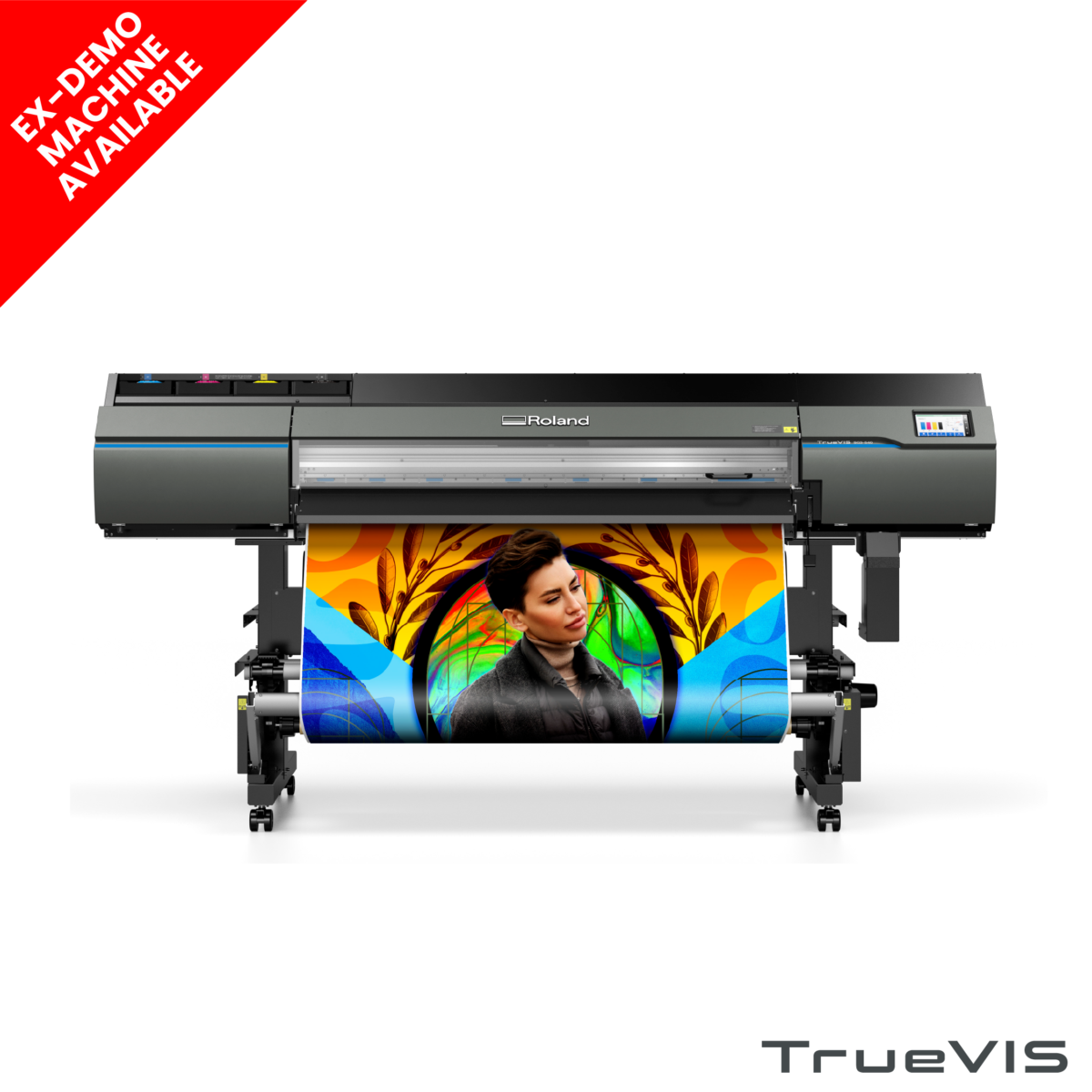

Roland SG3-540 4-Colour Printer/Cutter
New for 2022 – The Roland 1371mm (54″) 4-Colour Printer/Cutter with automated Take-up System, perfect for runs of heat transfers, decals, small signs, partial wraps, and more.
Spread your payments with our Leasing and Finance facilities.
From £57.67 + VAT per week
- Description
- Specifications
Description
True Excellence, Outstanding Colour and Highly Reliable Print & Cut
TrueVIS, the device that launched countless businesses, is now entering a new stage of evolution for the digital age. Start your business with a winning partnership and get the best chance for success.
The Roland TrueVis SG3 (4 Colour) series are a true partner for your business. Whether you are just starting out or looking to take your business to the next level, then Roland print and cut delivers the trusted quality with a streamlined workflow with super-fast, same-day turnaround speeds you need.
Features:
- Fast and easy set-up
- Integrated Print & Cut
- Exceptional flexibility & versatility
- TrueVis ink technology
- Expanded colour output
- Low running costs
- Take up system included
- One year Roland onsite warranty
- Roland Versaworks RIP software
| SG3-540 | SG3-300 | |||
|---|---|---|---|---|
| Printing method | Piezo ink-jet method | |||
| Media | Width | 259 to 1,371mm (11.7 to 54 in) | 182 to 762mm (7.2 to 30in) | |
| Thickness | Max. 1.0mm (39.3mil) with liner, for printing
Max 0.4mm (15.7mil) with liner and 0.22mm (8.6mil) without liner, for cutting |
|||
| Roll outer diameter | Max. 250mm (9.8 in) | |||
| Roll weight | Max. 35kg (77lb) | Max. 30kg (66lb) | ||
| Core diameter (*1) | 76.2mm (3 in) or 50.8mm (2 in) | |||
| Printing/cutting width (*2) | Max. 1,346mm (52.9 in) | Max 736mm (28.9 in) | ||
| Ink | Type | TrueVIS INK 500 ml pouch | ||
| Colours | Four colours (cyan, magenta, yellow, and black) | |||
| Printing resolution (dots per inch) | Max. 1,200 dpi | |||
| Cutting speed | 10 to 300m/s (0.39 to 11.8 in/s) | |||
| Blade force (*3) | 30 to 500 gf | |||
| Blade | Type | Roland CAMM-1 series blade | ||
| Offset | 0.000 to 1.500mm (0.0 to 59 mil) | |||
| Software resolution (when cutting) | 0.025 mm/step (0.98mil/step) | |||
| Software resolution (when cutting) | 0.025mm/step (0.98 mil/step) | |||
| Media Heating System | Print heater set temperature: 30 to 45 °C (86 to 113 °F) | Print heater set temperature: 30 to 55 °C (86 to 131 °F) | ||
| Connectivity | Ethernet (100BASE-TX/1000BASE-5, Automatic Switching) | |||
| Power-saving function | Automatic sleep feature | |||
| Power Requirement | 100-120/220-240 Va.c.
50/60 Hz 8.0/4.1 A |
100-120/220-240 Va.c.
50/60 Hz 5.4/2.7 A |
||
| Power Consumption | During operation Approx. 1,090 W
Sleep Mode Appox. 50W |
During operation Approx. 710W
Sleep Mode Approx. 50W |
||
| Acoustic Noise Level | During operation – 63dB (A) or less
During standby – 53dB (A) or less |
During operation – 63dB (A) or less
During standby – 53dB (A) or less |
||
| Dimensions (Width x Depth x Height) | 2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.) | 2,022 mm × 748 mm × 1,320 mm (79.7 in. x 29.5 in. x 52.0 in.) | ||
| Weight | 183 kg (404 lb.) | 150 kg (331 lb.) | ||
| Environment | During Operation | Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation) | ||
| Not Operating | Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | |||
| Included Items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software(VersaWorks, Roland DG Connect), etc. | |||
*1 – The length of printing or cutting is subject to the limitations of the program.
*2 – 500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.
*3 – Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
