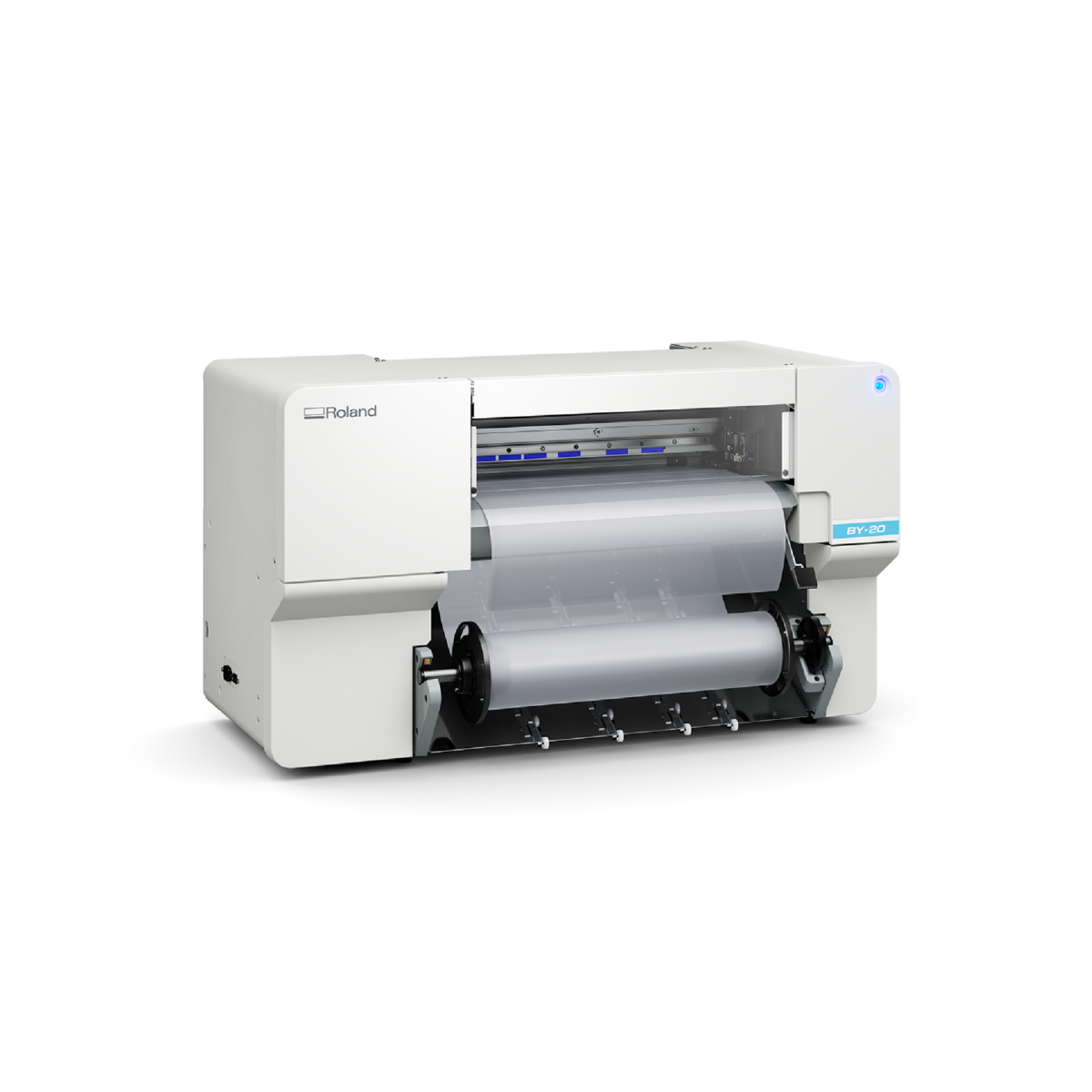

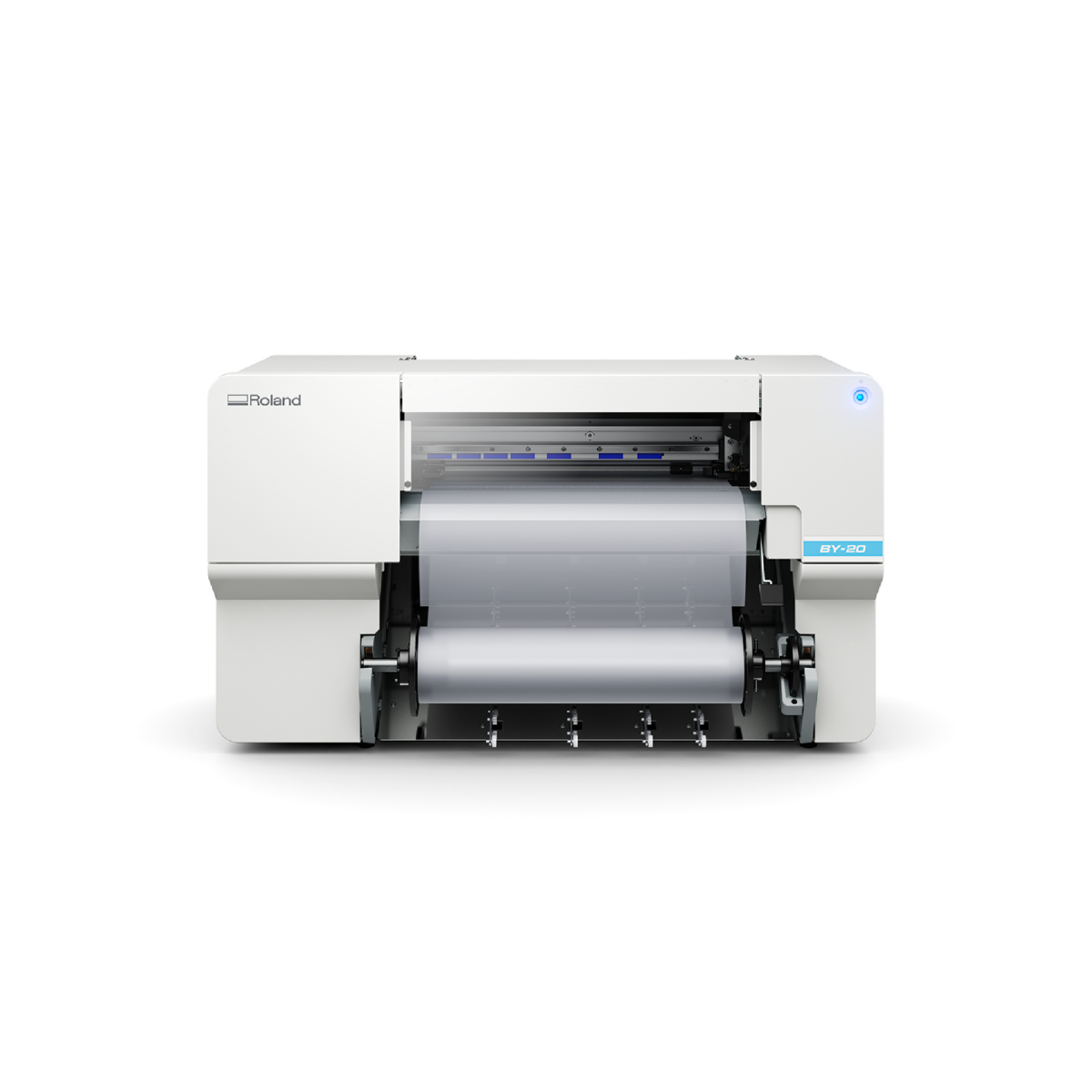

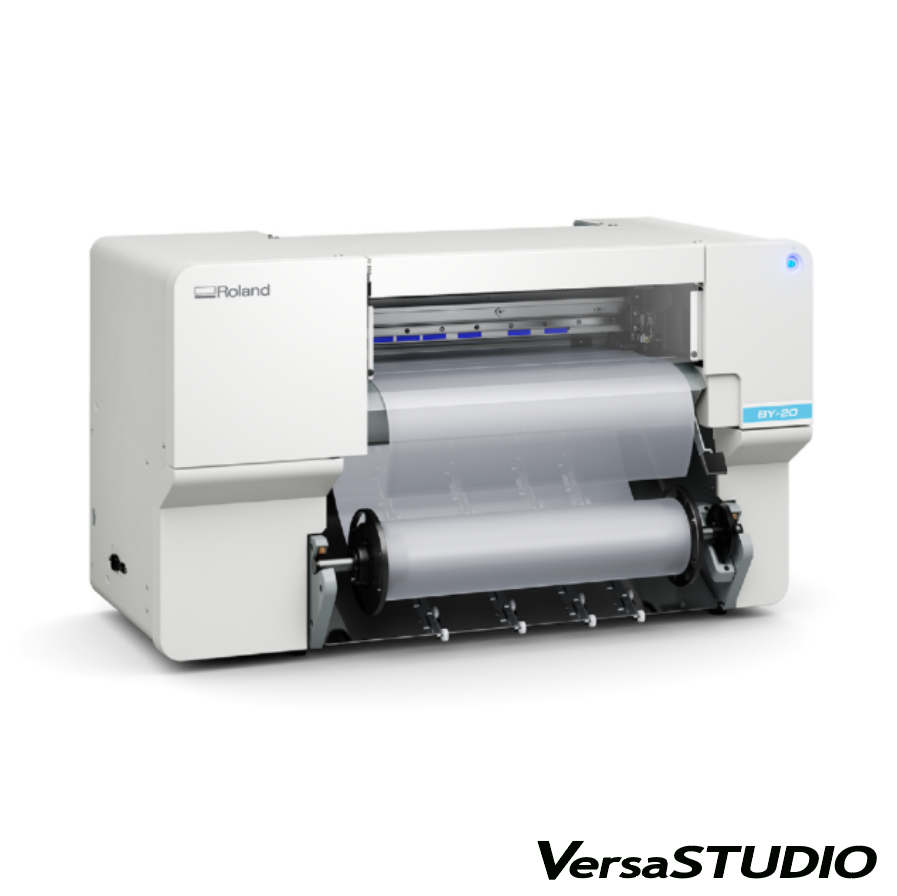

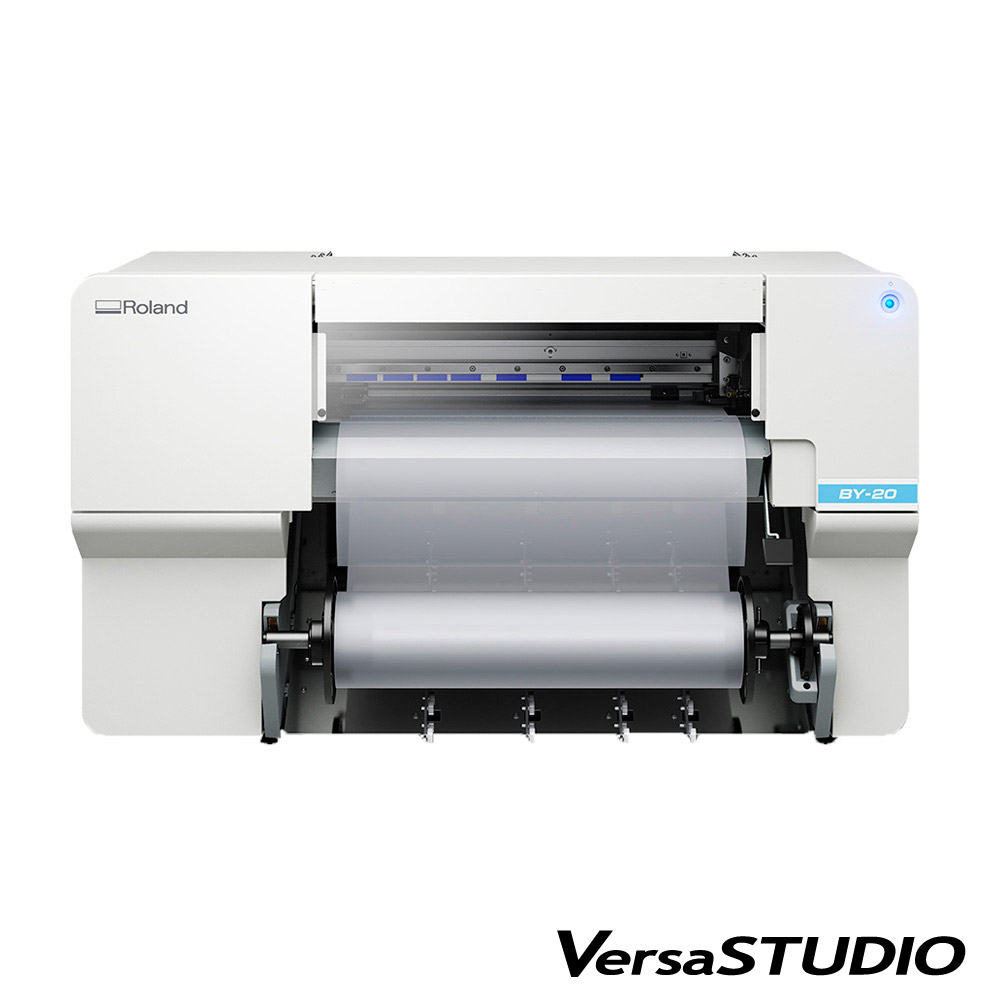

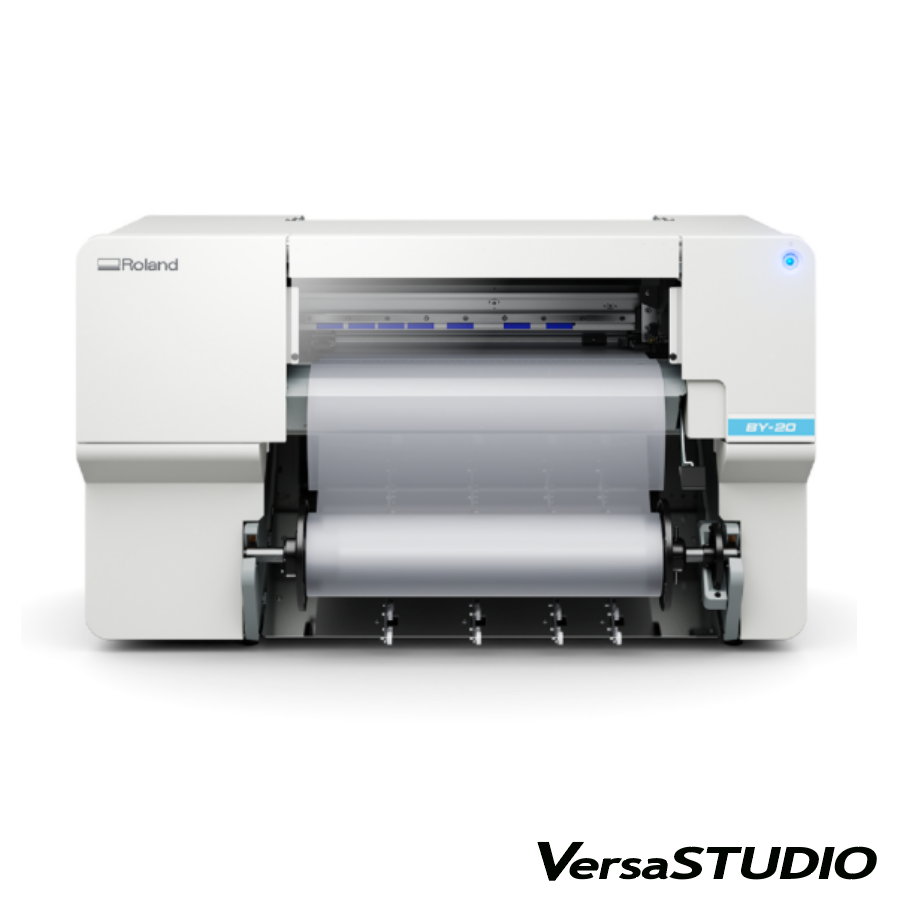

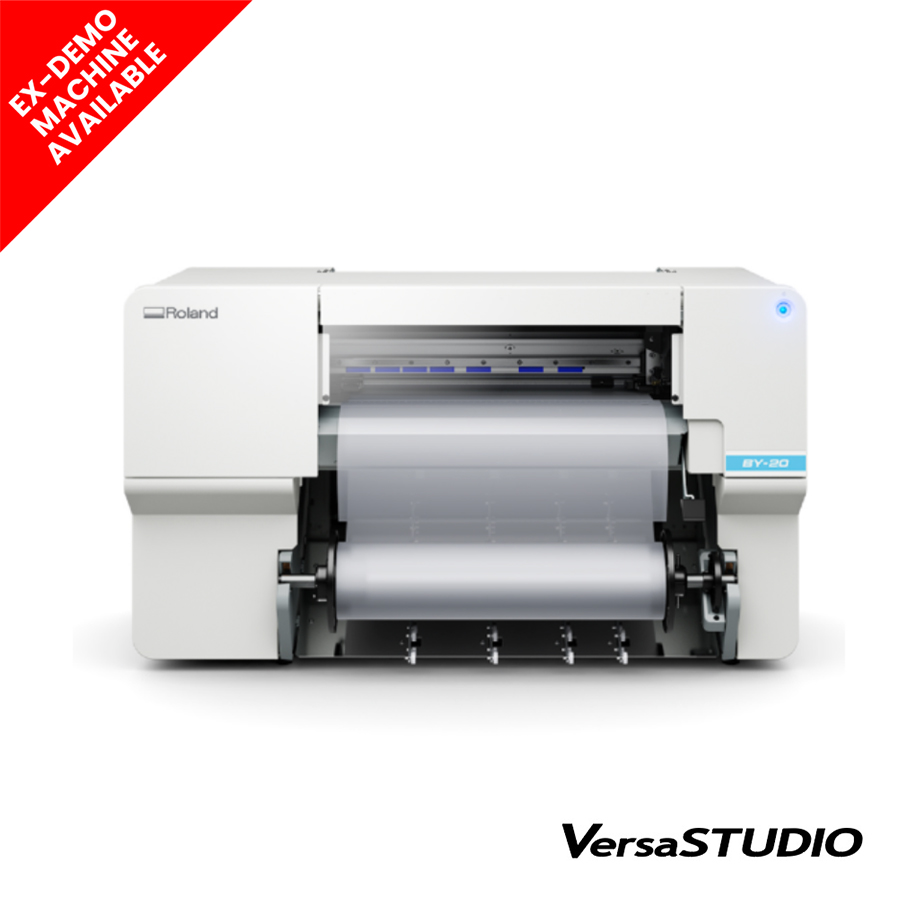

Roland VersaSTUDIO BY-20 DTF Printer
£6,999.00 +VAT (£8,398.80 inc VAT)
The all-new VersaSTUDIO BY-20 is the ultimate desktop direct-to-film printer…and more. Simple to use, reliable and efficient, the BY-20 makes decorating apparel and accessories with vibrant, detailed graphics quick and easy – even for those with no prior printing experience. Plus, with the BY-20’s integrated contour-cutting functionality, you can also produce heat transfer graphics from PVC sheets – all with a single, affordable compact device.
- Easy-to-use, compact, affordable DTF printer for those who want to start an apparel business, or for existing DTF users seeking to expand their current product offerings
- Prints vibrant, detailed DTF graphics that can be transferred to a wide variety of fabrics with no weeding required
- The only desktop DTF printer with sheet cut and contour-cutting capabilities – can also be used for traditional print and cut applications
- Optimized print modes for improved productivity
- Description
Description
| BY-20 | ||
| Printing Method | Piezo ink-jet method | |
| Media | Width | 5.91 to 20.2 in. (150 to 515 mm) |
| Thickness | Maximum 39.3 mil (1.0 mm) with liner, for printing | |
| Maximum 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting | ||
| Roll outer diameter | Maximum 5.9 in. (150 mm) | |
| Roll weight | Maximum 13.2 lb. (6 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing/cutting width (*1) | Maximum 18.89 in. (480 mm) | |

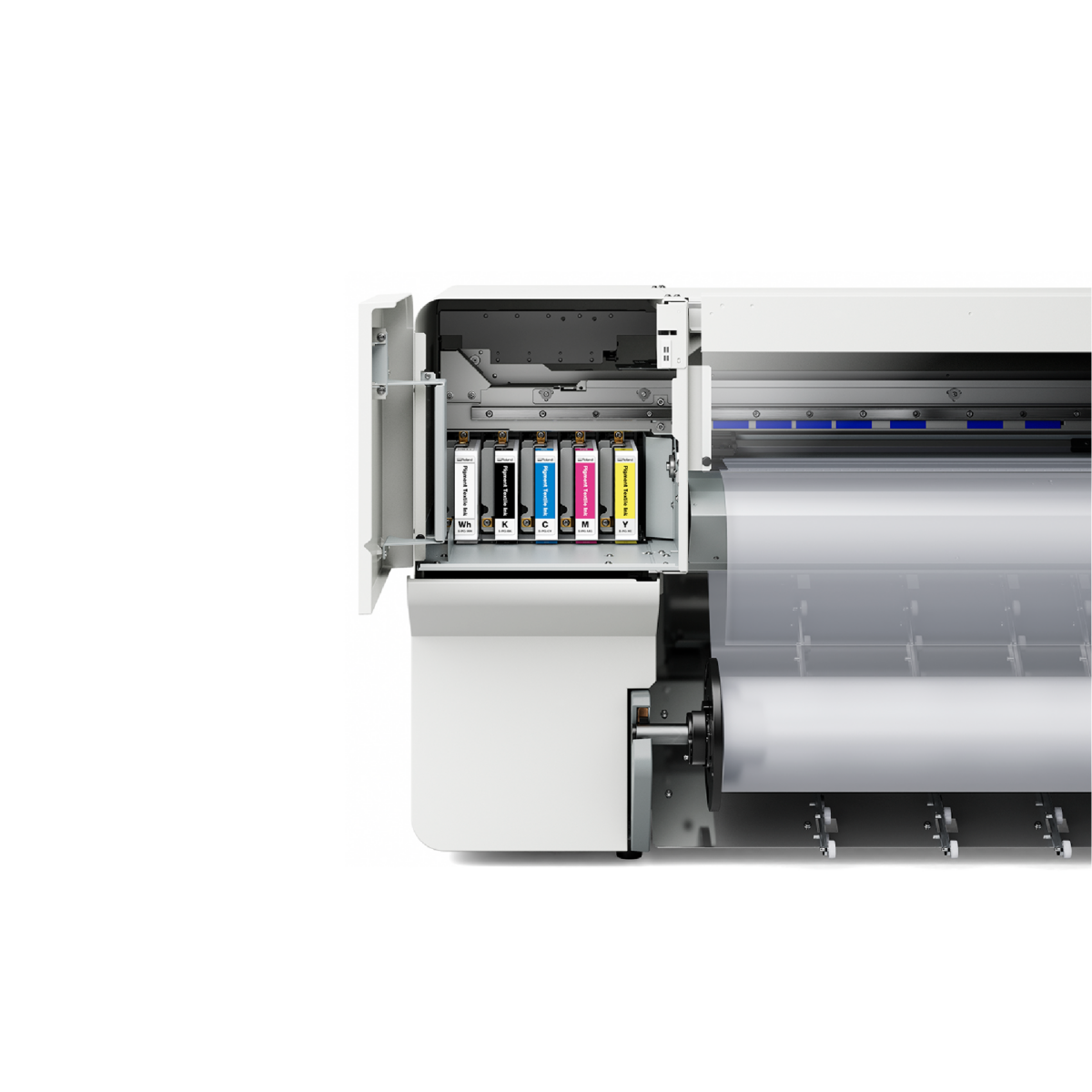

| Ink | Type | 220-ml cartridge |
| Colors | Cyan, Magenta, Yellow, Black, White | |
| Printing resolution (dots per inch) | Maximum 1,440 dpi | |
| Cutting speed | 0.39 to 5.9 in/s (10 to 150 mm/s) | |
| Blade force (*2) | 30 to 500 gf | |
| Blade | Type | Roland CAMM-1 series blade |
| Offset | 0.000 to 1.500 mm (0.0 to 59 mil) | |
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | |
| Media heating system (*3) | Print heater set temperature: | 86 to 95 °F (30 to 35 °C) |
| Dryer set temperature: | 86 to 100.4 °F (30 to 38 °C) | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Rated input | 100-240 Va.c. 50/60 Hz 2.1 A | |
| Power consumption | During operation | Approx. 185 W |
| Sleep mode | Approx. 27W | |
| Acoustic noise level | During operation | 62 dB (A) or less |
| During standby | 60 dB (A) or less | |
| Dimensions (Width x Depth x Height) | 42.1 in. × 24.3 in. × 24.5 in. (1,069 mm × 617 mm × 622 mm) | |
| Weight | 137 lb. (62 kg) | |
| Environment | During operation (*4) | Temperature: 68 to 89.6 °F (20 to 32 °C) |
| Humidity: 30 to 80 % RH (no condensation) | ||
| Not operating | Temperature: 41 to 104 °F (5 to 40 °C) | |
| Humidity: 20 to 80 % RH (no condensation) | ||
| Included items | Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, User’s Manual, Software (FlexiDESIGNER VersaSTUDIO Edition, VersaWorks, Roland DG Connect), etc. | |
| *1 | The length of printing or cutting is subject to the limitations of the program. | |
| *2 | 500 gf is the maximum instantaneous blade force. | |
| The blade force must be adjusted according to details such as the media thickness. | ||
| *3 | Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. | |
| Depending on the ambient temperature and media width, the preset temperature may fail to be reached. | ||
| *4 | Operating environment (Use in an operating environment within this range.) | |
