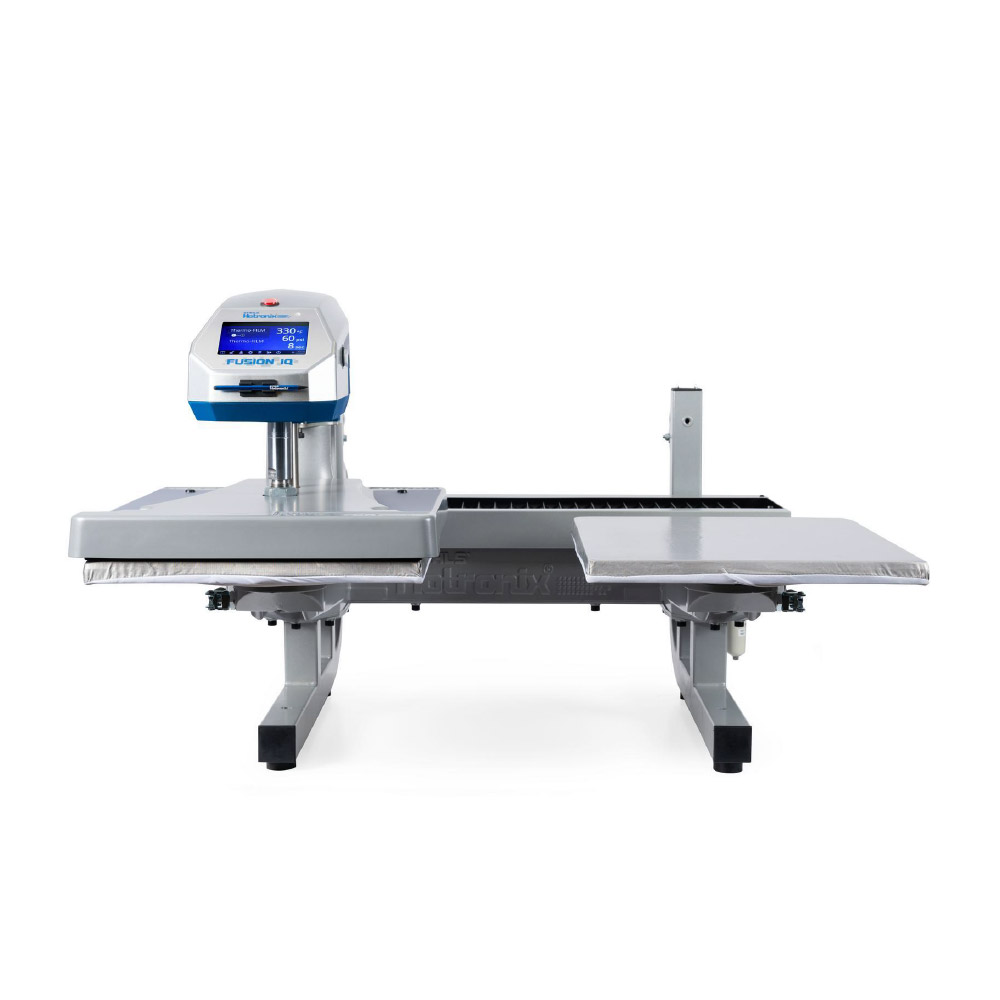

Hotronix Dual Air Fusion

£7,150.00 +VAT (£8,580.00 inc VAT)

Available as 40 x 50 cm (x2).

    Thank you for requesting this brochure

    Please email me the brochure and specifications to:

    Would you prefer to discuss your requirements with one of our product specialists? Call now: 02392 590281

    Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

    Forever transfers papers are only suitable for use with LASER PRINTERS.


    The high and medium volume garment decorators dream

    The Dual Air Fusion’s separate A and B work stations provide an efficient and dynamic range of workflows. It allows you to individually program your work stations with unique time, temperature and pressure settings for different heat transfer applications. The laser alignment system puts your jobs on target, each and every time. Four independently-adjustable lasers per platen enable precision alignment of graphics for the full front, left chest and numerous other applications.

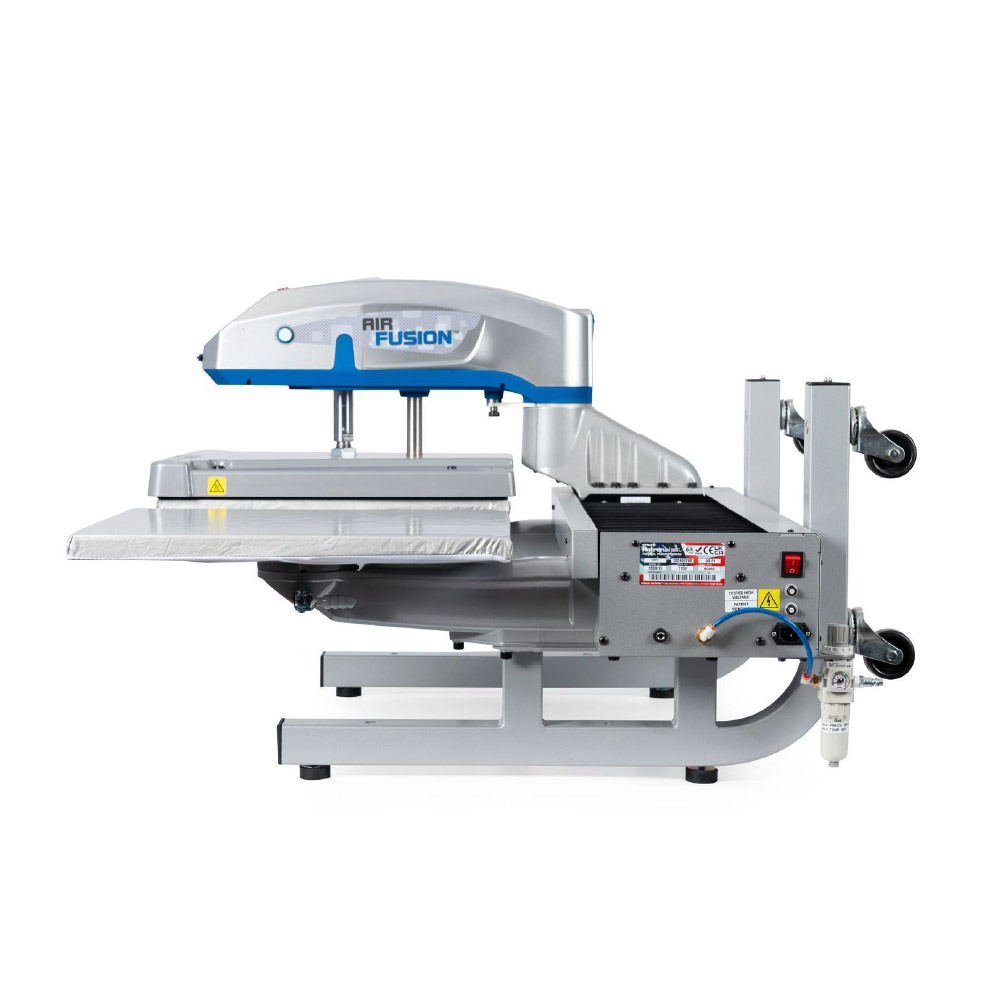

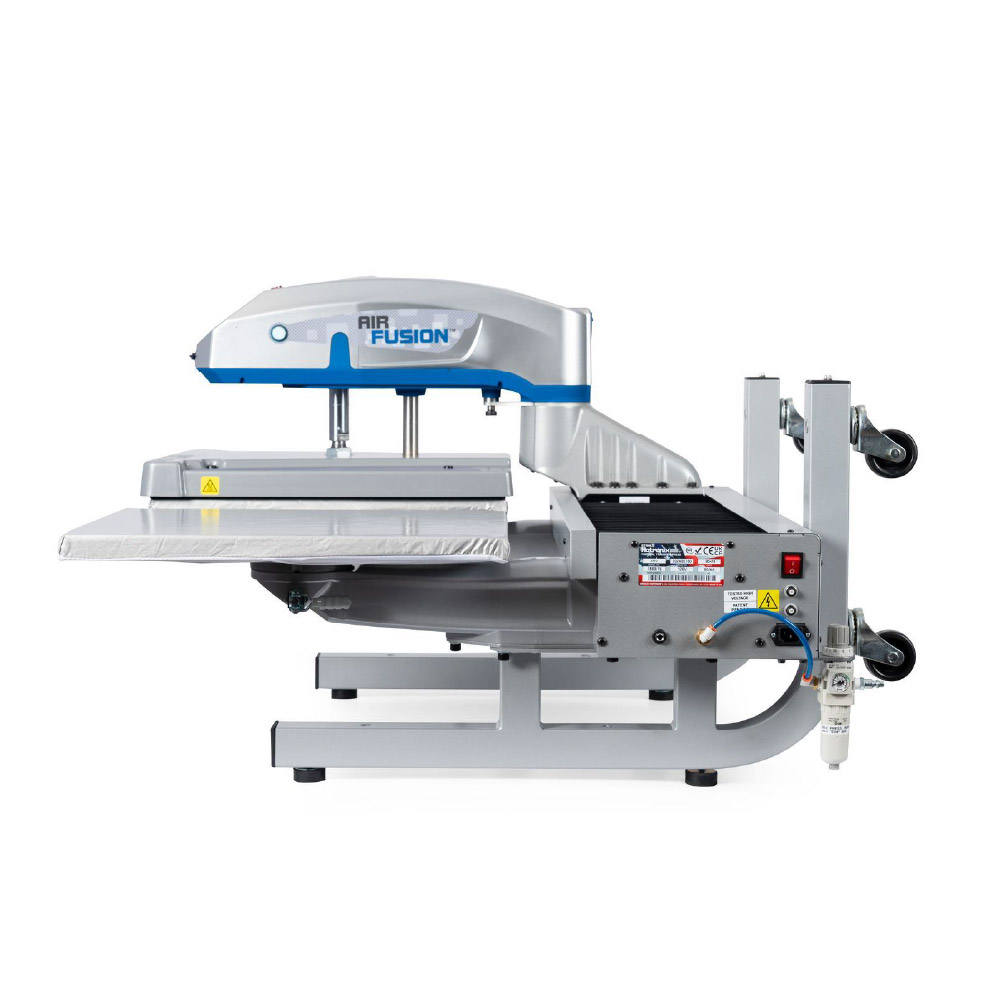

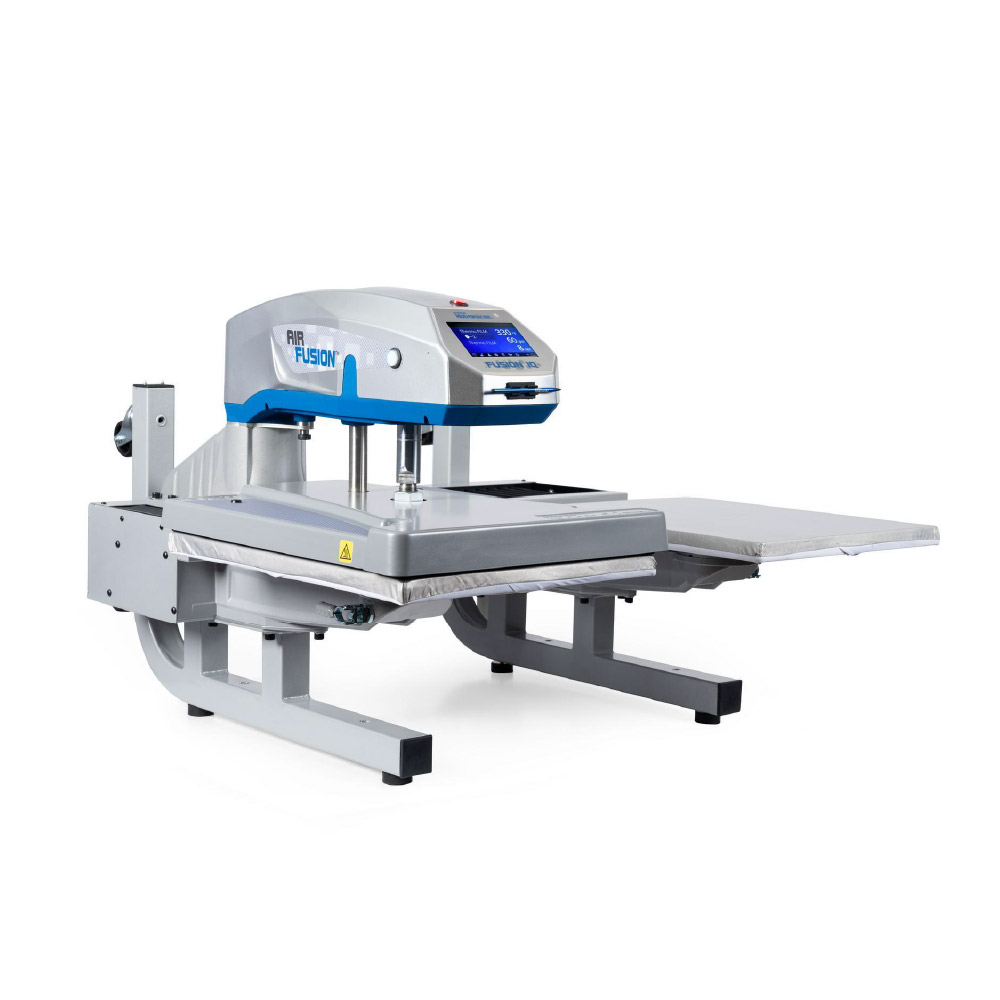

    The world’s most innovative heat-press, the Hotronix Air Fusion adds the power of compressed air to the engineering and technological advancements of the popular Fusion heat press. Sporting the industry’s first fully threadable platen, Auto Adjust Pressure with four automatically adjusting recipe settings and the only adjustable height stand in the industry (sold separately). The Air Fusion raises the bar for heat press excellence. Requires an air compressor (sold separately) with minimum 1/2 horsepower and 5-gallon hold tank.


    • A and B workstations: operate independently or in unison
    • Laser alignment
    • Center-driven rodless transmission
    • Auto-Adjust Pressure™
    • Touch screen technology
    • Heat free layout space
    • Live digital time, temperature and pressure readout
    • Unlimited preset programming
    • Multiple time settings
    • Dual Quick Change. Easy to install interchangeable platens
    • 120 PSI
    Size Press: 40cm x 50cm (16″ x20″). Carton size: L 45″ (114cm) x W 45″ (114cm) x H 30″ (76cm)
    Material Die pressure cast, corrosion-free base / top assemblies
    Temperature range 0 – 221ºC, ºF or ºC available
    Platens Threadability™: EZ-On Platen design
    Certification UL/ULC/CE/ROHS compliant
    Voltage Available in 220V
    Weight 118kg
    Warranty Premier warranty.<!–
