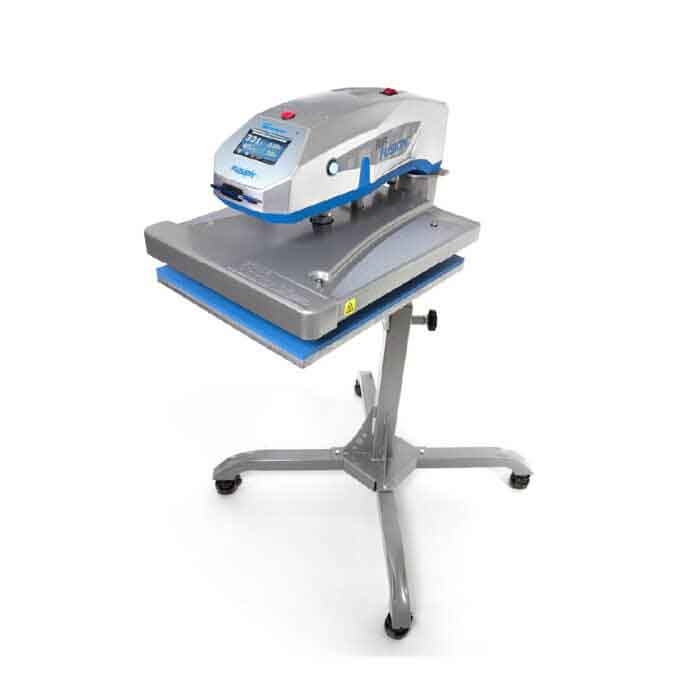

Hotronix Air Fusion Pedestal

Available as 40 x 50 cm

Download Brochure

£4,080.00 +VAT

View basket

Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

Forever transfers papers are only suitable for use with LASER PRINTERS.


All of the features and benefits of the Fusion heat press, now in a heavy-duty model powered by an air compressor (not included). With hands-free auto-swing, innovative EZ-On platen design, and industry-exclusive threadability, the Air Fusion heat press eliminates the need for pillows and pads while offering operators a heat-free workspace.

The world’s most innovative heat-press, the Hotronix Air Fusion adds the power of compressed air to the engineering and technological advancements of the popular Fusion heat press. Sporting the industry’s first fully threadable platen, Auto Adjust Pressure with four automatically adjusting recipe settings and the only adjustable height stand in the industry (sold separately). The Air Fusion raises the bar for heat press excellence. Requires an air compressor (sold separately) with minimum 1/2 horsepower and 5-gallon hold tank.


  • Auto-Adjust Pressure™ with four different pressure and time settings that auto-adjust pressure for all recipes
  • Data interface port for software upgrades
  • 20% more pressure than last year’s Air Swinger
  • Live digital time, temperature, and pressure readout
  • Energy-saving 4 hr sleep mode
  • Production cycle counter
  • Tapered roller bearings with progressive stop dampers for smooth swing operation
  • The industry’s only adjustable height stand
SizePress: 40 x 50cm (16″ x 20″). Carton size: L 104cm x W 83cm x H 113cm
MaterialDie pressure cast 356 aluminium corrosion-free framework
Temp. range0 – 221 C, ºF or ºC available
Platens3/4-inch heat platen with fast recovering heater technology. 20mm thick upper platen with non-stick coating. Easy-to install interchangeable platens
Silicone pad10mm silicone rubber bottom pad
CertificationUL/ULC/CE/RoHS compliant
VoltageAvailable in 110v or 220v
WarrantyLifetime warranty on heating elements, 5 years on framework, 2 years on circuit board, 1 year parts and labour warranty.<!–
