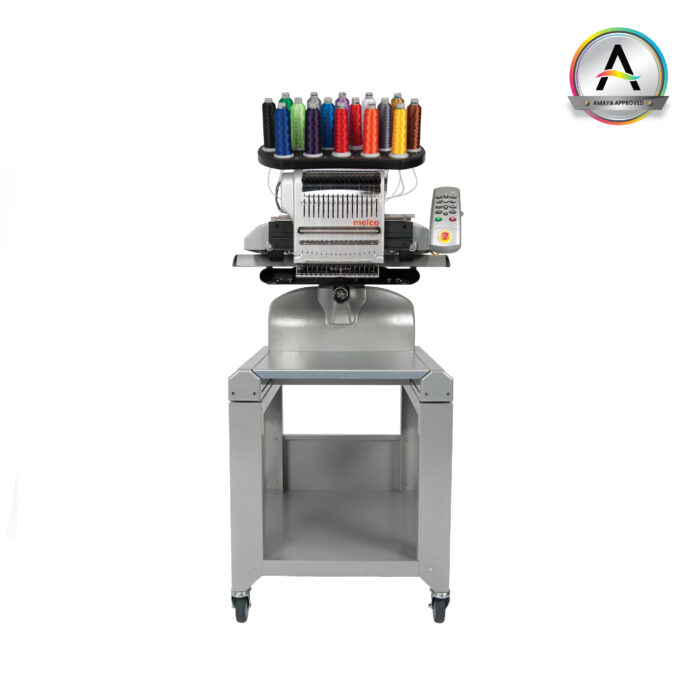

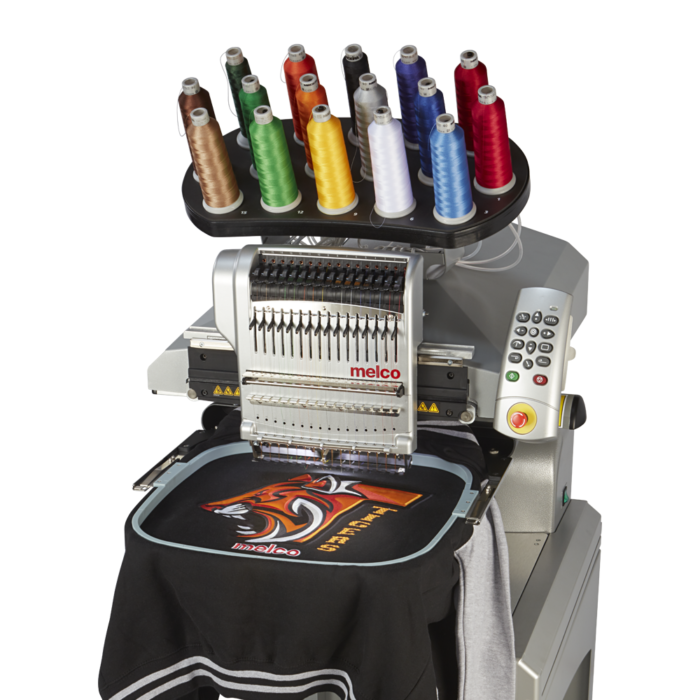

Ex-Demo Melco EMT16X


Melco EMT16X modular embroidery machines have established themselves as one of the leading embroidery machines in its field. The modular system gives the Melco many advantages over a conventional fixed head machine. Its main benefits are production efficiency, automatic thread tensioning and speed. When linked together in modular form the Melco EMT16X becomes the fastest multi-head embroidery machine available.

Remember that because the Melco system is modular you can start with one head or as many as you want and then add on when you require.

Visit one of our showrooms and put the Melco to the test and see how they can make your embroidery production much more efficient.

From  £9,950 +VAT

    Thank you for requesting this brochure

    Please email me the brochure and specifications to:





    Would you prefer to discuss your requirements with one of our product specialists? Call now: 02392 590281

    Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

    Forever transfers papers are only suitable for use with LASER PRINTERS.

    Description

    Melco EMT16X

    The New Melco EMT16X

    Kitlocker Testimonial

    Melco EMT16X embroidery machines deliver outstanding performance, efficiency, and stitch quality!

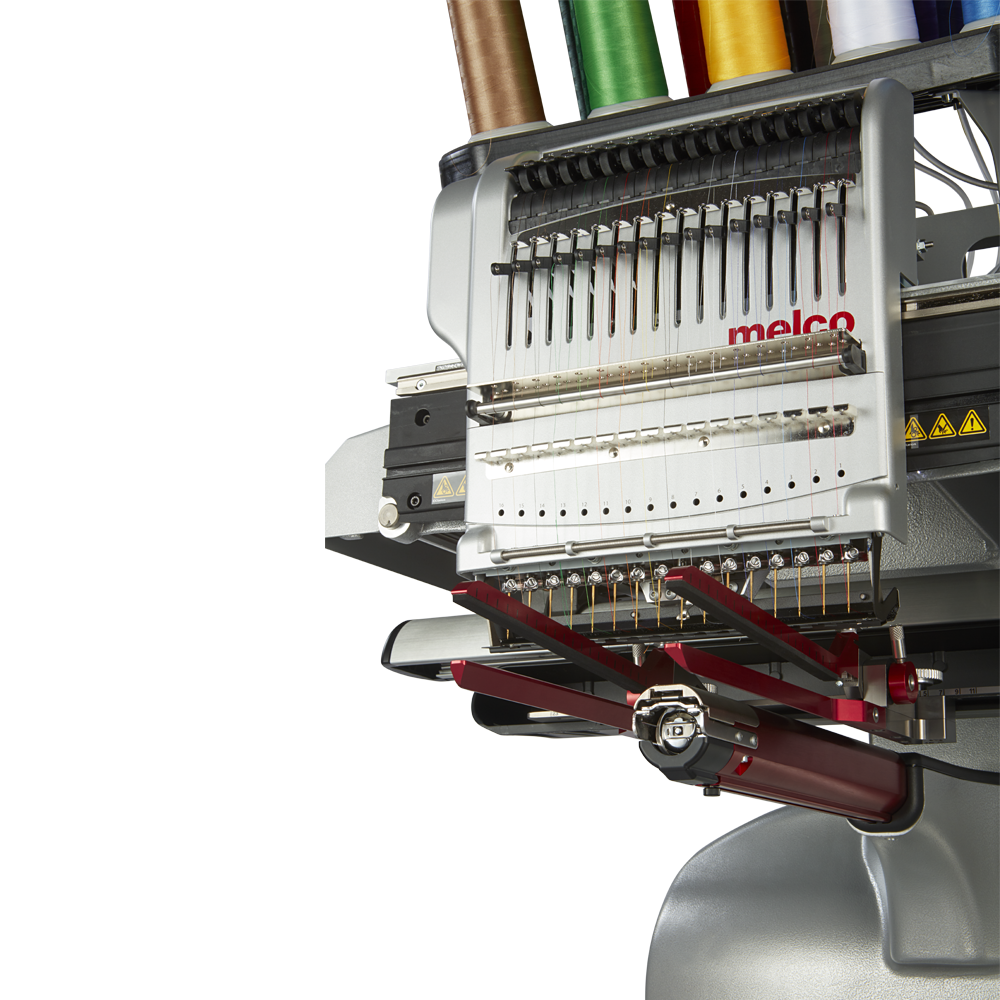

    Thanks to enhanced Melco stitch dynamics, the frequency of “thread issues” is minimized. This means more run time per machine and greater ROI potential. In addition to amazing efficiency and performance, the stitch quality is outstanding. There are several new performance and time-saving features, most notably the completely redesigned Lower Arm Assembly and Auto Trimming System.

    The new auto trimming system is durable and reliable. Overall trim time has been reduced dramatically, which in turn reduces overall sew time. The self-sharpening carbide knife assembly consistently slices poly, rayon, metallic, and thick Burmilana thread. It’s also virtually maintenance-free.

    Here are some other new features and advancements:

    • Automatic Tie-In and Tie-Out Stitches
    • 66% Reduction in Bobbin Tail Length
    • New Needle Plate Design
    • New Hoop Arms
    • Redesigned Thread Tube Assembly
    • New Grabber Blade
    • New Bobbin Case Access Panel
    • New Optional Accessory—XL Hoop
    • Full 2 years warranty

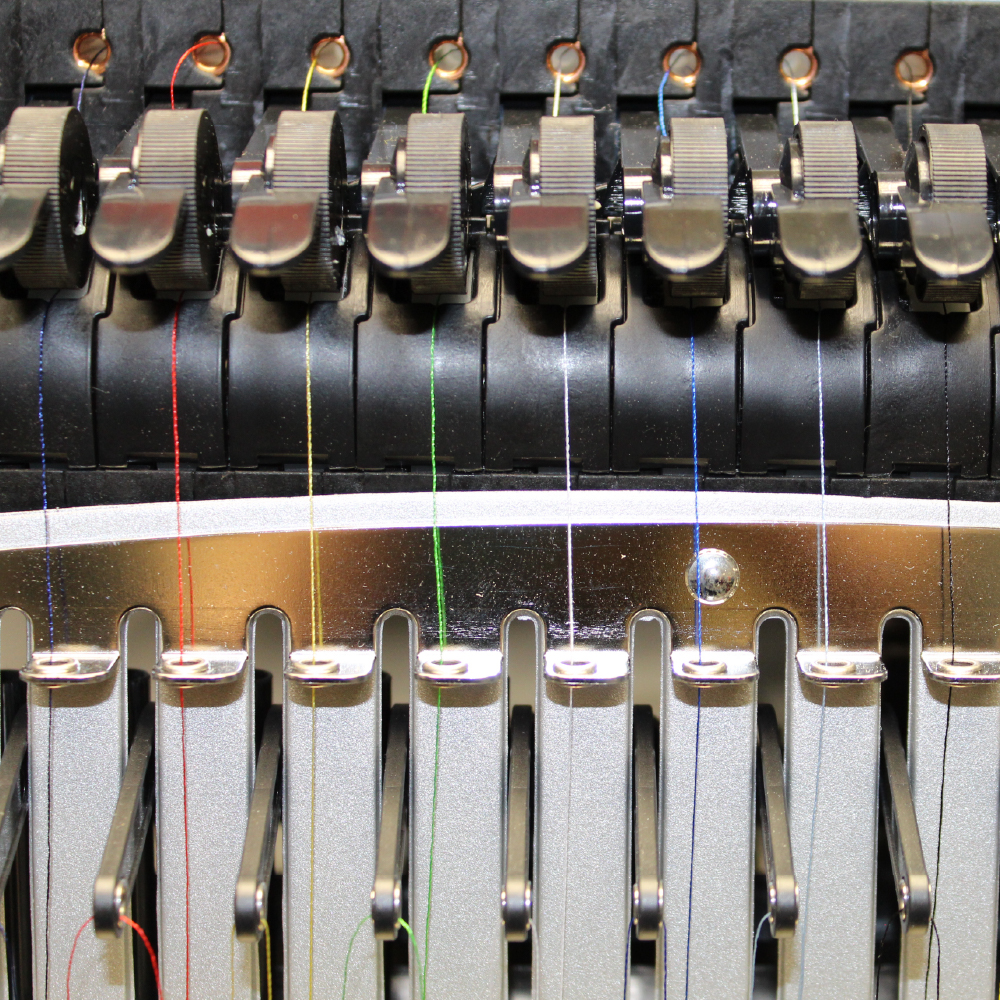

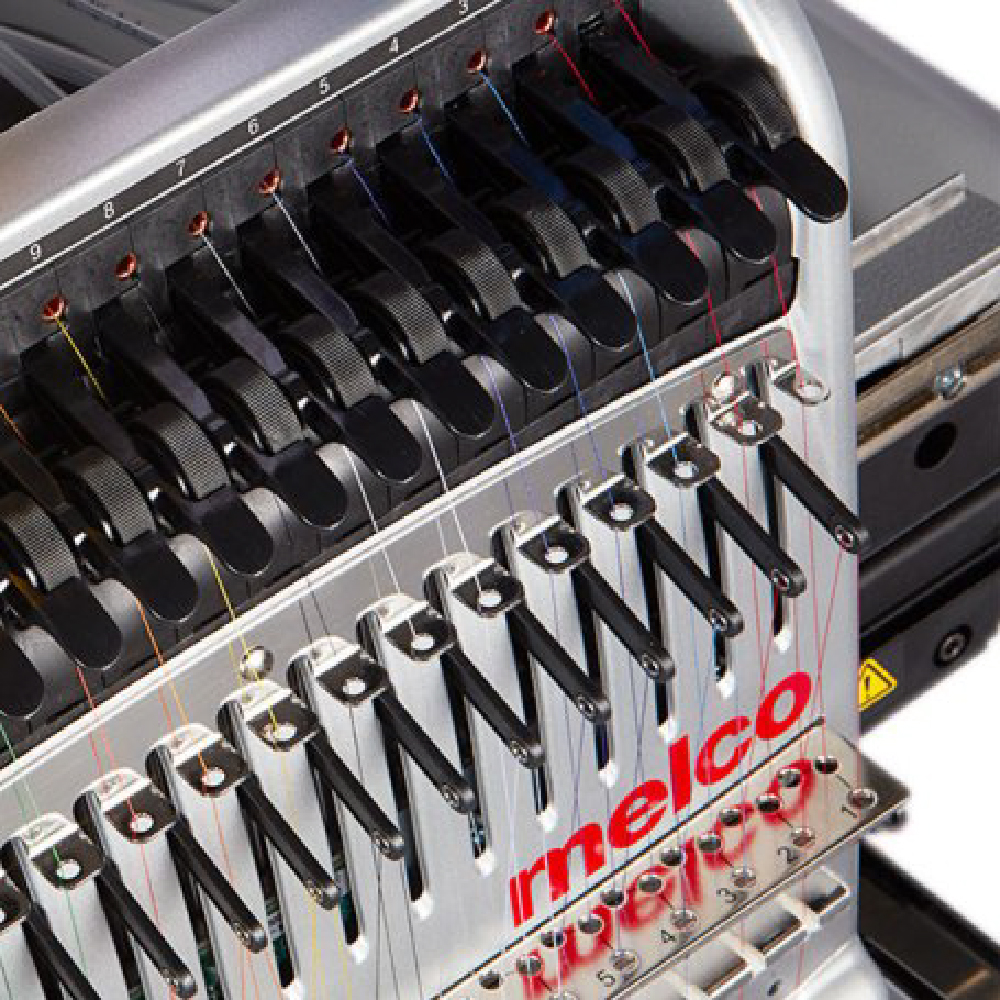

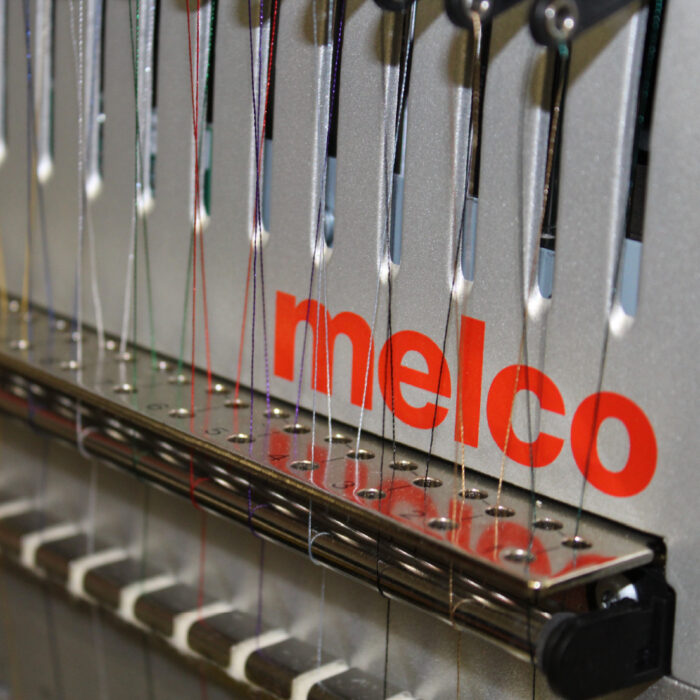

    Thread feed is managed by the patented Acti-Feed™ thread control system, delivering the precise amount of thread automatically. Conventional machines require manual thread tension adjustments. With Melco EMT16X, enter a few simple inputs such as fabric type and hoop selection, and this intelligent system will do the rest!

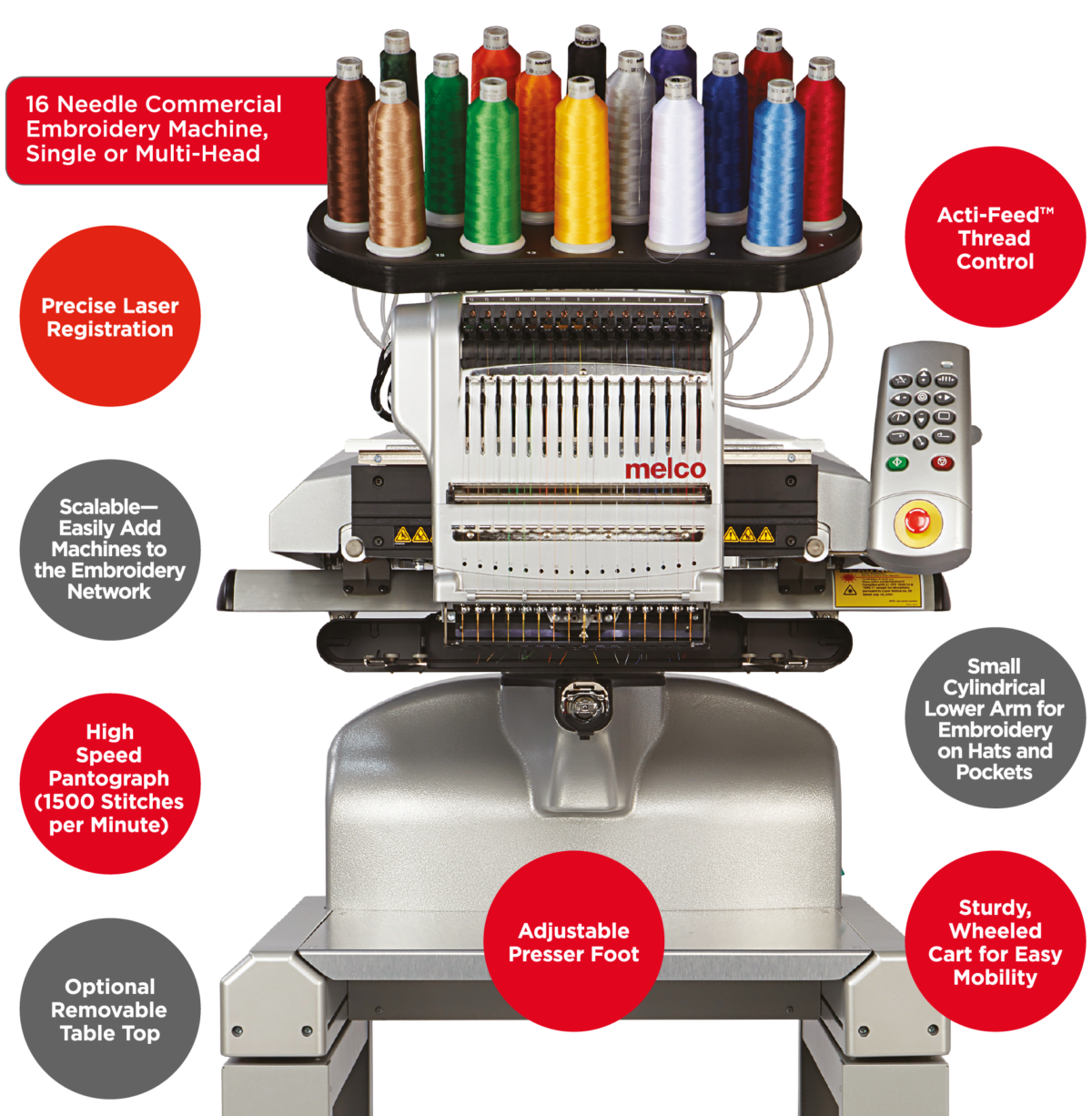

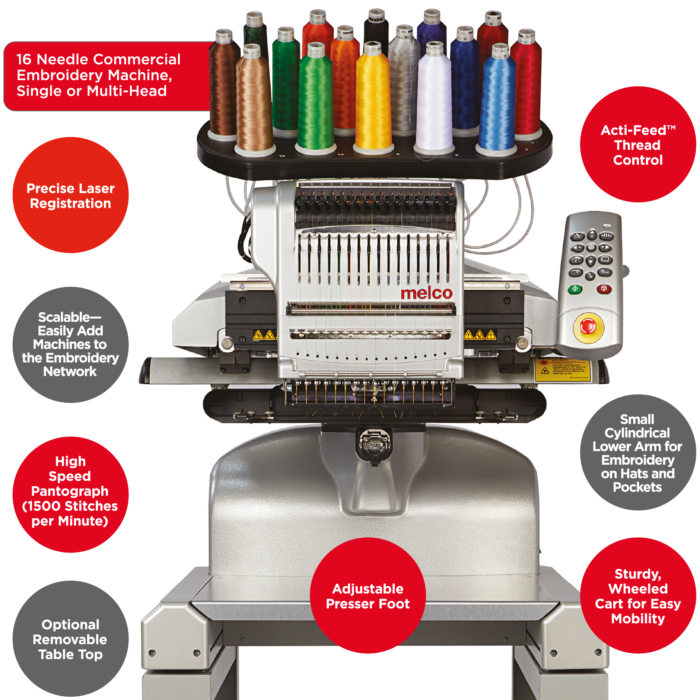

    Here are some things that make the Melco EMT16X unique:

    • 16 Needle Commercial Embroidery Machine, Single or Multi-Head
    • Acti-Feed™ Auto thread tensioning
    • Precise Laser Registration
    • Adjustable Presser Foot
    • Optional Table Top
    • High Speed Pantograph (1500 Stitches per Minute)

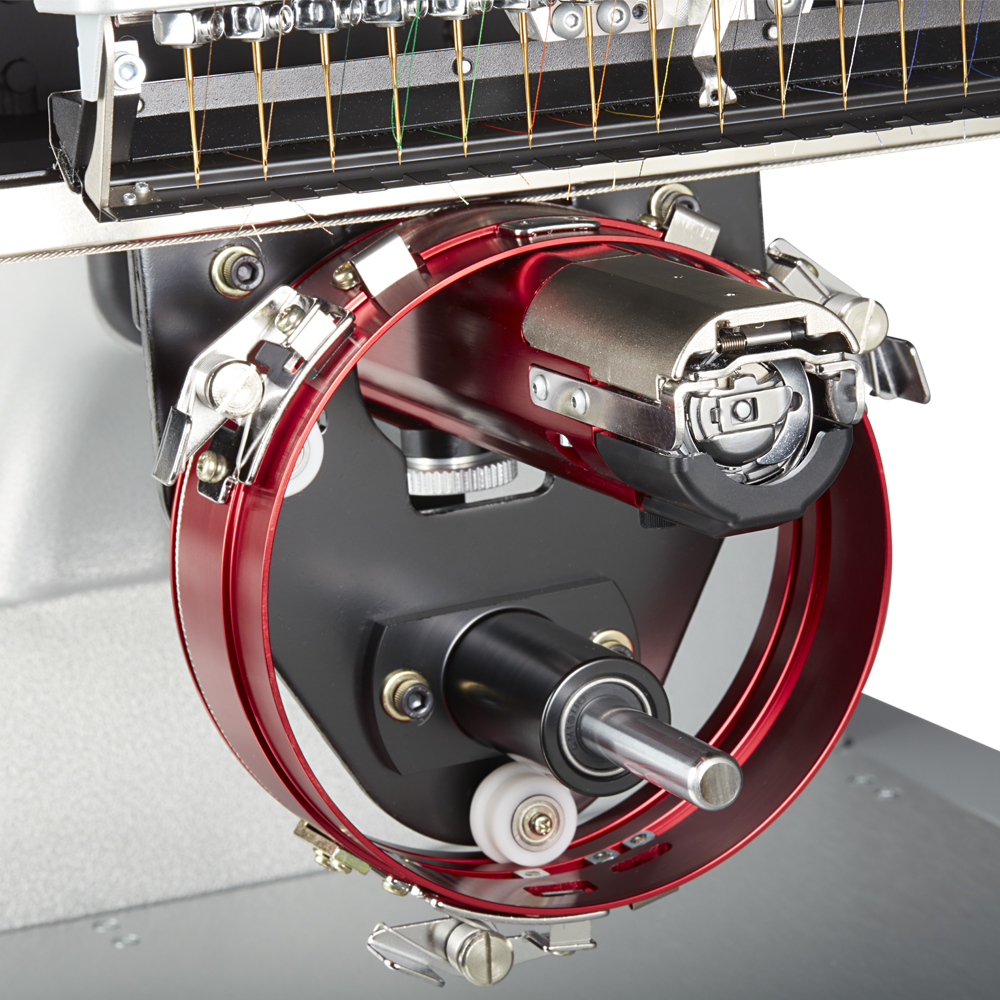

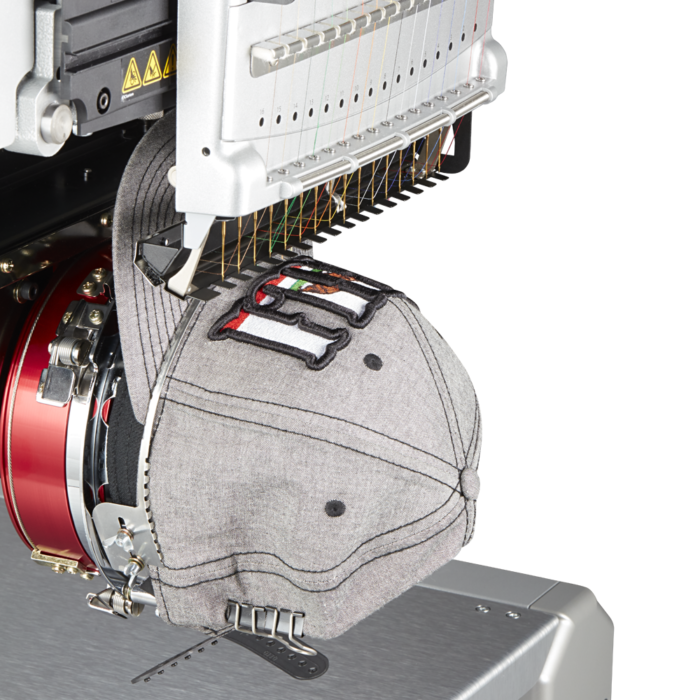

    • Small Cylindrical Lower Arm for Embroidery on Hats and Pockets
    • Sturdy, Wheeled Cart for Easy Mobility
    • Scalable—Easily Add Machines to the Embroidery Network

    Technical Specifications
    Needles
    16 (The Industry Leader)
    Conventional Cap Frame
    152 mm x 70 mm (5.9” x 2.75”)
    Motor Types
    Servo
    Maximum Stitches Per Minute
    On Flats
    1500 (The Industry leader)
    Stitch Length Range
    Only Limited By Hoop Size
    Motor Capacity (W)
    X and Z: 100 Watts, Y: 250 Watts
    Maximum Stitches Per Minute
    On Caps
    1200 (The Industry Leader)
    Machine Configuration
    Up To 30 (See AMAYA OS V9 Specs)
    Machine Construction Material
    Aluminium
    Maximum Tubular Frame Size
    500 mm x 430 mm (19.7” x 16.9”)
    Self-Diagnostics Capability
    Collects Machine Data for
    Troubleshooting
    Measurements W/CART
    Width 724 mm (28.5”), Height 1669 mm
    (65.7”), Depth 779 mm (30.7”), Weight
    95.5 kg (210.5 lbs).
    Maximum Sew Field/
    Tubular Frame
    410 mm x 400 mm (16.1” x 15.7”)
    Lighting
    Cold Bright LED
    Measurements W/O CART
    Width 724 mm (28.5”), Height 952 mm
    (37.48”), Depth 741 mm (29.2”), Weight
    74.6 kg (164.5 lbs).
    Wide Angle Cap Frame
    362 mm x 82 mm (14.25” x 3.23”)
    Power Supply (V)
    90–260V (Single Phase, 50/60 Hz)
    Power Consumption (W)
    Typical: 200 Watts, Max: 650 Watts
