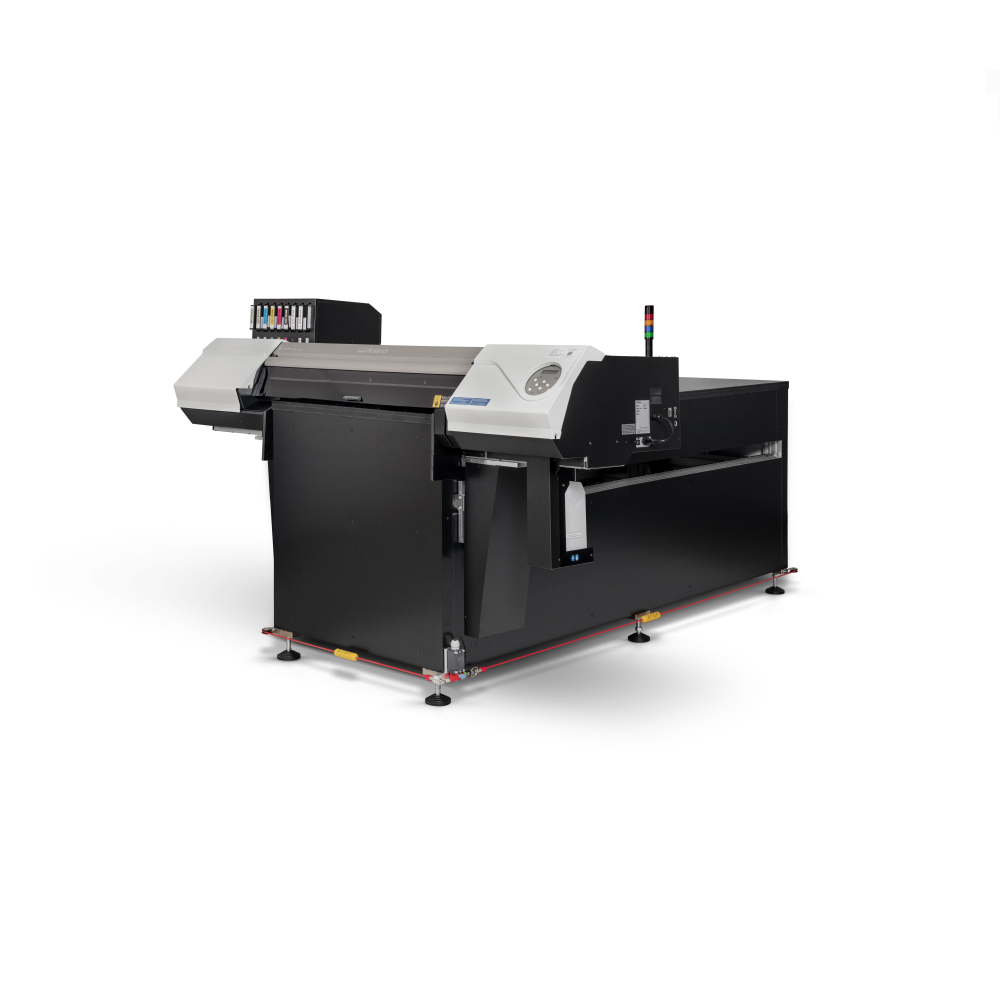

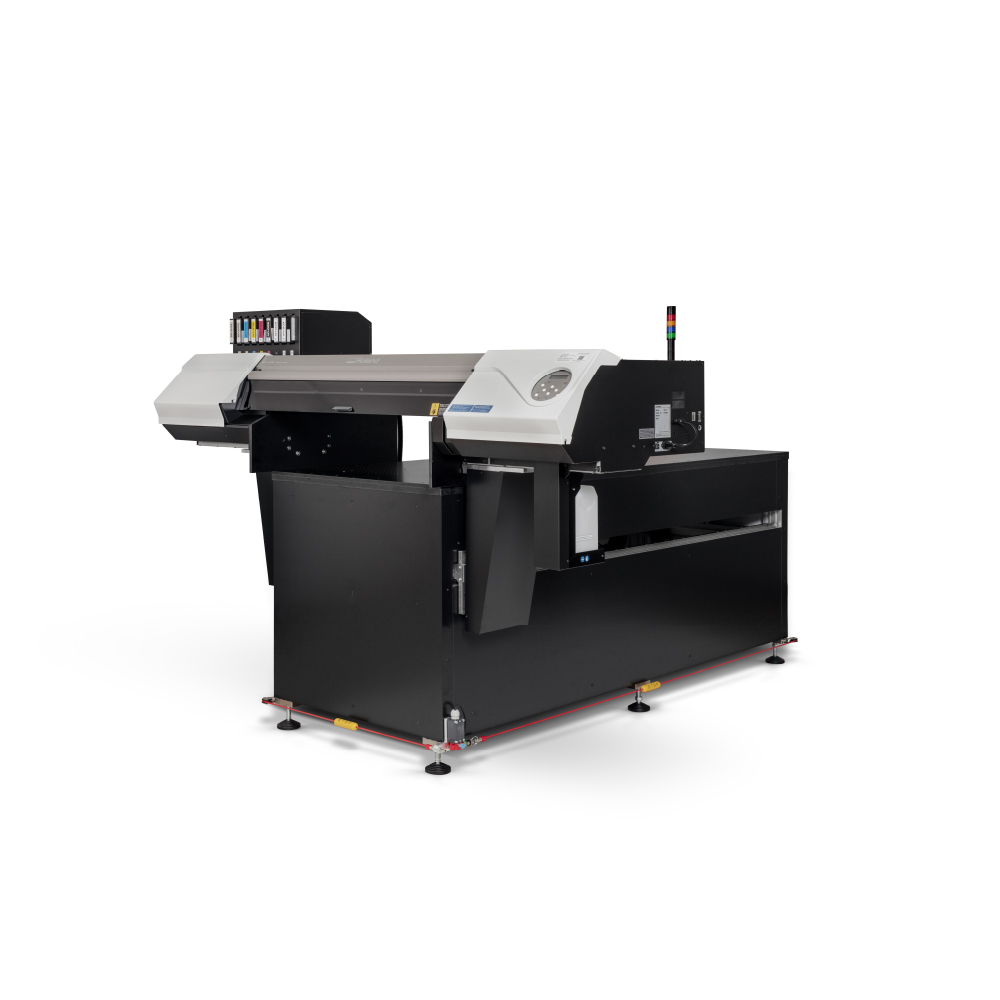

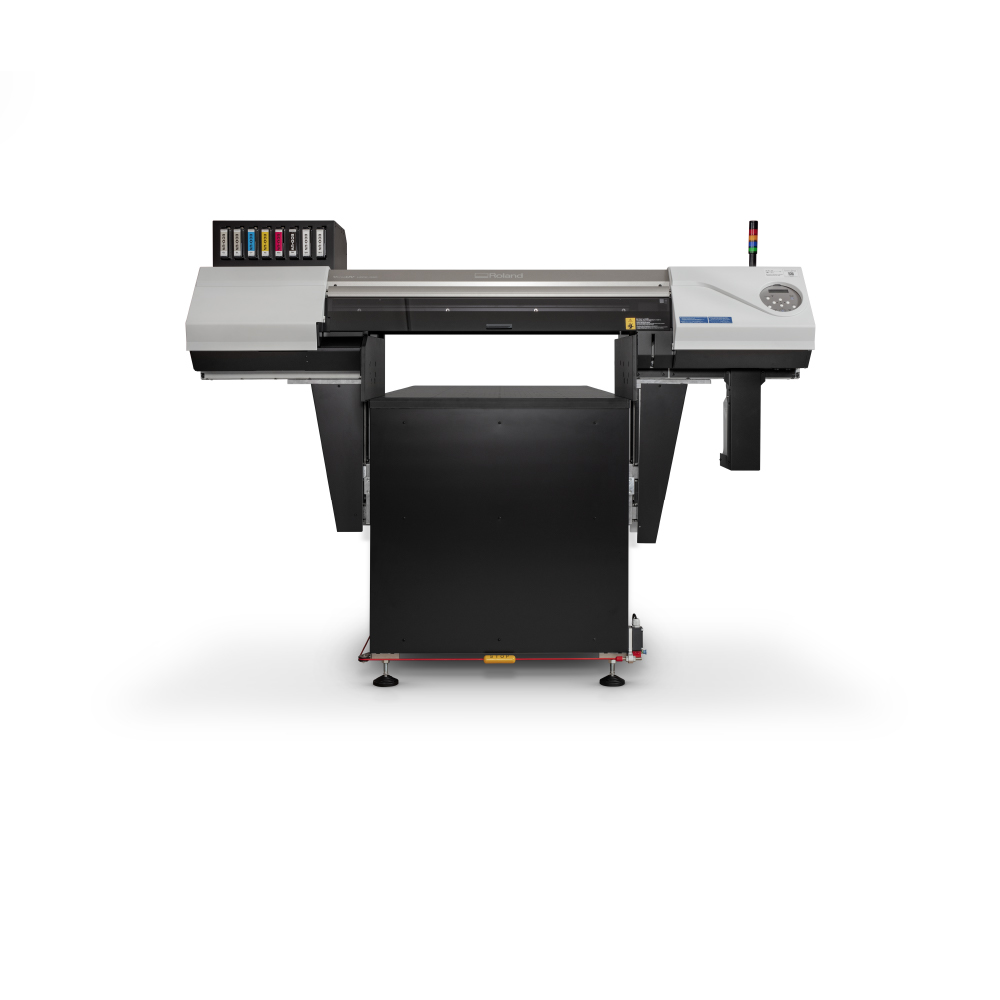

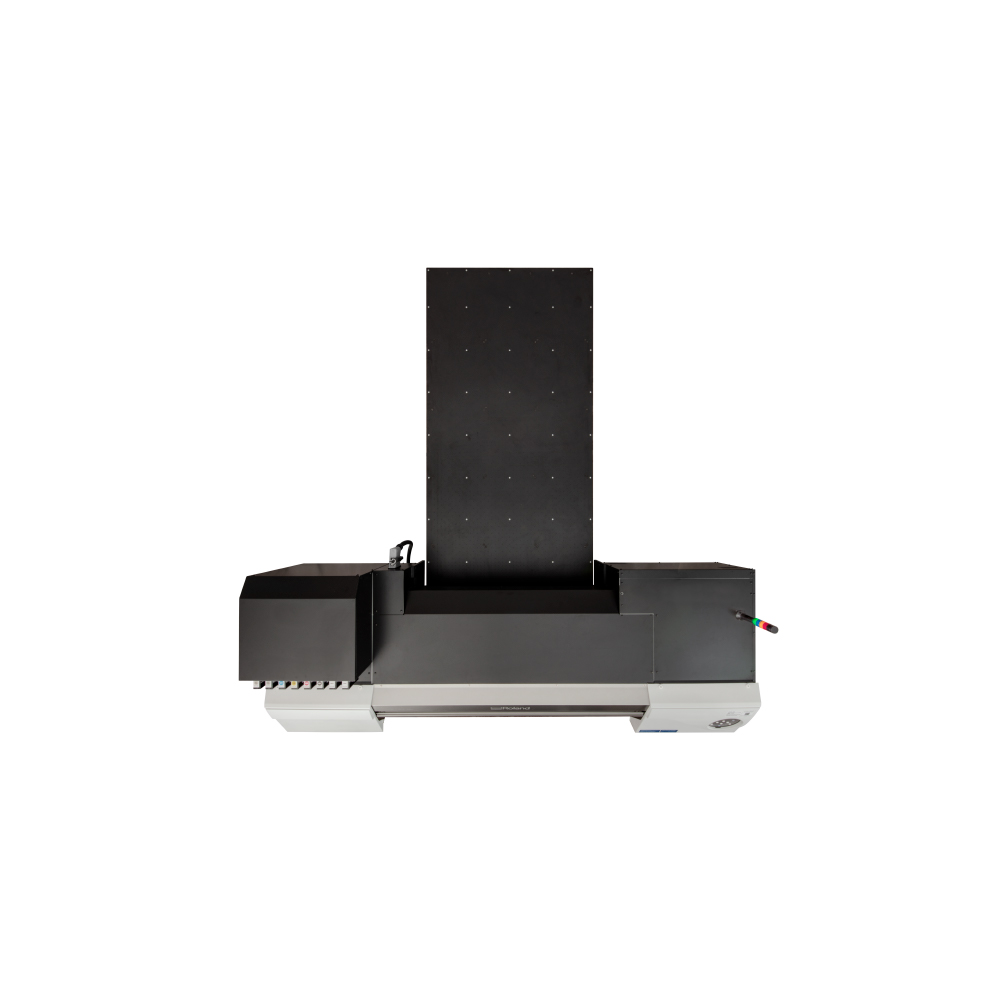

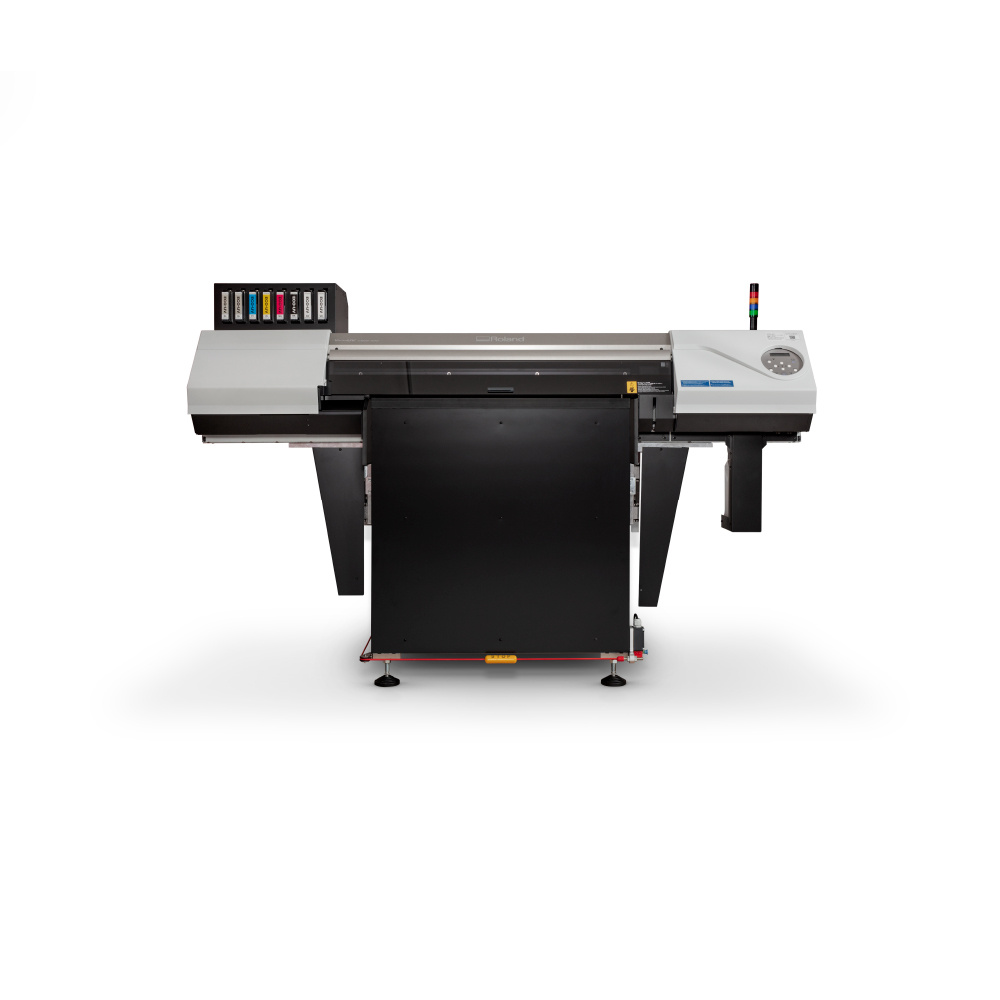

Roland VersaUV LEC2-330S-F200


The Roland VersaUV LEC2-330S-F200 printer is designed to print onto virtually a limitless range of flexible and rigid substrates and objects up to 200mm in depth & 762mm wide.

Spread your payments with our Leasing and Finance facilities.

Weekly payments from £237.75 + VAT.

    Thank you for requesting this brochure

    Please email me the brochure and specifications to:





    Would you prefer to discuss your requirements with one of our product specialists? Call now: 02392 590281

    Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

    Forever transfers papers are only suitable for use with LASER PRINTERS.

    Description

    Roland DG VersaUV LEC2-S Series

    Built for Versatility

    762mm (30″) S-Series Flatbed UV Printer.

    Impressive Print Capability

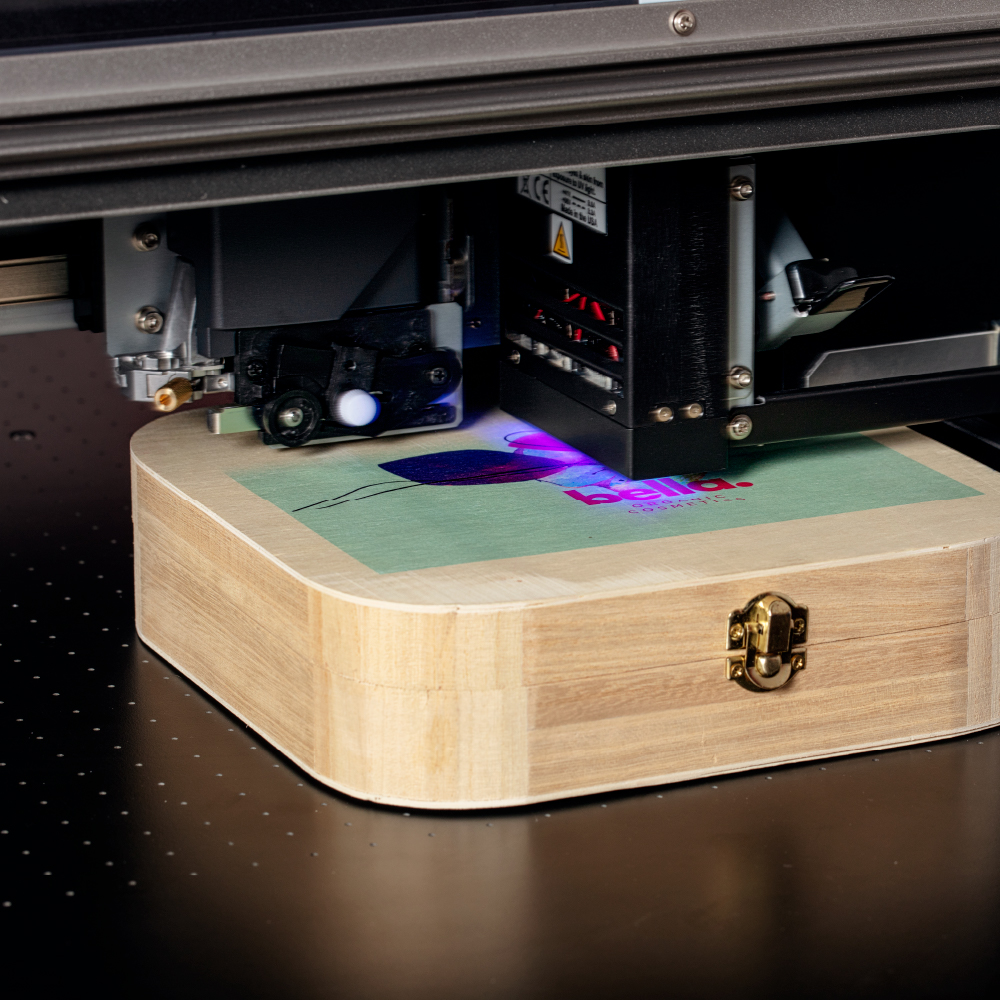

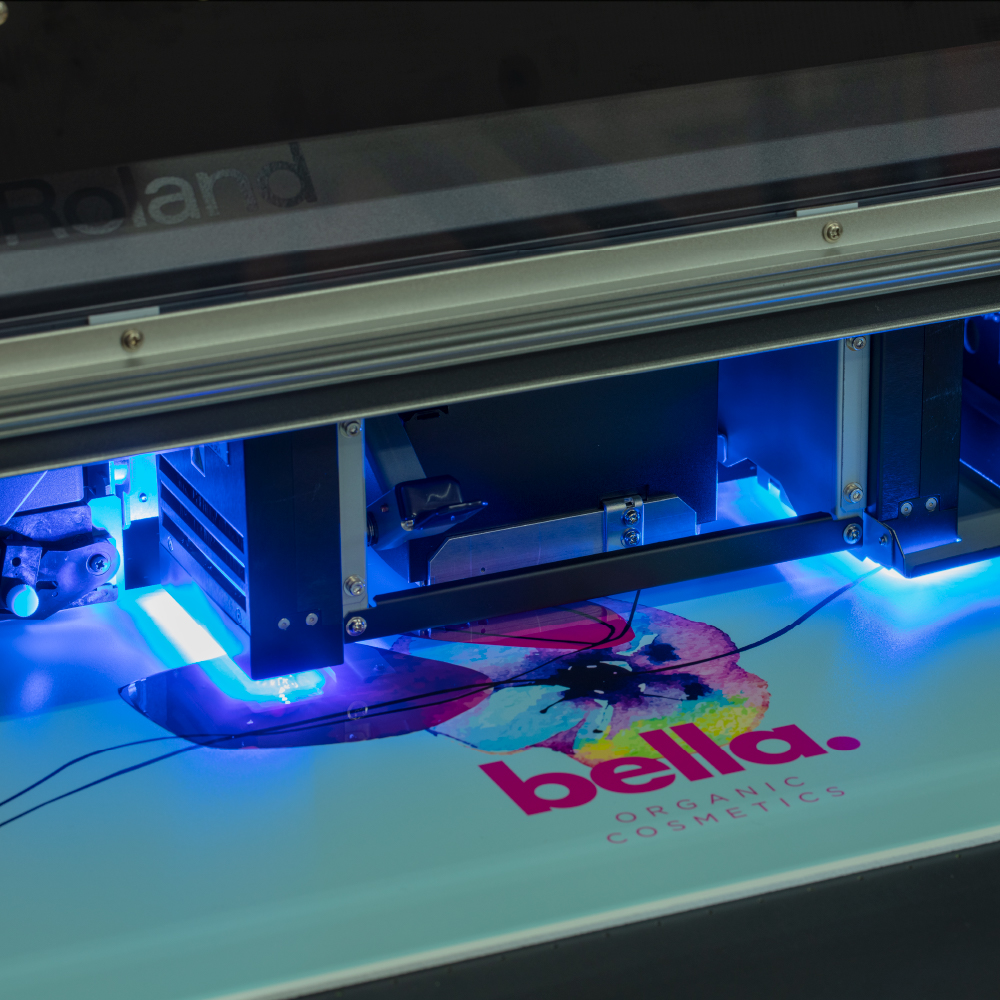

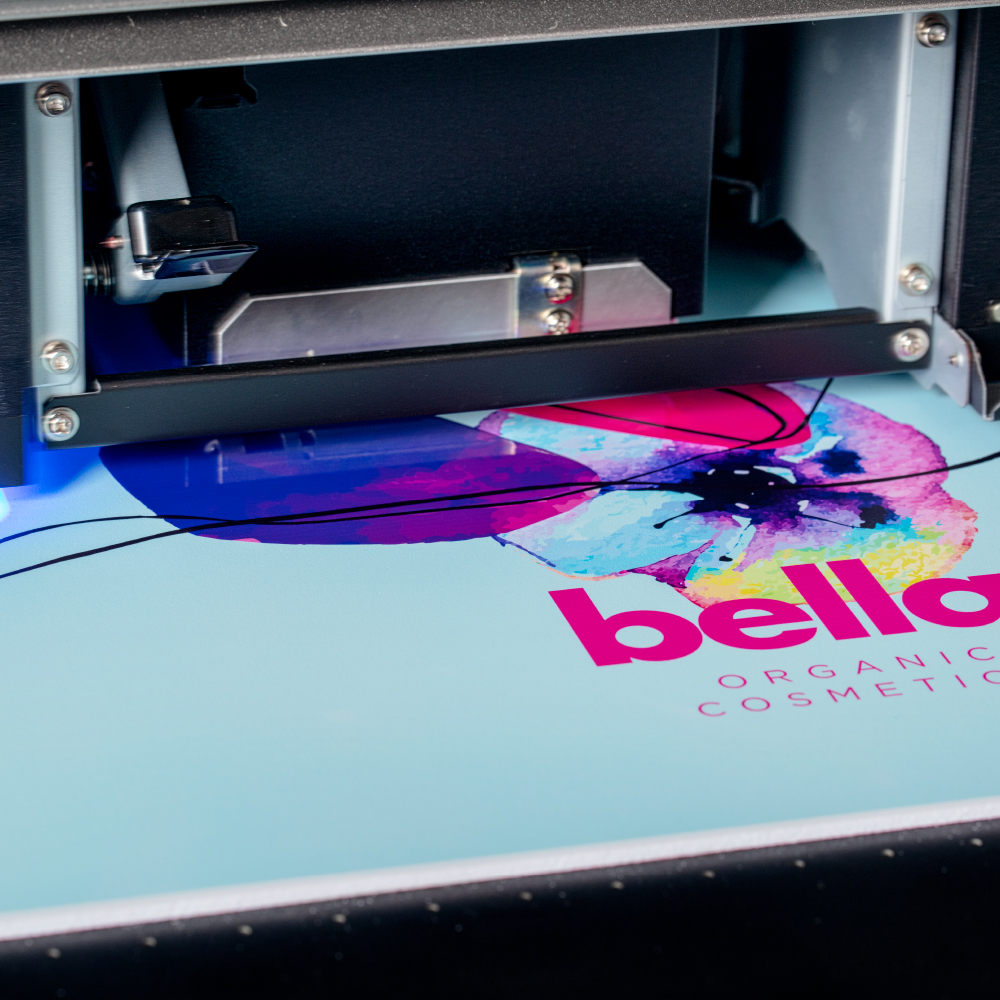

    Print onto a virtually limitless range of flexible and rigid substrates and objects.

    Time-saving Turnaround
    Deliver a fast turnaround on jobs, with prints instantly ready for finishing and installation.

    Fine Print Quality
    Delight your customers with stunning quality colour-accurate prints, with ECO-UV EUV5 ink.

    Easy to use
    Fast-to-learn and easy-to-use, the LEC2 S-Series can be ready to use immediately after installation.

    Model LEC2-330S-F200 Flatbed
    Printing Method Piezo ink-jet
    Acceptable Media Width: 762mm
    Thickness/Height: 0.01 to 200mm
    Weight bed: 100kg / m2
    Bed Size 820 (W) x 2085 (D) mm
    Printing Size 736 (W) x 1500 (L) x 200 (H) mm
    Ink Cartridges Type & Colours Roland ECO-UV EUV-5 / Cyan, Magenta, Yellow, Black, White, Red, Orange, Gloss, Primer
    Ink Configurations CMYKCMYK, CMYKWhWhGlGl, CMYKWhWhGlPr, CMYKORREWHWH, CMYKORREWHPR, CMYKORREWHGL
    Vacuum System & Zones 1
    Printing Resolution (dpi) Max. 1440 dpi
    Movement Method High resolution stepping motor
    Distance Accuracy Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater
    Horizontal repeat accuracy ±0.01mm
    Output Modes Continuous, unload, return to origin, layered
    Media Height Setting Manual, auto sensor
    Surface Control Manual, auto sensor
    Control Interface 7″ Colour LCD touch screen
    Interface Ethernet Base 10/100
    Power Saving Function Automatic sleep feature
    Power Requirements 230V 16A 2P+E
    Power Consumption Print with vacuum: Max 2.5kw
    Sleep mode: 150w
    Acoustic Noise Level Print with vacuum: <70 db
    During stanby: <40 db
    Dimensions Printer unit: 1945(W) x 2152 (D) x 1780 (H) mm
    Control tower: 530 (W) x 530 (D) x 1080 (H) mm
    Weight (Kg) 400 + 50 kg (Control tower)
    Weight Distribution 6 points – 6 feet (80 mm diameter)
    Environment Power on: Temperature: 20 to 32ºC (68 to 90ºF) (22ºC [72˚F] or more recommended) , Relative humidity: 35 to 80% (no condensation)

    Power off: Temperature: 5 to 40˚C (41 to 104˚F), Relative humidity: 20 to 80% (no condensation)

    Included Accessories RIP Software,  User manual, Power cable, cleaning kit, installation toolbox
