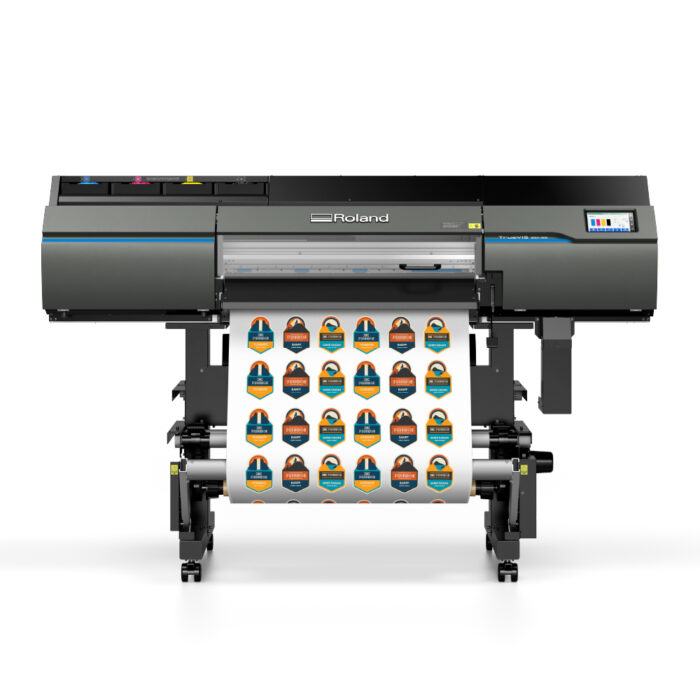

Roland SG3-300 4-Colour Printer/Cutter

New for 2022 – The Roland 762mm (30″) 4-Colour Printer/Cutter with automated Take-up System is perfect for runs of heat transfers, decals, small signs, partial wraps, and more.

From £8,999 + VAT

Spread your payments with our Leasing and Finance facilities.
From £44.28 + VAT per week


Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

Forever transfers papers are only suitable for use with LASER PRINTERS.

Description

True Excellence, Outstanding Colour and Highly Reliable Print & Cut

TrueVIS, the device that launched countless businesses, is now entering a new stage of evolution for the digital age. Start your business with a winning partnership and get the best chance for success.

The Roland TrueVis SG3 (4 Colour) series are a true partner for your business. Whether you are just starting out or looking to take your business to the next level, then Roland print and cut delivers the trusted quality with a streamlined workflow with super-fast, same-day turnaround speeds you need.

Features:

  • Fast and easy set-up
  • Integrated Print & Cut
  • Exceptional flexibility & versatility
  • TrueVis ink technology
  • Expanded colour output
  • Low running costs
  • Take up system included
  • One year Roland onsite warranty
  • Roland Versaworks RIP software
SG3-540 SG3-300
Printing method Piezo ink-jet method
Media Width 259 to 1,371mm (11.7 to 54 in) 182 to 762mm (7.2 to 30in)
Thickness Max. 1.0mm (39.3mil) with liner, for printing



Max 0.4mm (15.7mil) with liner and 0.22mm (8.6mil) without liner, for cutting

Roll outer diameter Max. 250mm (9.8 in)
Roll weight Max. 35kg (77lb) Max. 30kg (66lb)
Core diameter (*1) 76.2mm (3 in) or 50.8mm (2 in)
Printing/cutting width (*2) Max. 1,346mm (52.9 in) Max 736mm (28.9 in)
Ink Type TrueVIS INK 500 ml pouch
Colours Four colours (cyan, magenta, yellow, and black)
Printing resolution (dots per inch) Max. 1,200 dpi
Cutting speed 10 to 300m/s (0.39 to 11.8 in/s)
Blade force (*3) 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.000 to 1.500mm (0.0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98mil/step)
Software resolution (when cutting) 0.025mm/step (0.98 mil/step)
Media Heating System Print heater set temperature: 30 to 45 °C (86 to 113 °F) Print heater set temperature: 30 to 55 °C (86 to 131 °F)
Connectivity Ethernet (100BASE-TX/1000BASE-5, Automatic Switching)
Power-saving function Automatic sleep feature
Power Requirement 100-120/220-240 Va.c.

50/60 Hz 8.0/4.1 A

100-120/220-240 Va.c.

50/60 Hz 5.4/2.7 A

Power Consumption During operation Approx. 1,090 W

Sleep Mode Appox. 50W

During operation Approx. 710W

Sleep Mode Approx. 50W

Acoustic Noise Level During operation – 63dB (A) or less

During standby – 53dB (A) or less

During operation – 63dB (A) or less

During standby – 53dB (A) or less

Dimensions (Width x Depth x Height) 2,632 mm × 748 mm × 1,320 mm (103.7 in. x 29.5 in. x 52.0 in.) 2,022 mm × 748 mm × 1,320 mm (79.7 in. x 29.5 in. x 52.0 in.)
Weight 183 kg (404 lb.) 150 kg (331 lb.)
Environment During Operation Temperature: 20 to 32 °C (68 to 89.6 °F), humidity: 35 to 80 % RH (no condensation)
Not Operating Temperature: 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
Included Items Dedicated stands, power cord, Media take-up unit, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, User’s Manual, Software(VersaWorks, Roland DG Connect), etc.

*1 – The length of printing or cutting is subject to the limitations of the program.

*2 –  500 gf is the maximum instantaneous blade force. The blade force must be adjusted according to details such as the media thickness.

*3 – Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment. Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
