Roland SG2-300 Colour Printer
New generation TrueVIS SG2 series large format printer/cutters provide the superior colour & cutting features you expect to find in a top-of-the-line machine but without the higher price tag.
Big Savings Available – Call for Details!
Spread your payments with our Leasing and Finance facilities.
- Description
- Specifications
Description
New generation TrueVIS SG2 series large format printer/cutters provide the superior colour and cutting features you expect to find in a top-of-the-line machine but without the higher price tag.
Featuring new TR2 ink for a wider colour gamut with brilliantly vivid print output at a very low ink cost per sq/ft
Offering smart new print/cut features that include automated pinch rollers
3M™ MCS™ Warranty and Avery Dennison™ ICS™ Warranty Program certified for added print confidence
On-Demand Graphics Customization
Need a device that can produce a wide variety of premium, on-demand graphics from your home, office or workshop? Get a head start in graphics customization with a simple-to-operate and easily affordable printer/cutter that was built to build your business. Swap-out your desktop devices for the 30” SG2-300 printer/cutter that offers so many more customization opportunities.
The Brilliant Cost and Colour Benefits of New TR2 Ink and True Rich Colour
Elevate all your print output and improve colour reproduction of specific colours with TR2 inks in CMYK configuration that produce graphics with exceptional realism and colour intensity.
With True Rich Colour you have access to amazing new colour profiles to help you generate a whole new level of colour vibrancy in your prints
True Rich Colour and TR2 inks combine neutral greys, smooth gradations, and natural skin tones to expand your colour gamut
TR2 ink is GREENGUARD Gold certified for low-emission printing
Exceptionally scratch-resistant, TR2 ink is durable up to three-years outdoors without lamination
New Media Clamps
For a more efficient print operation, smart new media clamps with integrated grooves no longer interfere with sheet-cutting or need to be removed at ay time.
Bring Your Graphics To Life With Detail, Colour and Excitement

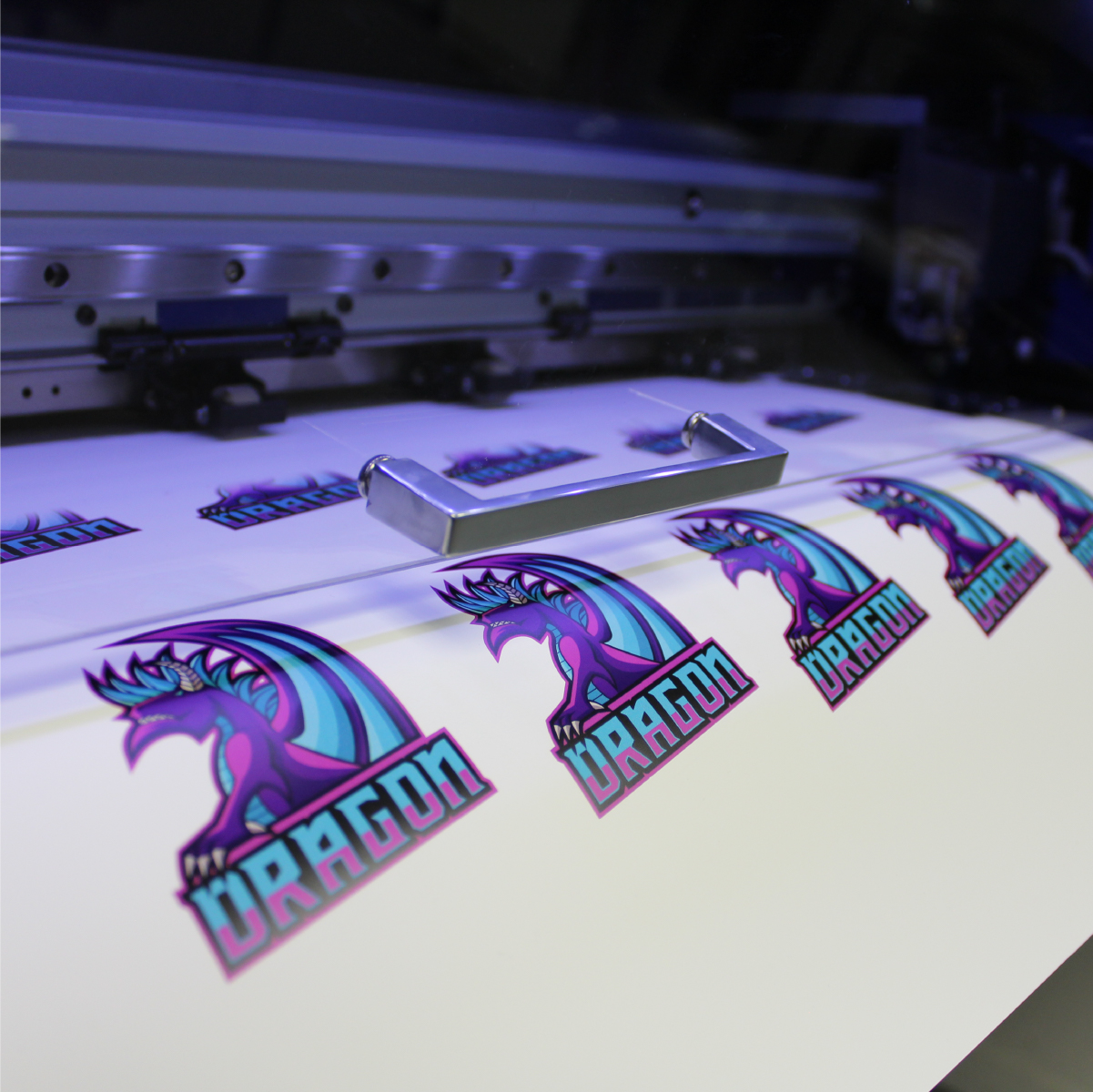

TrueVIS SG2 produces exceptional quality graphics, in vibrant yet natural colours which truly stand out from the crowd. With enhanced Print & Cut accuracy and improved production efficiency you can produce die-cut decals and labels, eye-catching banners, striking signs, vibrant vehicle wraps – and so much more.
Get Ahead of the Competition with Speedy Same Day Turnaround
Fast-drying speeds allow you to print, then laminate is as little as 6 hours3 for true same-day installation, with the reassurance of quality output and reliable installation.

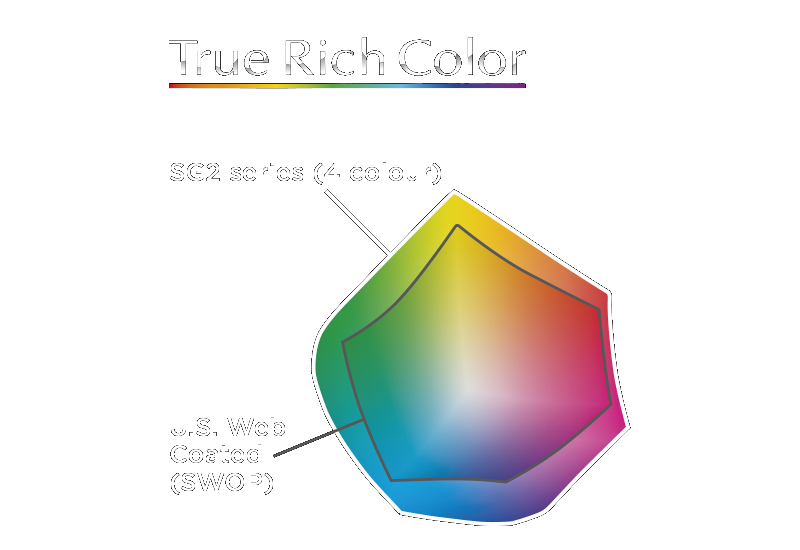

Enhance your Business with True Rich Colour
A new colour management preset, True Rich Colour, takes full advantage of the SG2 series’ impressive colour reproduction capability and the wider colour gamut provided by TR2 ink. Now vibrant colours can be combined with neutral greys, smooth gradations and natural skin tones to create stunning graphics.
| SG2-640 | SG2-540 | SG2-300 | ||||
|---|---|---|---|---|---|---|
| Printing method | Piezo ink-jet method | |||||
| Media | Width | 12.4 to 64 in. (315 to 1,625 mm) | 10.8 to 54 in. (275 to 1,371 mm) | 182 to 762 in. (182 to 762 mm) | ||
| Thickness | Max. 39 mil (1.0 mm) with liner, for printing Max. 16 mil (0.4 mm) with liner and 9 mil (0.22 mm) without liner, for cutting |
|||||
| Roll outer diameter | Max. 8.3 in. (210 mm ) | |||||
| Roll weight | Max. 88 lb. (40 kg) | Max. 66 lb. (30 kg) | Max. 55 lb. (25 kg) | |||
| Core diameter (*1) | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |||||
| Printing/cutting width (*2) | Max. 63 in. (1,600 mm) | Max. 53 in. (1,346 mm) | Max. 29 in. (736 mm) | |||
| Ink | Type | TrueVIS INK 500 ml pouch | ||||
| Colors | Four colors (cyan, magenta, yellow, and black) | |||||
| Printing resolution (dots per inch) | Max. 1,200 dpi | |||||
| Cutting speed | 0.4 to 11.8 in/s (10 to 300 mm/s) | |||||
| Blade force (*3) | 30 to 500 gf | |||||
| Blade | Type | Roland CAMM-1 series blade | ||||
| Offset | 0.0 to 59.1 mil (0.000 to 1.500 mm) | |||||
| Software resolution (when cutting) | 0.98 mil/step (0.025 mm/step) | |||||
| Distance accuracy (when printing) (*4) (*5) | Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater |
|||||
| Distance accuracy (when cutting) (*4) | Error of less than ±0.4% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater When distance correction has been performed (when the setting for [CUTTING MENU] – [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled or ±3.9 mil (±0.1 mm), whichever is greater |
|||||
| Repeatability (when cutting) (*4) (*6) | ±3.9 mil (±0.1 mm) or less | |||||
| Alignment accuracy for printing and cutting (*4) (*7) | ±19.7 mil (±0.5 mm) or less | |||||
| Alignment accuracy for printing and cutting when reloading media (*4) (*8) | Error of less than ±0.5% of distance traveled, or ±0.2 in. (±3 mm), whichever is greater |
|||||
| Media heating system (*9) | Print heater set temperature: 86 to 112°F (30 to 45°C) Dryer set temperature: 30 to 50°C (86 to 122°F) |
|||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |||||
| Power-saving function | Automatic sleep feature | |||||
| Power requirements | AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz |
AC 100 to 120 V ±10%, 5.4 A, 50/60 Hz or AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz |
||||
| Power consumption | During operation | Approx. 1,090 W | Approx. 710 W | |||
| Sleep mode | Approx. 40 W | |||||
| Acoustic noise level | During operation | 63 dB (A) or less | ||||
| During standby | 53 dB (A) or less | |||||
| Dimensions (with stand) | 116 [W] × 28.8 [D] × 51.6 [H] in. (2,945 (W) × 730 (D) × 1,310 (H) mm) |
105.8 [W] × 28.8 [D] × 51.6 [H] in. (2,685 (W) × 730 (D) × 1,310 (H) mm) |
81.5 [W] × 28.8 [D] × 51.6 [H] in. (2,070 (W) × 730 (D) × 1,310 (H) mm) |
|||
| Weight (with stand) | 434 lb. (197 kg) | 397 lb. (180 kg) | 324 lb. (147 kg) | |||
| Environment | During operation | Temperature: 68 to 90°F (20 to 32°C), Humidity: 35 to 80%RH (no condensation) |
||||
| Not operating | Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80%RH (no condensation) |
|||||
| Included items | Dedicated stands, power cord, media clamps, media holders, replacement blade for separating knife, manuals, etc. |
|||||
