ROLAND LEF2-300D UV Flat Bed Printer
With the VersaUV LEF2 series you can print photos, graphics, and finely-detailed text with stunning quality.
Direct to object UV-led flatbed printers
From £162.36 + VAT per week
Spread your payments with our Leasing and Finance facilities.
- Description
- Specifications
Description

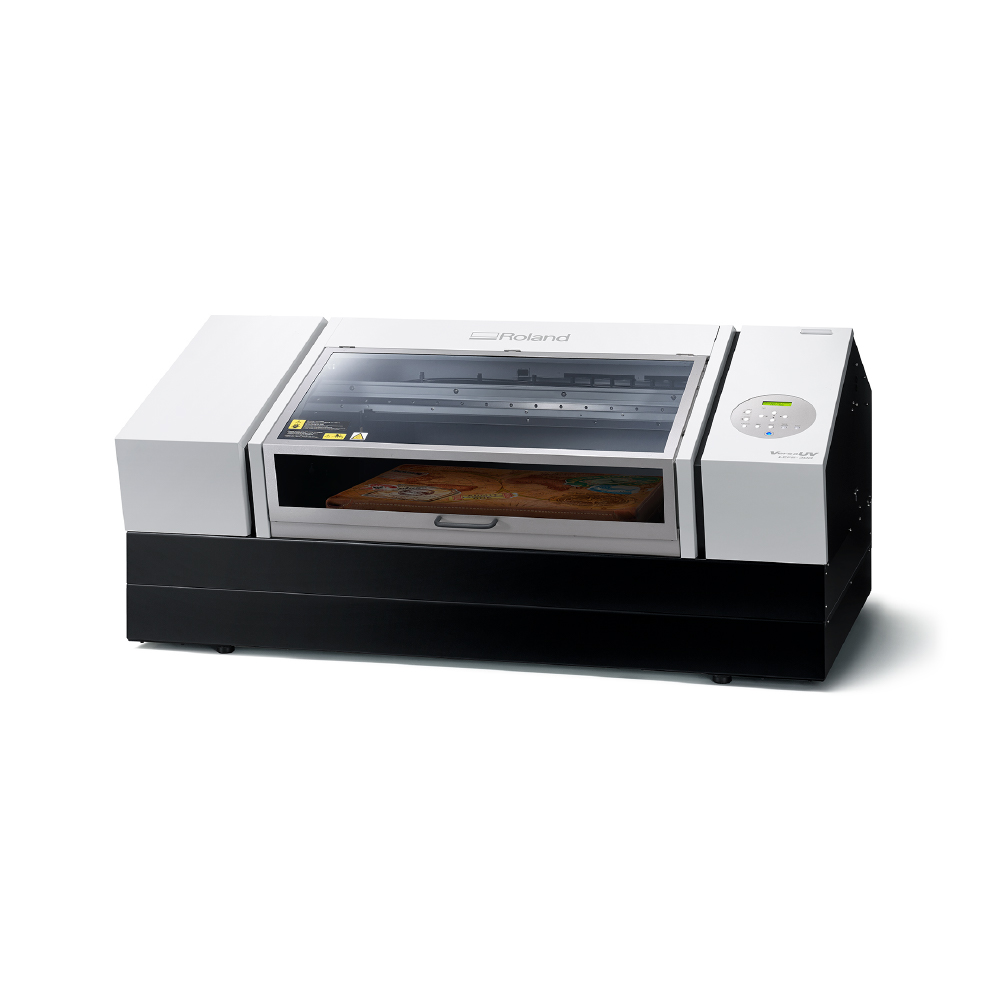

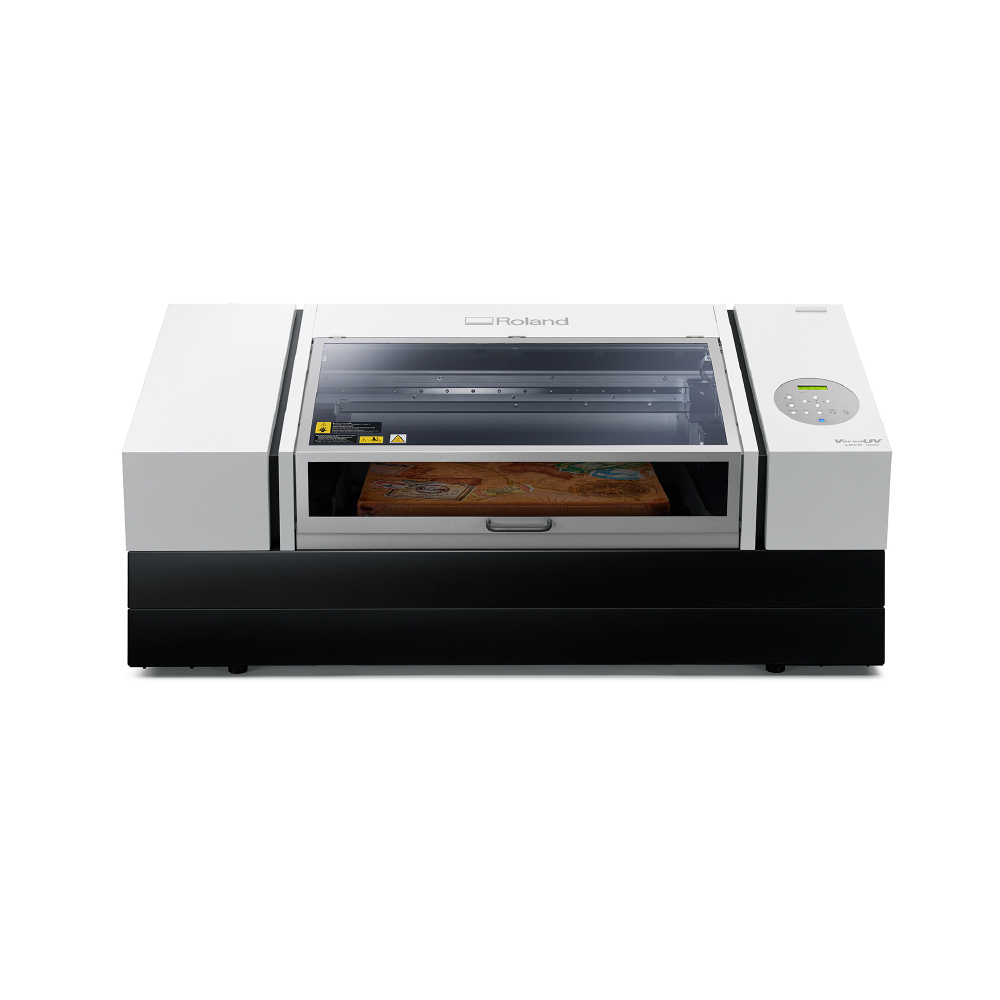

INTRODUCING THE LEF2-300D DIRECT TO OBJECT UV-LED FLATBED PRINTER
Your customers want something unique. Give them something extraordinary with the VersaUV LEF2 series: the latest generation of Roland’s award-winning benchtop UV printers. Simple to operate and packed with potential, the LEF2 series enables direct printing onto a huge range of materials and objects up to 200mm thick – producing stunning colour, realistic textures and stylish embossed effects.
LEF2-300D (770mm w x 330mm l) for higher volume customisation.
ADVANCED VERSATILE & PRODUCTIVE CUSTOMISATION
With the VersaUV LEF2 series you can print photos, graphics and finely-detailed text with stunning quality. Plus, create lifelike textures, simulated 3D embossing and Braille text, as well as gloss and matt finishes, on a huge range of substrates and objects. White ink is also available to print as a base layer, for vivid colours that pop on dark, coloured or clear media.
Fast, on-demand printing on one or many items
The Roland VersaUV LEF2 series really pushes the boundaries of what’s possible with print, adding value to off-the-shelf items by transforming them into unique, personalised pieces. Customise small and medium-sized items on demand by adding corporate branding and cool graphics – from a single object to longer production runs.

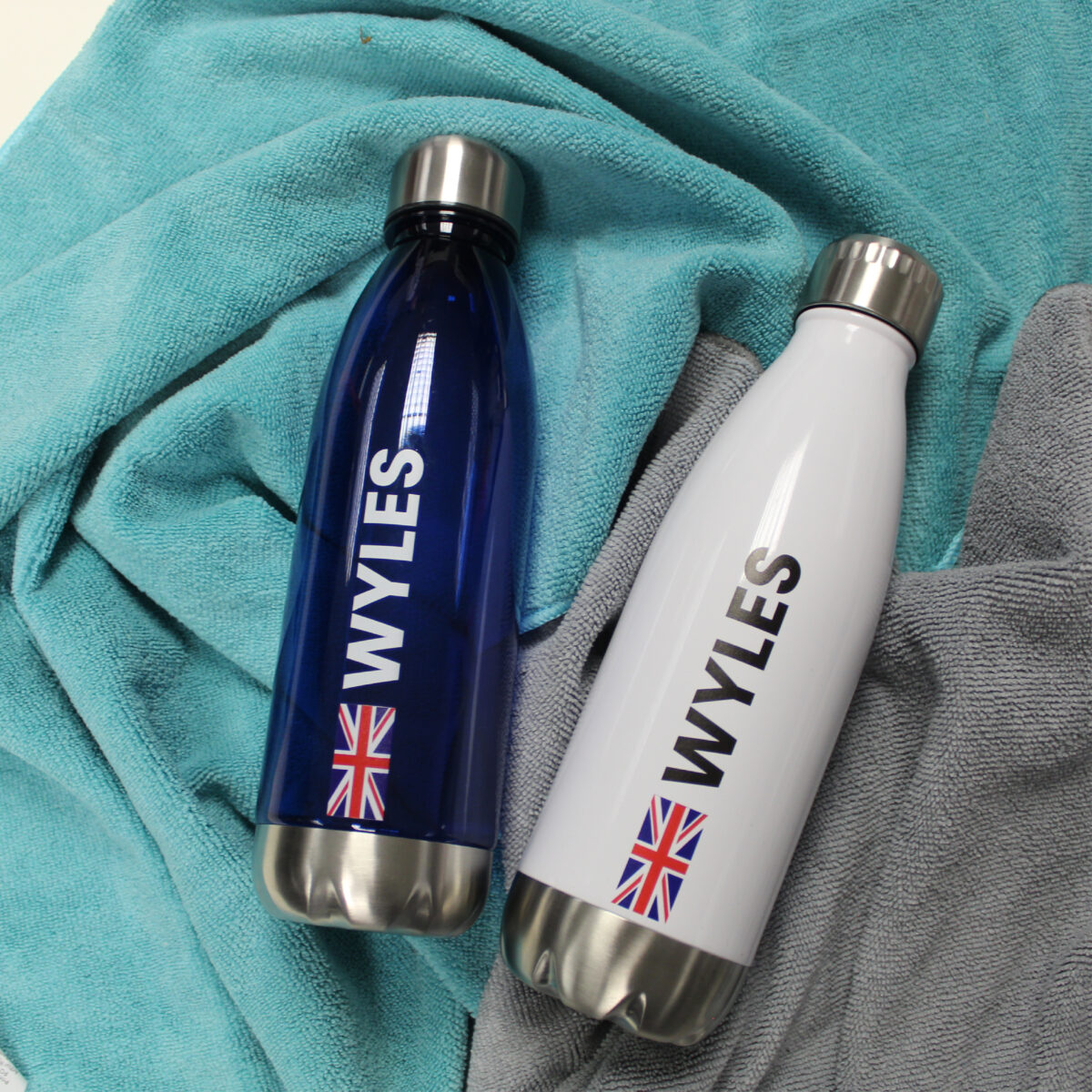

Personalise a huge range of profitable items such power banks, smartphone cases, laptop covers, promotional items, prototypes, souvenirs, pens, signs, personalised awards, giftware, cases, boxes, shoes, sneakers and so much more.
Long Lasting UV Lamps
The LEF2 series uses LED lamps for UV curing that last up to ten times longer than conventional UV lamps and can be instantly switched on or off, for true on-demand production without the typical warm-up time.
In addition, the LEF2 automatically enters a low-power mode when not in use for an extended period.
High Reliability and Safety
Remove any ink remaining on your printheads with the Head Refresher feature which cleans the printhead surface to maintain machine health and ink cost-efficiency.
Minimise downtime in the unlikely event of a printhead clogging – the new Nozzle Mask function allows you to continue printing while using half of the printhead.

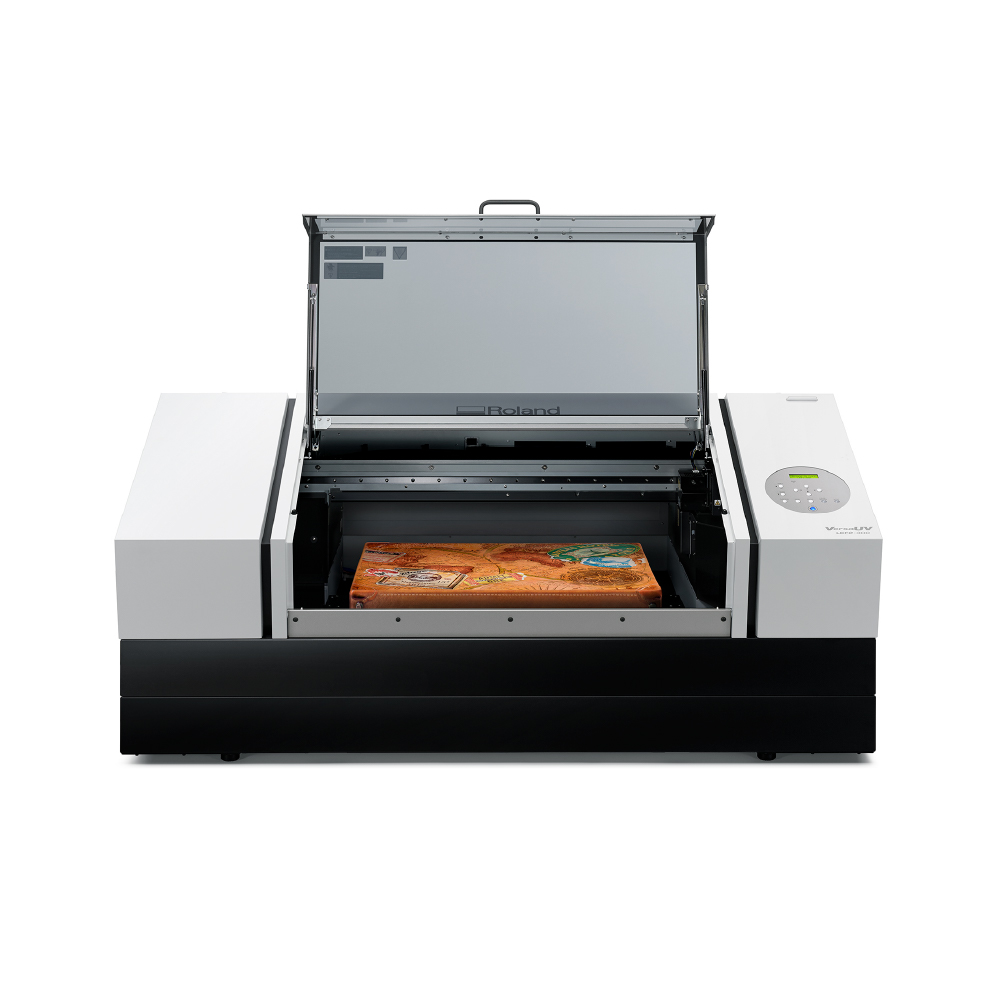

The airtight cover protects operators from UV light and prevents dust from settling onto the surface of materials while printing.
ECO-UV ink is certified GREENGUARD Gold for safe indoor graphic applications in even the most sensitive locations such as schools and hospitals, due to its low chemical emissions.
| Model | LEF2-300D | ||
| Printing method | Piezo ink-jet method | ||
| Media | Width | Max. 800 mm (31.5 in.) | |
| Length | Max. 360 mm (14.2 in.) | ||
| Thickness | Max. 200 mm (3.94 in.) | ||
| Weight | Max. 8 kg (18 lb.) | ||
| Printing width / length | Max. 770 (w) × 330 (l) mm (30.3 × 13 in.) | ||
| Ink | Type | ECO-UV (EUV4) 220 cc cartridge, ECO-UV (EUV4) 500 cc cartridge (White ink is not available in 500 cc cartridges.) | |
| Colours | Six colours (Cyan, Magenta, Yellow, Black, White and Gloss × 2) Six colours (Cyan, Magenta, Yellow, Black, White and Gloss) and Primer |
||
| Ink-curing unit | Built-in UV-LED lamp x 2 | ||
| Printing resolution | |||
| Distance accuracy * | ±0.3 mm (±11.8 mil) or ±0.3% of the speci?ed distance, whichever is greater | ||
| Position reproducibility * | ±0.2 mm (±7.9 mil) or ±0.1% of the speci?ed distance, whichever is greater | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC100 to 240 V ± 10%, 2.1 A, 50/60 Hz | ||
| Power consumption | During operation | Approx. 178 W | |
| Sleep mode | Approx. 18 W | ||
| Acoustic noise level | During operation | 60 dB (A) or less | |
| During standby | 49 dB (A) or less | ||
| Other dimensions | 1560 (W) × 955 (D) × 576 (H) mm (61.4 × 37.6 × 22.7 in.)[ When the ink cartridge tray is attached: 1866 × 955 × 576 mm (73.5 × 37.6 × 22.7 in.) ] | ||
| Weight | 144 kg (317.5 lb.) | ||
| Environment | During operation | Temperature: 20 to 32°C (68 to 90°F) (22°C (72°F) or higher recommended), Humidity: 35 to 80% RH (no condensation) | |
| Not operating | Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation) | ||
| Included items | VersaWorks 6 RIP software, power cable, cleaning liquid, drain bottle, manuals, etc. | ||
