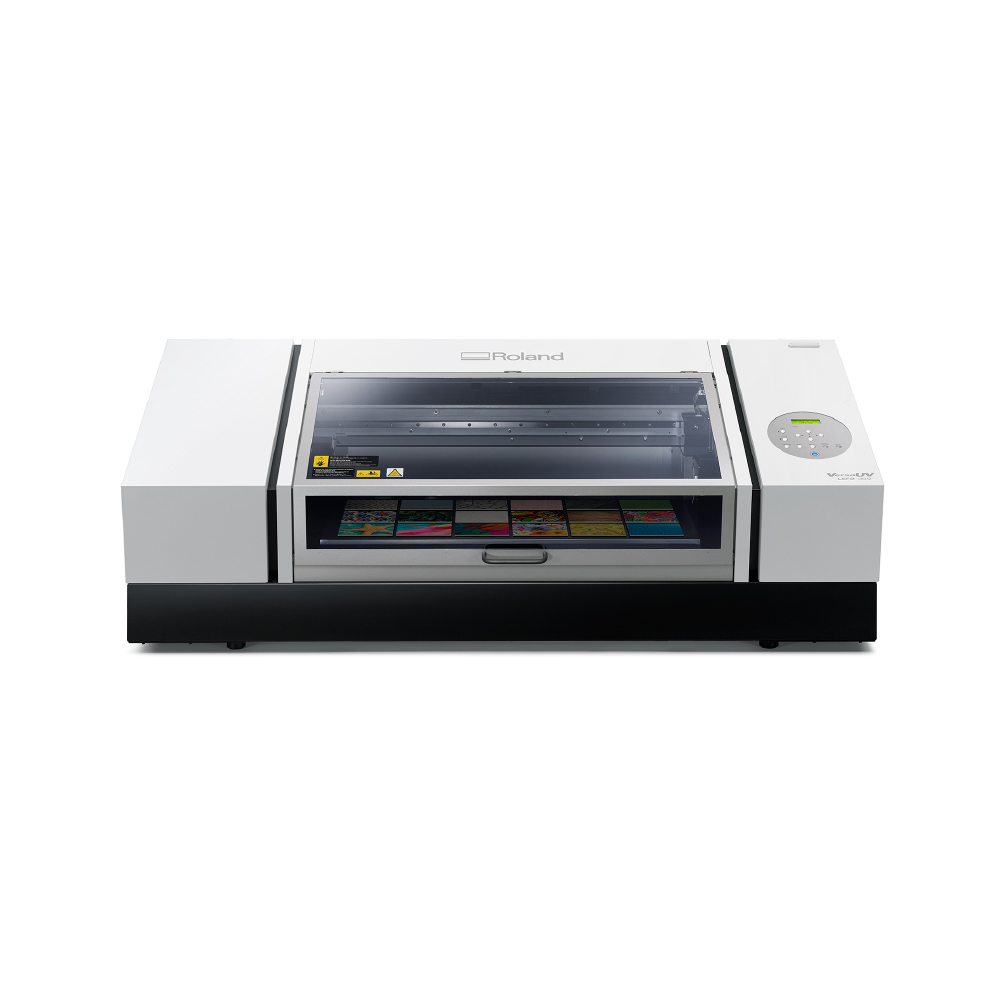

ROLAND LEF2-300 UV Flat Bed Printer

With the VersaUV LEF2 series you can print photos, graphics, and finely-detailed text with stunning quality.

Direct to object UV-led flatbed printers

From £152.52 + VAT per week

Spread your payments with our Leasing and Finance facilities.

    Thank you for requesting this brochure

    Please email me the brochure and specifications to:

    Would you prefer to discuss your requirements with one of our product specialists? Call now: 02392 590281

    Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

    Forever transfers papers are only suitable for use with LASER PRINTERS.

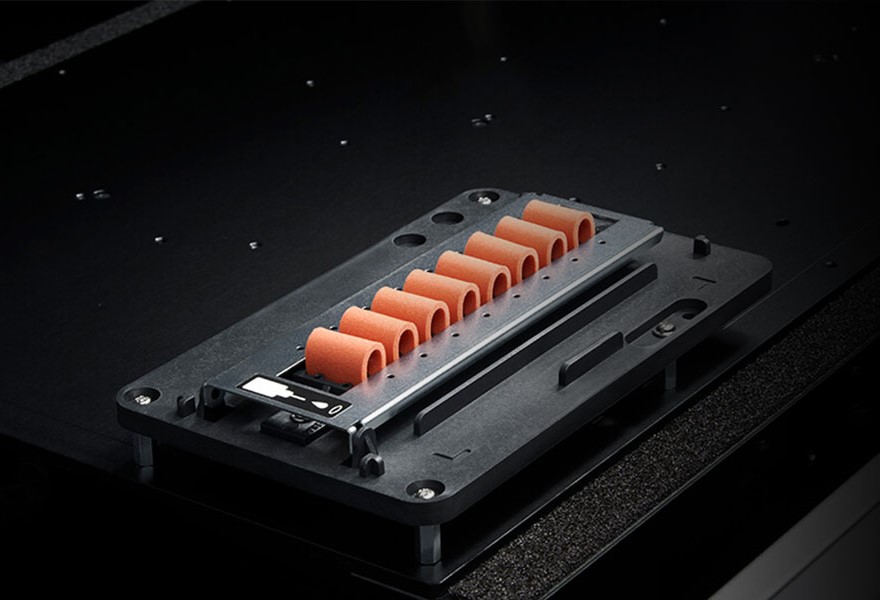

    Flatbed Jigs


    Your customers want something unique. Give them something extraordinary with the VersaUV LEF2 series: the latest generation of Roland’s award-winning benchtop UV printers. Simple to operate and packed with potential, the LEF2 series enables direct printing onto a huge range of materials and objects up to 100mm thick – producing stunning colour, realistic textures and stylish embossed effects.

    LEF2-300 (770mm w x 330mm l) for higher volume customisation.


    With the VersaUV LEF2 series you can print photos, graphics and finely-detailed text with stunning quality. Plus, create lifelike textures, simulated 3D embossing and Braille text, as well as gloss and matt finishes, on a huge range of substrates and objects. White ink is also available to print as a base layer, for vivid colours that pop on dark, coloured or clear media.

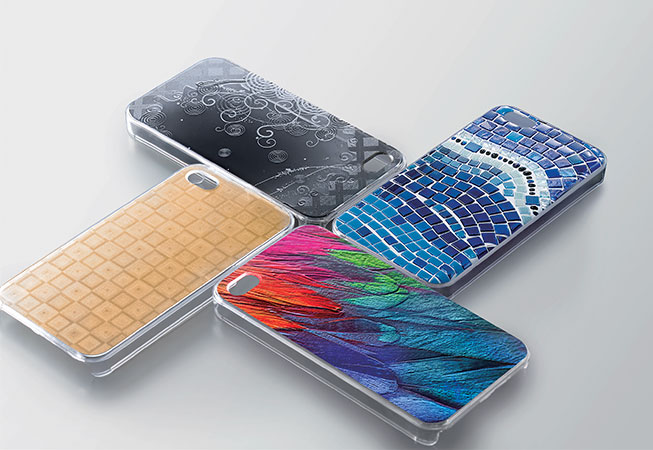

    Four phone cases with different textural prints on grey background printed with Roland Versa UV Lef-2 Series Printers

    Fast, on-demand printing on one or many items

    The Roland VersaUV LEF2 series really pushes the boundaries of what’s possible with print, adding value to off-the-shelf items by transforming them into unique, personalised pieces. Customise small and medium-sized items on demand by adding corporate branding and cool graphics – from a single object to longer production runs.

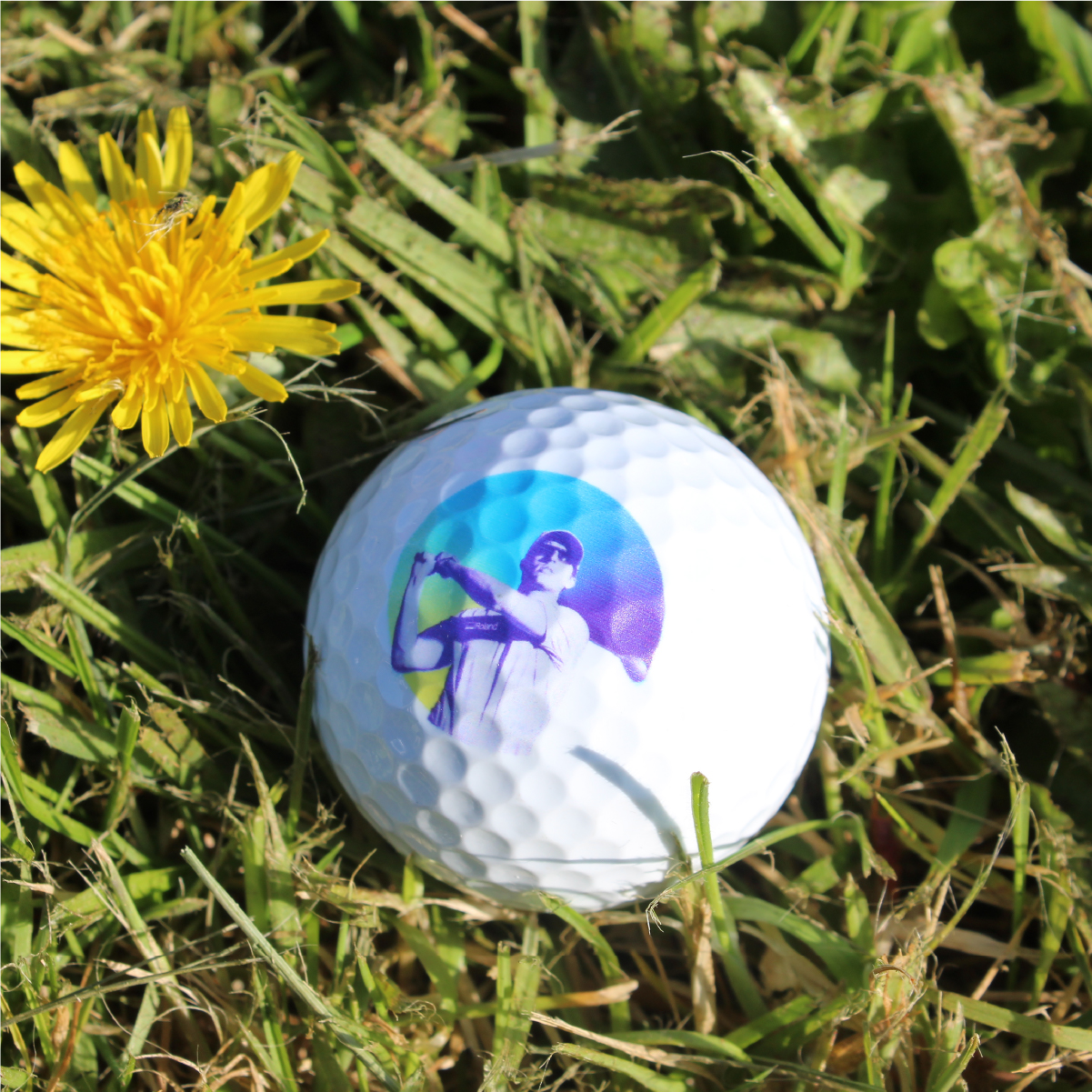

    Personalise a huge range of profitable items such power banks, smartphone cases, laptop covers, promotional items, prototypes, souvenirs, pens, signs, personalised awards, giftware, cases, boxes, shoes, sneakers and so much more.

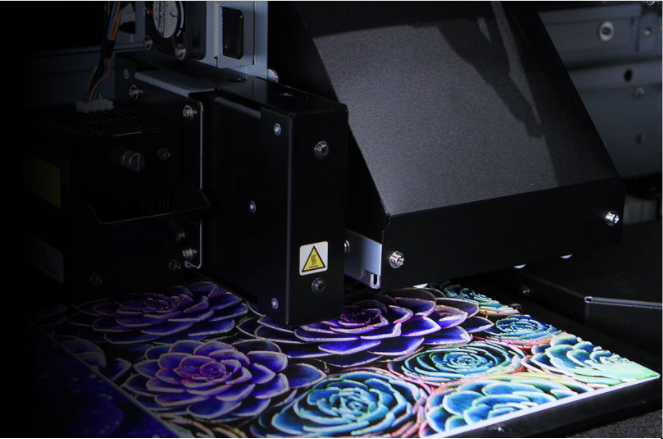

    Long Lasting UV Lamps

    The LEF2 series uses LED lamps for UV curing that last up to ten times longer than conventional UV lamps and can be instantly switched on or off, for true on-demand production without the typical warm-up time.

    In addition, the LEF2 automatically enters a low-power mode when not in use for an extended period.

    Roland Versa UV Flat Bed Printer printing flower design
    Roland Versa UV LEF2-200 UV Flat Bed Printer Close up

    High Reliability and Safety

    Remove any ink remaining on your printheads with the Head Refresher feature which cleans the printhead surface to maintain machine health and ink cost-efficiency.

    Minimise downtime in the unlikely event of a printhead clogging – the new Nozzle Mask function allows you to continue printing while using half of the printhead.

    The airtight cover protects operators from UV light and prevents dust from settling onto the surface of materials while printing.

    ECO-UV ink is certified GREENGUARD Gold for safe indoor graphic applications in even the most sensitive locations such as schools and hospitals, due to its low chemical emissions.

    Model LEF2-300
    Printing method Piezo ink-jet method
    Media Width Max. 800 mm (31.5 in.)
    Length Max. 360 mm (14.2 in.)
    Thickness Max. 100 mm (3.94 in.)
    Weight Max. 8 kg (18 lb.)
    Printing width / length Max. 770 (w) × 330 (l) mm (30.3 × 13 in.)
    Ink Type ECO-UV (EUV4) 220 cc cartridge, ECO-UV (EUV4) 500 cc cartridge (White ink is not available in 500 cc cartridges.)
    Colours Six colours (Cyan, Magenta, Yellow, Black, White and Gloss × 2)
    Six colours (Cyan, Magenta, Yellow, Black, White and Gloss) and Primer
    Ink-curing unit Built-in UV-LED lamp x 2
    Printing resolution
    Distance accuracy * ±0.3 mm (±11.8 mil) or ±0.3% of the speci?ed distance, whichever is greater
    Position reproducibility * ±0.2 mm (±7.9 mil) or ±0.1% of the speci?ed distance, whichever is greater
    Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching
    Power-saving function Automatic sleep feature
    Power requirements AC100 to 240 V ± 10%, 2.1 A, 50/60 Hz
    Power consumption During operation Approx. 178 W
    Sleep mode Approx. 18 W
    Acoustic noise level During operation 60 dB (A) or less
    During standby 49 dB (A) or less
    Other dimensions 1560 (W) × 955 (D) × 576 (H) mm (61.4 × 37.6 × 22.7 in.)[ When the ink cartridge tray is attached: 1866 × 955 × 576 mm (73.5 × 37.6 × 22.7 in.) ]
    Weight 144 kg (317.5 lb.)
    Environment During operation Temperature: 20 to 32°C (68 to 90°F) (22°C (72°F) or higher recommended), Humidity: 35 to 80% RH (no condensation)
    Not operating Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
    Included items VersaWorks 6 RIP software, power cable, cleaning liquid, drain bottle, manuals, etc.
