LEF2-200 UV Flat Bed Printer

With the VersaUV LEF2 series you can print photos, graphics, and finely-detailed text with stunning quality.

Direct to object UV-led flatbed printers

From £19,999+VAT

Spread your payments with our Leasing and Finance facilities.

Leasing from £113.15 per week +VAT

Download Brochure

Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

Forever transfers papers are only suitable for use with LASER PRINTERS.

Description

Flatbed Jigs

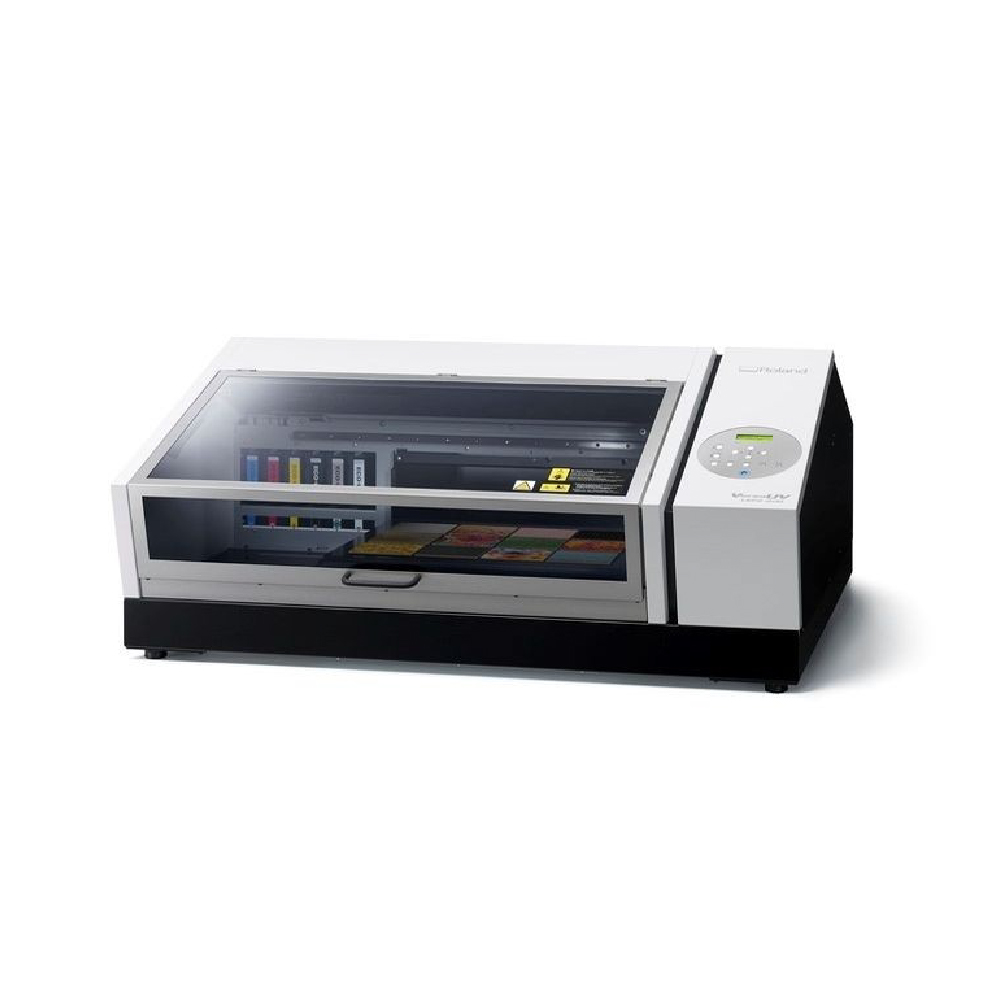

INTRODUCING THE LEF2-200 DIRECT TO OBJECT UV-LED FLATBED PRINTER

Your customers want something unique. Give them something extraordinary with the VersaUV LEF2 series: the latest generation of Roland’s award-winning benchtop UV printers. Simple to operate and packed with potential, the LEF2 series enables direct printing onto a huge range of materials and objects up to 100mm thick – producing stunning colour, realistic textures, and stylish embossed effects.

LEF2-200 (508mm w x 330mm l) for versatile product personalisation.

ADVANCED VERSATILE & PRODUCTIVE CUSTOMISATION

With the VersaUV LEF2 series you can print photos, graphics, and finely-detailed text with stunning quality. Plus, create lifelike textures, simulated 3D embossing, and Braille text, as well as gloss and matt finishes, on a huge range of substrates and objects. White ink is also available to print as a base layer, for vivid colours that pop on dark, coloured, or clear media.

Clear House Address Plaque on wall with Corporate Logo printed using Roland Versa UV LEF-2 Series Printer

Fast, on-demand printing on one or many items

The Roland VersaUV LEF2 series really pushes the boundaries of what’s possible with print, adding value to off-the-shelf items by transforming them into unique, personalised pieces. Customise small and medium-sized items on-demand by adding corporate branding and cool graphics – from a single object to longer production runs.

Long Lasting UV Lamps

The LEF2 series uses LED lamps for UV curing that last up to ten times longer than conventional UV lamps and can be instantly switched on or off, for true on-demand production without the typical warm-up time.

In addition, the LEF2 automatically enters a low-power mode when not in use for an extended period.

Roland Versa UV Flat Bed Printer printing flower design

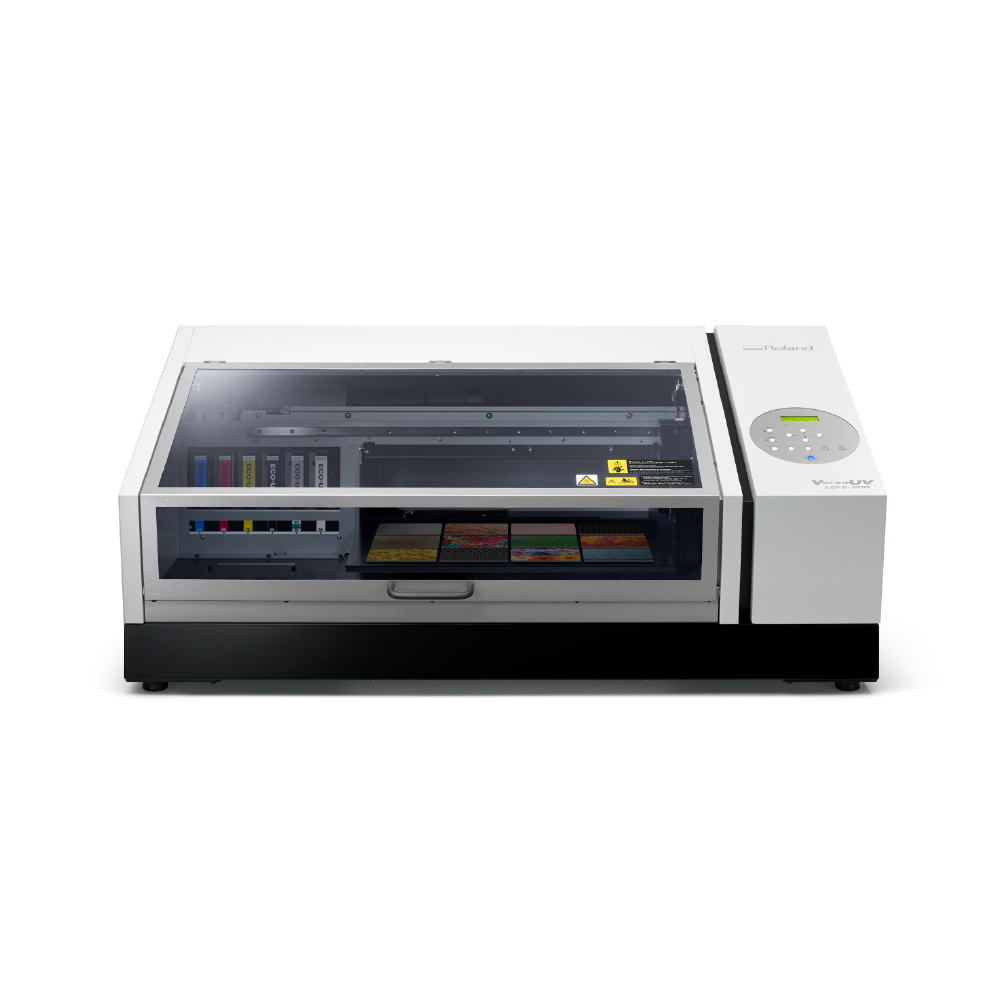

Roland Versa UV LEF2-200 UV Flat Bed Printer Close up

High Reliability and Safety

Remove any ink remaining on your printheads with the Head Refresher feature which cleans the printhead surface to maintain machine health and ink cost-efficiency.

Minimise downtime in the unlikely event of a printhead clogging – the new Nozzle Mask function allows you to continue printing while using half of the printhead.

The airtight cover protects operators from UV light and prevents dust from settling onto the surface of materials while printing.

ECO-UV ink is certified GREENGUARD Gold for safe indoor graphic applications in even the most sensitive locations such as schools and hospitals, due to its low chemical emissions.

ModelLEF2-200
Printing methodPiezo ink-jet method
MediaWidthMax. 538 mm (21.2 in.)
LengthMax. 360 mm (14.2 in.)
ThicknessMax. 100 mm (3.94 in.)
WeightMax. 5 kg (11 lb.)
Printing width / lengthMax. 508 (w) × 330 (l) mm (20 × 13 in.)
InkTypeECO-UV (EUV, EUV4) 220 cc cartridge
ColoursFive colours (Cyan, Magenta, Yellow, Black and White x 2)
Five colours (Cyan, Magenta, Yellow, Black and White) and Primer
Six colours (Cyan, Magenta, Yellow, Black, White and Gloss)
Ink-curing unitBuilt-in UV-LED lamp
Printing resolutionMax. 1440 dpi
Distance accuracy *±0.3% of distance travelled or ±0.3 mm (±11.8 mil), whichever is greater
Position reproducibility *
ConnectivityEthernet (10BASE-T/100BASE-TX, automatic switching
Power-saving functionAutomatic sleep feature
Power requirementsAC100 to 240 V ± 10%, 1.8 A, 50/60 Hz
Power consumptionDuring operationApprox. 149 W
Sleep modeApprox. 13 W
Acoustic noise levelDuring operation60 dB (A) or less
During standby49 dB (A) or less
Other dimensions1202 (W) × 962 (D) × 549 (H) mm (47.3 × 37.9 × 21.6 in.)
Weight110 kg (242.5 lb.)
EnvironmentDuring operationTemperature: 20 to 32°C (68 to 90°F) (22°C (72°F) or higher recommended), Humidity: 35 to 80% RH (no condensation)
Not operatingTemperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80% RH (no condensation)
Included itemsVersaWorks 6 RIP software, power cable, cleaning liquid, drain bottle, manuals, etc.
