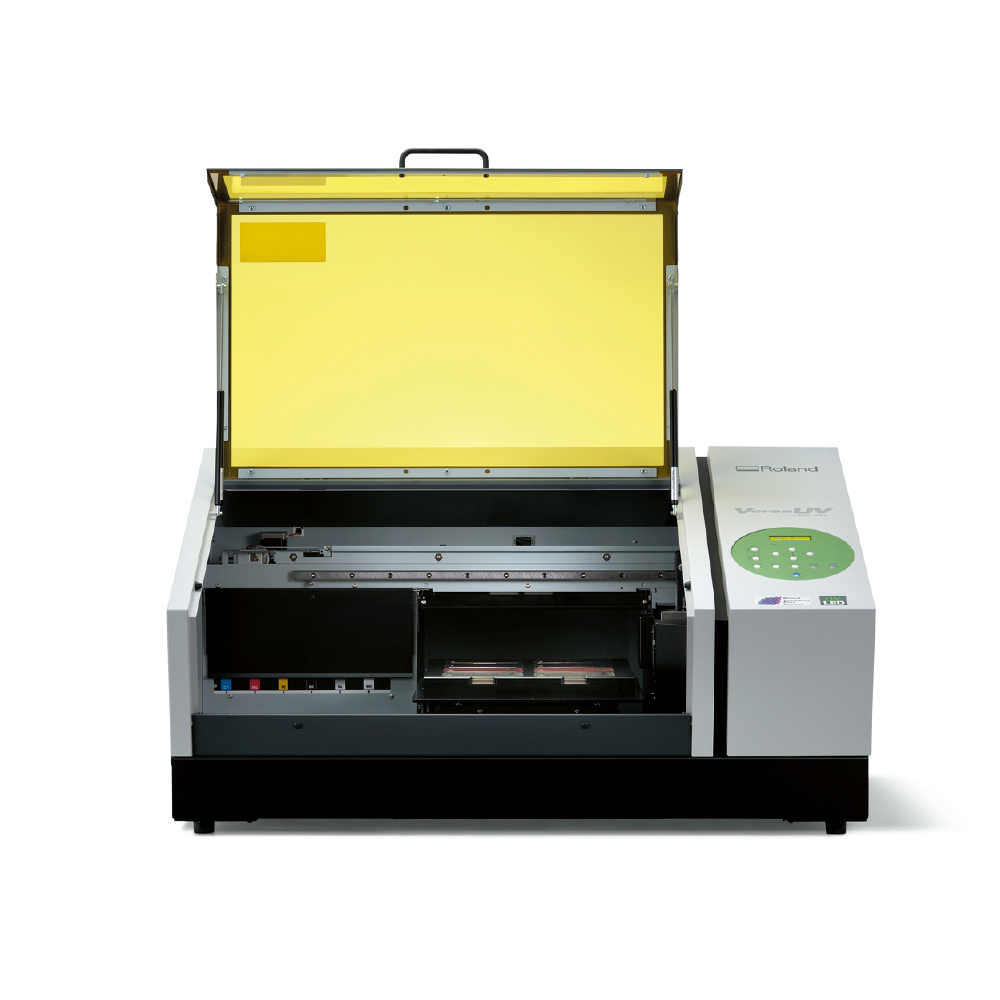

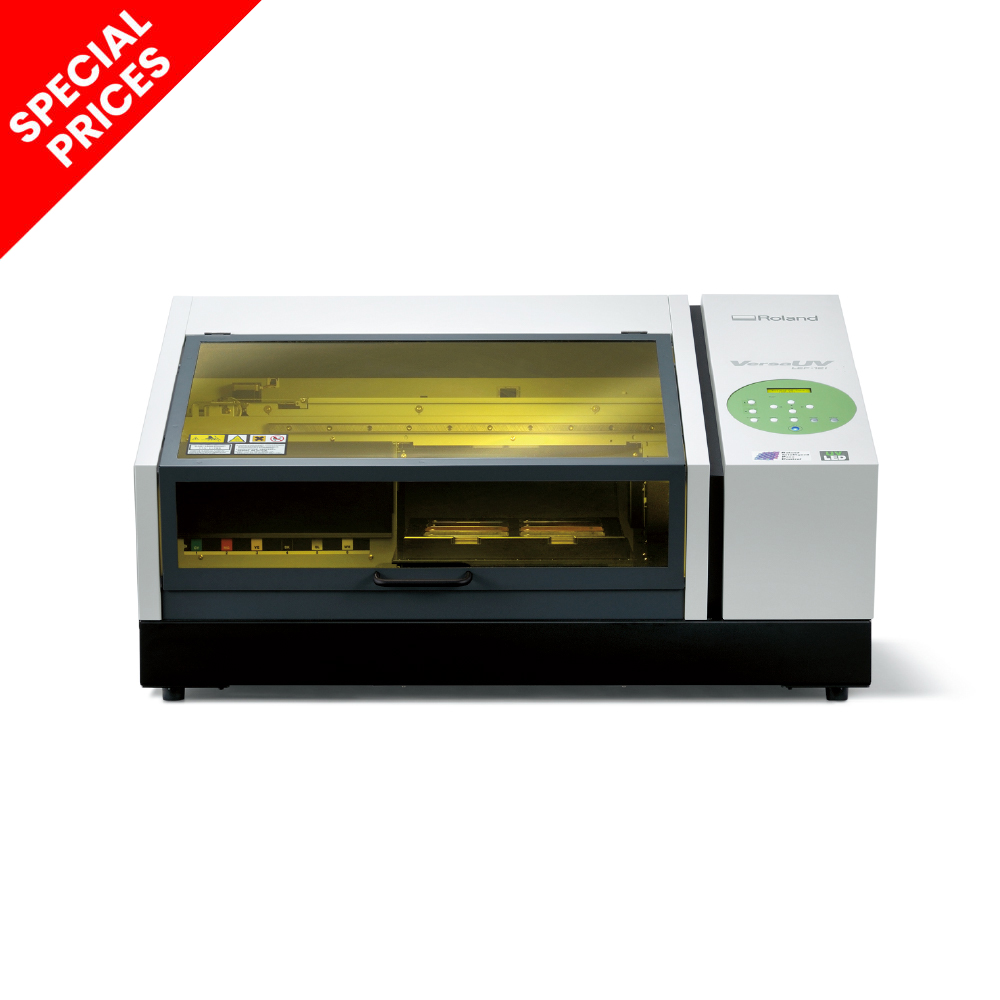

LEF-12i UV Flat Bed Printer

The VersaUV LEF-12i is an affordable solution for businesses wanting to get started in the fast-growing market for personalised print and bespoke goods and services. Small enough to fit into any studio, office, workshop, or retail environment, the LEF-12i is a compact device that prints directly onto a huge range of items and substrates.

From £12,999+VAT

Spread your payments with our Leasing and Finance facilities.

Leasing from £76.25 per week +VAT

Download Brochure

Notice: Most inks, toners and consumables have expiry dates, please bear this in mind if ordering in bulk!

Forever transfers papers are only suitable for use with LASER PRINTERS.

Description

Flatbed Jigs

The Wonder of ECO-UV Ink

Available in CMYK, White, and Gloss.



ECO-UV ink offers the following benefits:

  • Clean and efficient 220 cc cartridges
  • Instantly dries to produce mess-free, wide colour gamut results
  • Ink prints around curves and irregular surfaces without cracking*
  • Produces durable indoor graphics with scratch and chemical resistance
  • Outdoor graphics last from six months to two years when Gloss coat is applied
  • High reliability maximal system up time
  • Skips non-printing areas for higher efficiency
  • 12 months end-to-end warranty

Proper ventilation is required during UV production. An optional BOFA Air Filtration Unit for use with the LEF-12i is available and doubles as a stand and storage unit for jigs, fixtures, and supplies.

Big and Small Promotional Products

With the ability to print CMYK, White and Gloss inks directly around the curves and contours of three-dimensional objects, both large and small.* The LEF-12i is ideally suited for personalising pens, golf balls, key chains and other promotional items. Variable data printing allows you to individualise each item with names, photos and other custom design elements.

Giftware with Style and Texture

Everything from wedding gifts to delicate pottery and even leather items such as belts and purses are no problem for the LEF-12i. Print directly onto small jewellery products or large items and add luxurious finishes and textures with layers of Gloss ink which can be cured in two ways to give a matt or gloss finish.

Glass and Other Trophy Personalisation

Add full colour to glass awards and wooden plaques, making colours pop with White ink. Add an extra special touch with elegantly embossed effects using Gloss ink.

Product Design, Packaging and Parts

Produce production-standard graphics for sports gear, control panels and more. Variable data printing also allows for individual serial number printing.

Specialised Signs and Larger Items

Don’t hold back your imagination. Let the LEF-12i take your creativity to new heights. Print on delicately crafted wood signs, game pieces, or clocks…the possibilities are virtually endless!

Roland LEF-12I UV Flat Bed Printer Applications Grid

Customise Hundreds of Products

Using a state-of-the-art UV-LED lamp, the LEF-12i is a low-heat, cool-running machine that combines with vibrant ECO-UV inks to print on a range of materials.

ModelLEF-12i
Printing technologyPiezoelectric inkjet
MediaWidthMax. 335 mm (13.2 in.)
LengthMax. 310 mm (12.2 in.)
HeightMax. 100 mm (3.94 in.)
WeightMax. 5 kg (11 lb.)
Printing widthMax. 305 mm (12 in.)
Printing lengthMax. 280 mm (11 in.)
InkTypeECO-UV (EUV, EUV4) 220 cc cartridge
Colours6 colours (Cyan, Magenta, Yellow, Black, White, Gloss)
Ink-curing unitUV-LED lamp
Print resolution (dots per inch)Max. 1440 dpi
Distance accuracy*1Error of less than ±0.3% of distance travelled, or ±0.3 mm (±11.8 mil), whichever is greater
ConnectivityEthernet (10Base-T/100Base-TX, automatic switching)
Power-saving functionAutomatic sleep feature
Power requirementsAC 100 to 240 V ±10%, 1.8 A, 50/60 Hz
Power consumptionDuring operationApprox. 156 W
Sleep modeApprox. 16.7 W
Acoustic noise levelDuring operation60 dB (A) or less
During standby49 dB (A) or less
Dimensions999 (W) x 862 (D) x 549 (H) mm (39.3 x 33.9 x 21.7 in.)
Weight85 kg (187.4 lb)
EnvironmentPower on*2Temperature: 20 to 32°C (68 to 90°F)  (22°C/72°F or higher recommended)
Humidity: 35 to 80% RH (no condensation)
Power offTemperature: 5 to 40°C (41 to 104°F)
Humidity: 20 to 80% RH (no condensation)
Included itemsRoland VersaWorks 6 RIP Software, User’s Manual, adhesive sheet, power cable etc.
