Graphtec CE7000-40 Vinyl Cutter
Graphtec’s CE7000-40 vinyl cutter provides cutting performance that guarantees accurate 5m length cutting, enhanced performance, Adobe Illustrator Crop marks supported and a user-friendly control panel makes this vinyl cutting machine a key tool to take your business to the next level.
Perfect for cutting vinyl in various cutting styles.
Vinyl T-shirt Printing Tutorial
Introduction to Vinyl Printing
Graphtec’s CE7000-40 Vinyl Cutter provides a 484mm (19inch) width with a 375mm x 50m max cutting area.

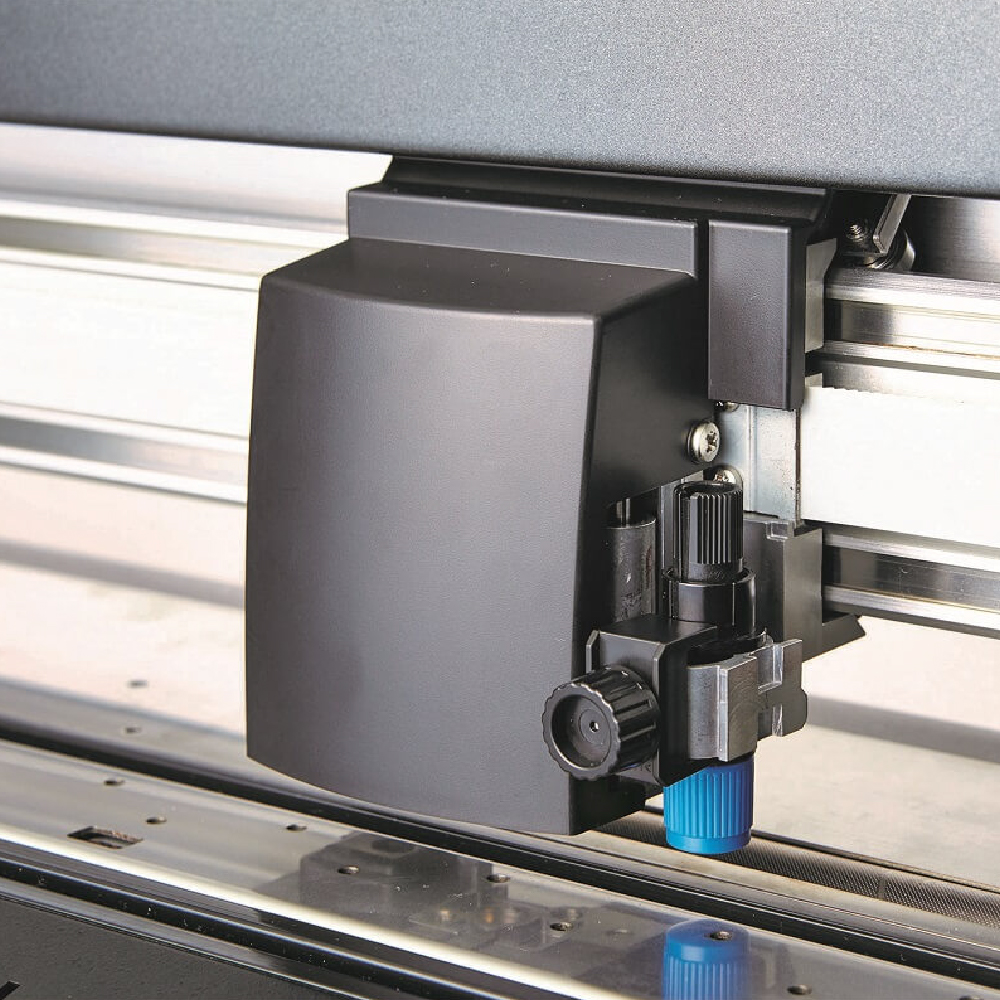

Max. cutting force 4.41N (450gf) and Max. cutting speed 1000mm/s
With a maximum cutting force of 4.41N (450gf) and a maximum cutting speed of 1000 mm/s

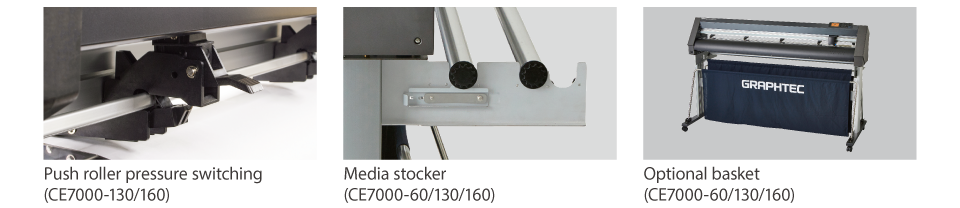

The media stocker helps stabilize the feeding of media.

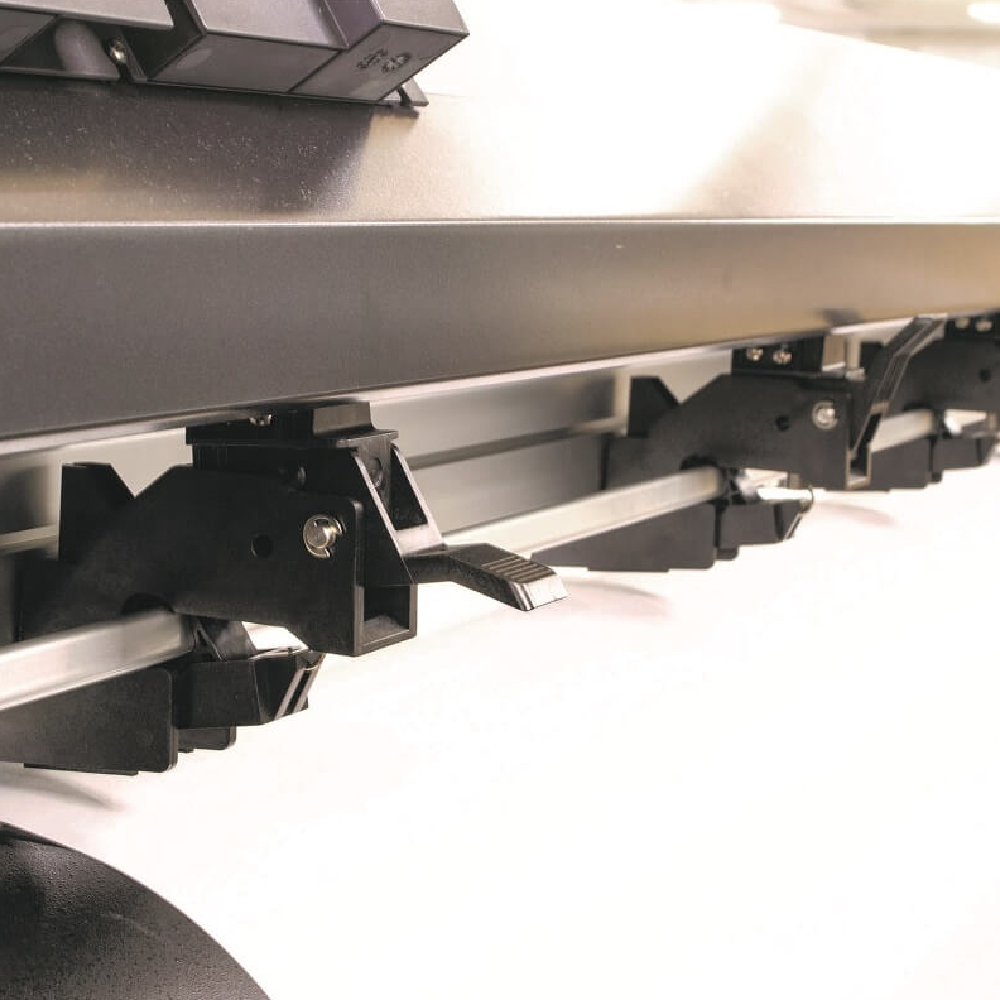

By adjusting the pressure of the middle push roller to the media on three levels, it prevents media floating.
In addition, by using an optional special basket, stability in long cuts can be achieved.
(*1), it enables you to cut various media, whilst providing high productivity.
(*1) CE7000-130 / CE7000-160
(*2) In case that using optional baskets of CE7000-60/130/160 and cutting media and conditions specified by Graphtec.
Cutting performance that guarantees accurate 5m length cutting. (*2)
Data output via USB flash memory without PC
When cutting data designed with Cutting Master 4 or Graphtec Pro Studio / Plus are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.
* The USB memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.
User-friendly control panel

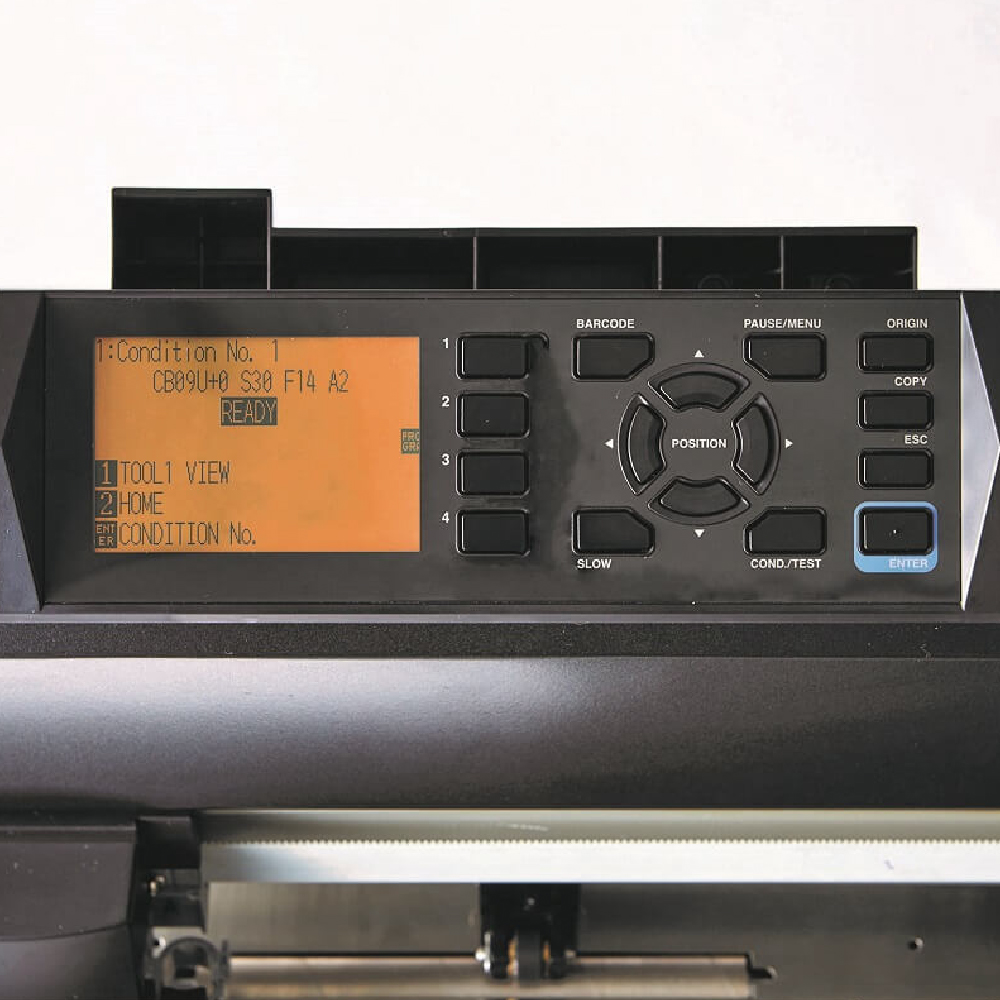

3.7 inch LCD display and easy-to-use control panel support’s 10 languages.
Improved ARMS for high precision cutting (ARMS 8.0)
The Advanced Registration Mark Sensing system delivers precise Print & Cut results by using sensors to detect registration marks and perform axis alignment. Countless efficiency-boosting features improve productivity for Print & Cut applications such as stickers and decals.
Data Link Function
(Barcode Data Management/Continuous Cutting)
By reading the Graphtec original Barcode, CE7000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.
* The USB flash memory format only supports FAT32.
Please note that NTFS and exFAT are not supported.
(Data Link function)
Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.
Supports coloured marks/speciality media
A wide variety of media types including holographic paper and reflective sheets are now compatible due to improvements of the ARMS sensor algorithm.
* Sensor may not be able to read certain combinations of speciality media and coloured marks.
* This photo is an image of FC9000.
Supports Adobe Illustrator “Crop Marks”
Using the plug-in software Cutting Master 4, Adobe Illustrator crop marks will be available.
Expanded Cutting Area
The expanded cutting area to include objects outside of the area enclosed by registration marks. Production efficiency is enhanced by reducing media waste.
(Not available in US & Korea)
|Configuration||Grit rolling type|
|Drive method||Digital servo drive|
|Max. cutting area (W x L) (*1)||375ｍｍ × 50ｍ||603ｍｍ × 50ｍ||1270ｍｍ × 50ｍ||1524ｍｍ × 50ｍ|
|Cutting area of guaranteed accuracy (*1)|
(When using optional basket)
|355ｍｍ × 2ｍ||583ｍｍ × 2m|
(583ｍｍ × 5ｍ)
|1250ｍｍ × 2m|
(1250ｍｍ × 5ｍ)
|1504ｍｍ × 2m|
(1504ｍｍ × 5ｍ)
|Mountable media width||Min.||50mm|
|Max.||484ｍｍ (19inch)||712mm (28inch)||1372mm (54inch)||1626mm (64inch)|
|Mountable roll media mass||5 kg||9 kg||17 kg||20 kg|
|Number of push rollers||2 rollers||4 rollers (Max. 5 (option))|
|Max. cutting speed||600mm/s|
at all direction
at 45° direction
|1000mm/s at 45° direction|
|Acceleration||21.2ｍ/s2 at 45° direction||13.9m/s2 at 45° direction|
|Cutting force||Max. 4.41N (450gf)|
|Minimum character size||Approx. 5 mm alphanumeric (varies depending on character font and media)|
|Programmable resolution||GP-GL：0.1/0.05/0.025/0.01ｍｍ HP-GL™ (*2)：0.025ｍｍ|
|Repeatability (*1)||Max. 0.1 mm in plot up to 2 m (Excluding media expansion and contraction)|
|Mountable number of tools||1 tool|
|Pen types||Oil-based ballpoint pen, Water-based fiber-tip pen|
|Media types||Up to 0.25mm thickness|
Marking film (PVC / fluorescence / reflection), polyester film (With specified conditions)
|Interface||USB 2.0 (Full Speed), Ethernet 10BASE-T/100BASE-TX|
|Command sets||GP-GL / HP-GL™ (Set by command or auto-detect) (*2)|
|Display||Graphic type LCD with back-light (240dots x 128dots), supports 10 languages|
|Power source||100V to 240V AC, 200V to 240V AC, 50 / 60 Hz|
|Power consumption||Up to 100W|
|Operating environment||10 to 35 ºC, 35 to 75 % R.H. (non-condensing)|
|Guaranteed accuracy environment||16 to 32 ºC, 35 to 70 % R.H. (non-condensing)|
|External dimensions (approx. W x D x H)|
|772ｘ292ｘ313 mm||1005×582×1092 mm|
|Compatible OS (*4)||Windows 10/8.1/7|
Mac OS X 10.6 ～ 10.11 / macOS 10.12 ～ 10.15 (Graphtec Studio: 10.6 – 10.15, Cutting Master 4: 10.7 – 10.15)
|Graphtec Pro Studio(Windows)(*5), Graphtec Studio(Mac), Cutting Master 4(*5), Windows Driver|
